Buy Marmitek AV Converter Connect DA21 [Toslink, RCA Digital - RCA]

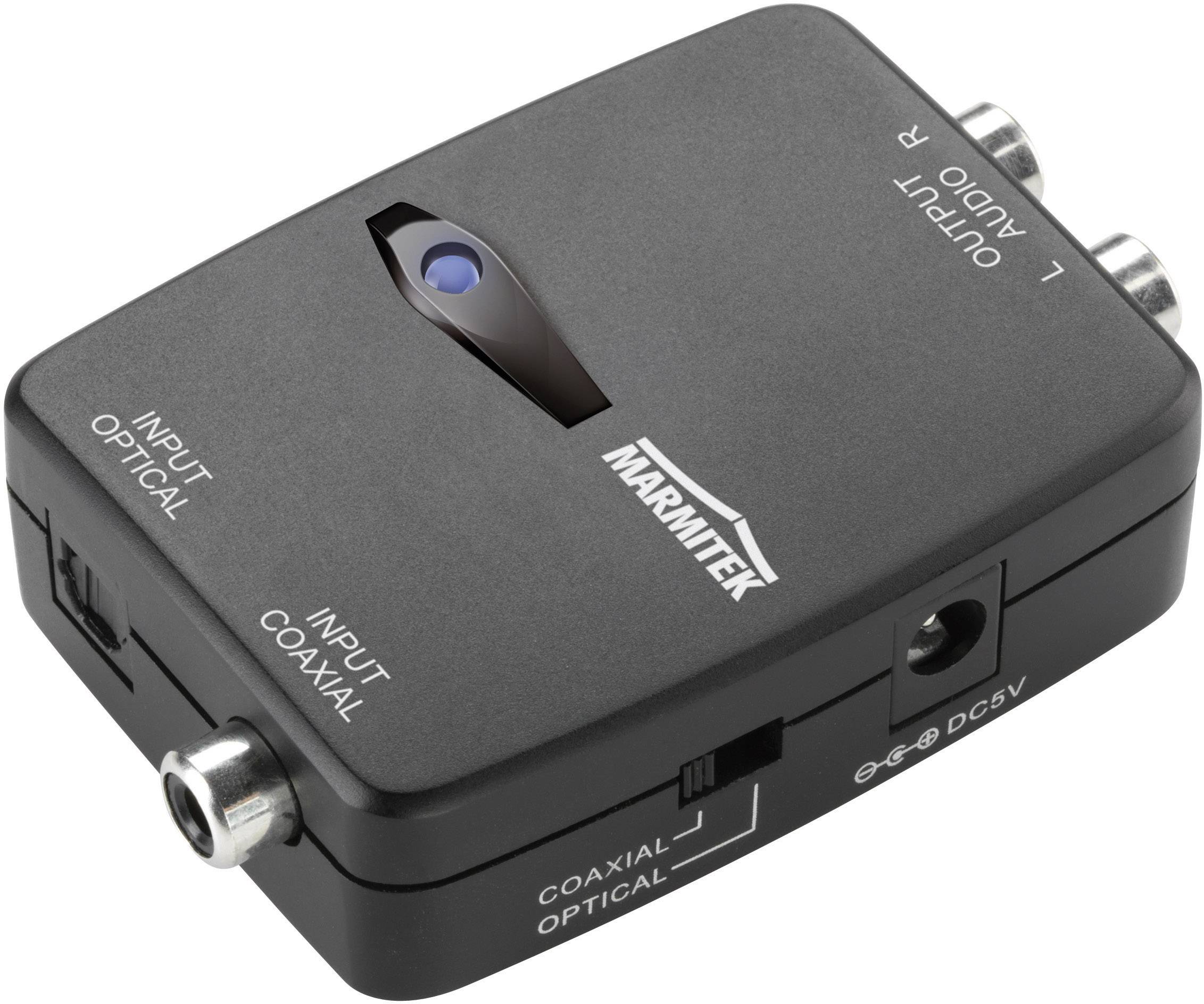

'Audio converter by Marmitek with inputs for optical and coaxial signals and outputs for left and right audio channels.'

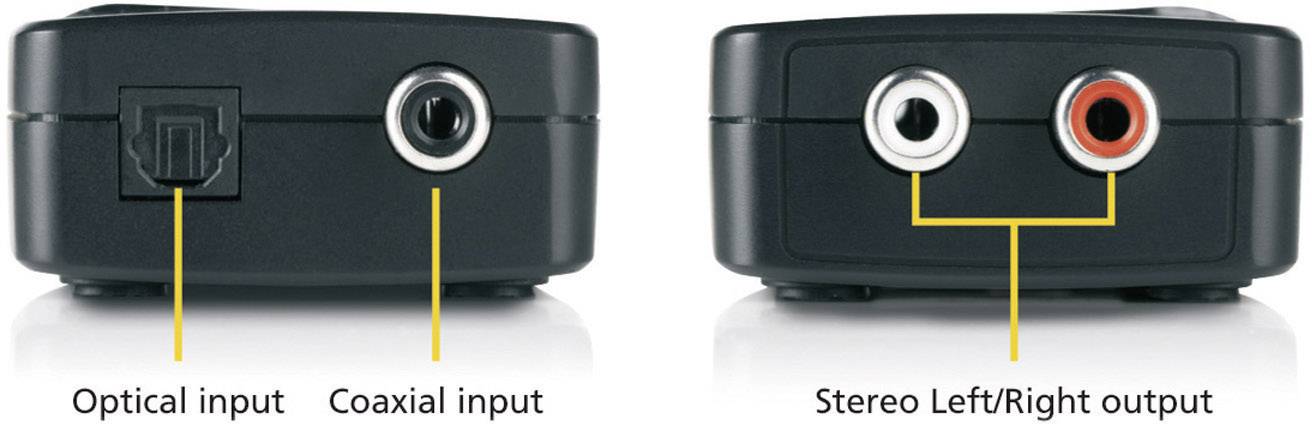

Device with connections: on the left, optical input; on the right, coaxial input. On the right: stereo output with red socket on the left and white socket on the right.

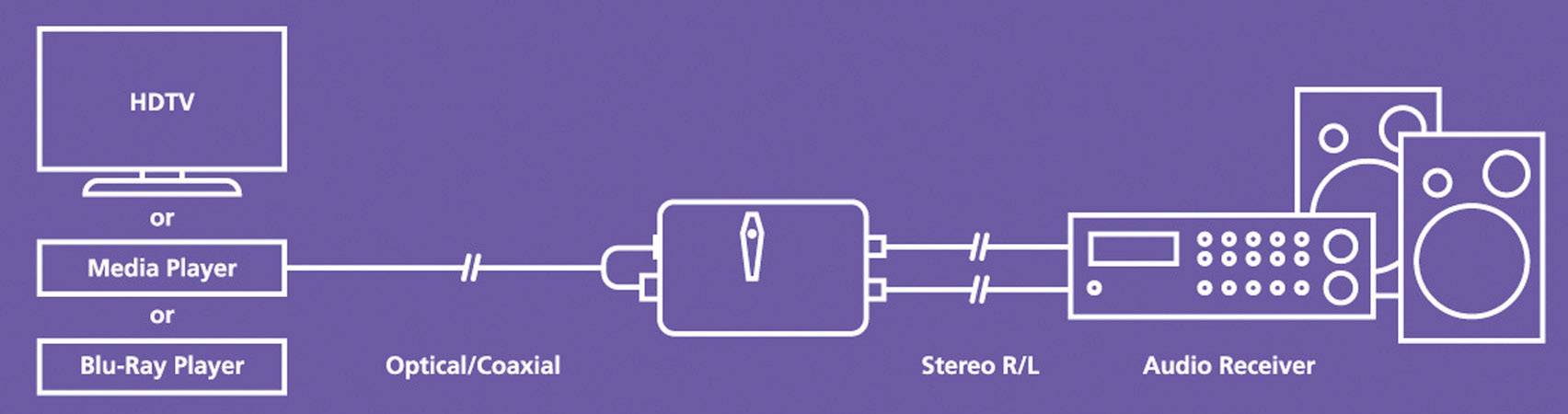

The circuit diagram shows the connection of an HDTV or media player or Blu-ray player via optical/coaxial cable and stereo left-right to an audio receiver with speakers.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Connect since 21-Audio Converter | Digital Stereo | PCM

Highlights & Details

You can convert your digital audio signals (Toslink or coaxial) into the left/right stereo audio signal.
Extremely handy if your audio amplifier no or little digital audio inputs.
With improved 192 kHz sampling rate, for the best sound reproduction.
Supports uncompressed digital stereo signals.
Supports 16 or 24 bit
8, 32, 44.1, 48, 96, 176.4 and 192 kHz sampling frequencies.
With Wolfson DAC (digital-analog converter) for the best sound reproduction.

Technical specifications

Digital audio conversion to stereo

Product type: AV Converter

Connection type: Toslink
RCA Digital
RCA

No. of A connectors: 1 x

Type A: Toslink socket (ODT)
RCA socket (phono)

No. of B connections: 2 x

Type B: RCA socket (phono)

Factory colour: Black

Connector version: straight

Version: Converter

Cable use: AV

Signal flow direction: Unidirectional (uni)

Weight: 45 g

Length: 23 mm

Width: 51 mm

Height: 80 mm

Dim: (L x W x H) 23 x 51 x 80 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 046467 Marmitek AV Converter Connect DA21 [Toslink, RCA Digital - RCA]

User & Safety Instructions

User & Safety Instructions 046467 Marmitek AV Converter Connect DA21 [Toslink, RCA Digital - RCA]

Description

During the playback of a good tone of your latest TV via speakers, you can encounter the following problems. Your TV has only a digital Toslink or coaxial output, while you like the red/white stereo analogue input on the amplifier. Thanks to the 192 Khz Sampling Rate (Sampling Rate) listen to the sound with this converter will continue to be in excellent quality.

This text is machine translated.
