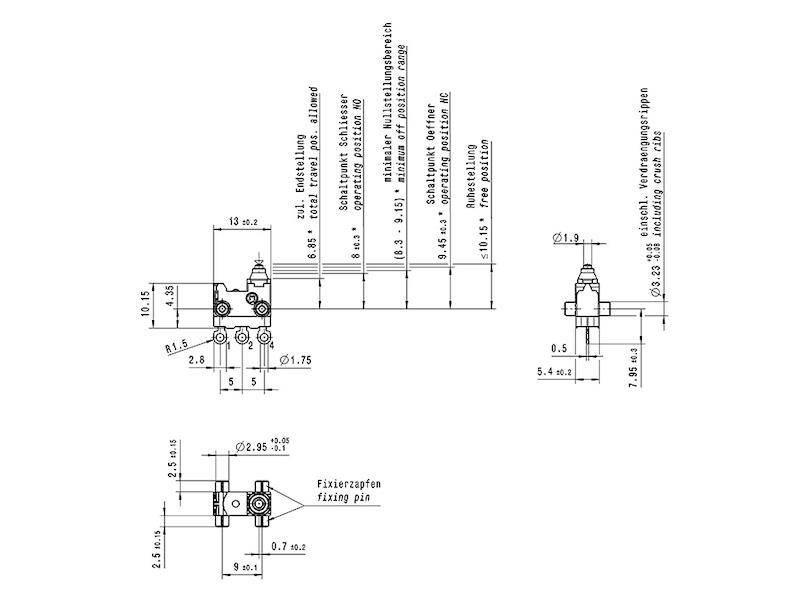

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Marquardt 01075.0603-01 Microswitch 30 V DC 0.1 A 1 x On/(Off)/(Off) Actuator side: IP67/Connection side: IP00 momentary
EAN:
Part number:
Item no:
Product type
Microswitch
Connection
Solder pins
Operation type
1-button
Switch position
1 x On/(Off)/(Off)
Switching voltage
30 V DC
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.78
10
8% = € 0.21
€ 2.57
25
10% = € 0.29
€ 2.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.78 / piece)
€ 2.78
plus VAT.
14-day return policy included
Technical specifications
- Product type
Microswitch
- Functions
momentary
- Connection
Solder pins
- Contact material
Au
- Operation type
1-button
- Contact type
1 change-over
- Switch position
1 x On/(Off)/(Off)
- Switching voltage
30 V DC
- Switching current (max.)
0.1 A
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Durability
200000
Actuator side: IP67/Connection side: IP00
- Actuating force
1.6 N
- Content
1 pc(s)
- Type
01075.0603-01
