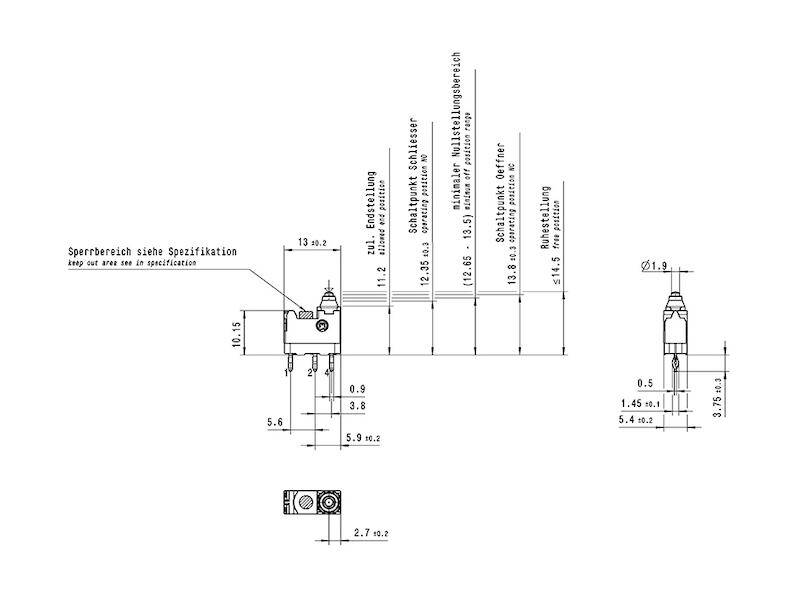

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Marquardt 01075.2000-02 Microswitch 30 V DC 0.1 A 1 x On/(Off)/(Off) momentary 1 pc(s)
EAN:
Part number:
Item no:
Product type
Microswitch
Connection
Press-in
Operation type
1-button
Switch position
1 x On/(Off)/(Off)
Switching voltage
30 V DC
Number
Total (€ 3.80 / piece)
€ 3.80
plus VAT.
14-day return policy included
Technical specifications
- Product type
Microswitch
- Functions
momentary
- Connection
Press-in
- Contact material
Au
- Operation type
1-button
- Contact type
1 change-over
- Switch position
1 x On/(Off)/(Off)
- Switching voltage
30 V DC
- Switching current (max.)
0.1 A
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Durability
200000
- Actuating force
1.6 N
- Content
1 pc(s)
- Type
01075.2000-02
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3192083 Marquardt 01075.2000-02 Microswitch 30 V DC 0.1 A 1 x On/(Off)/(Off) momentary 1 pc(s)
