Buy Marquardt 1019.0101 1019.0101 Snap-action switch 250 V DC 6 A 1 pc(s)

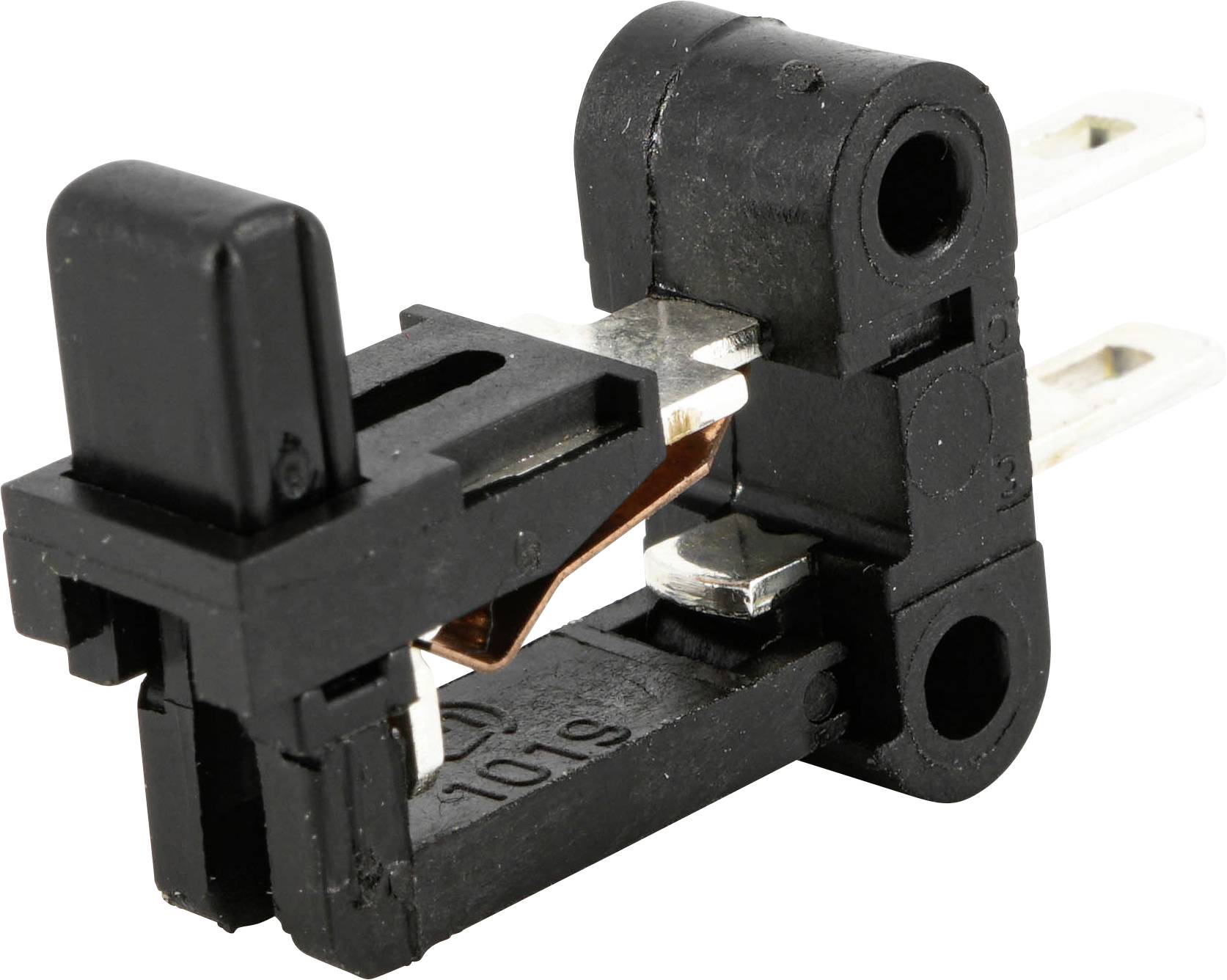

A black lever micro switch with a visible metal arm and three connecting pins, used for circuit breaking or switching applications.

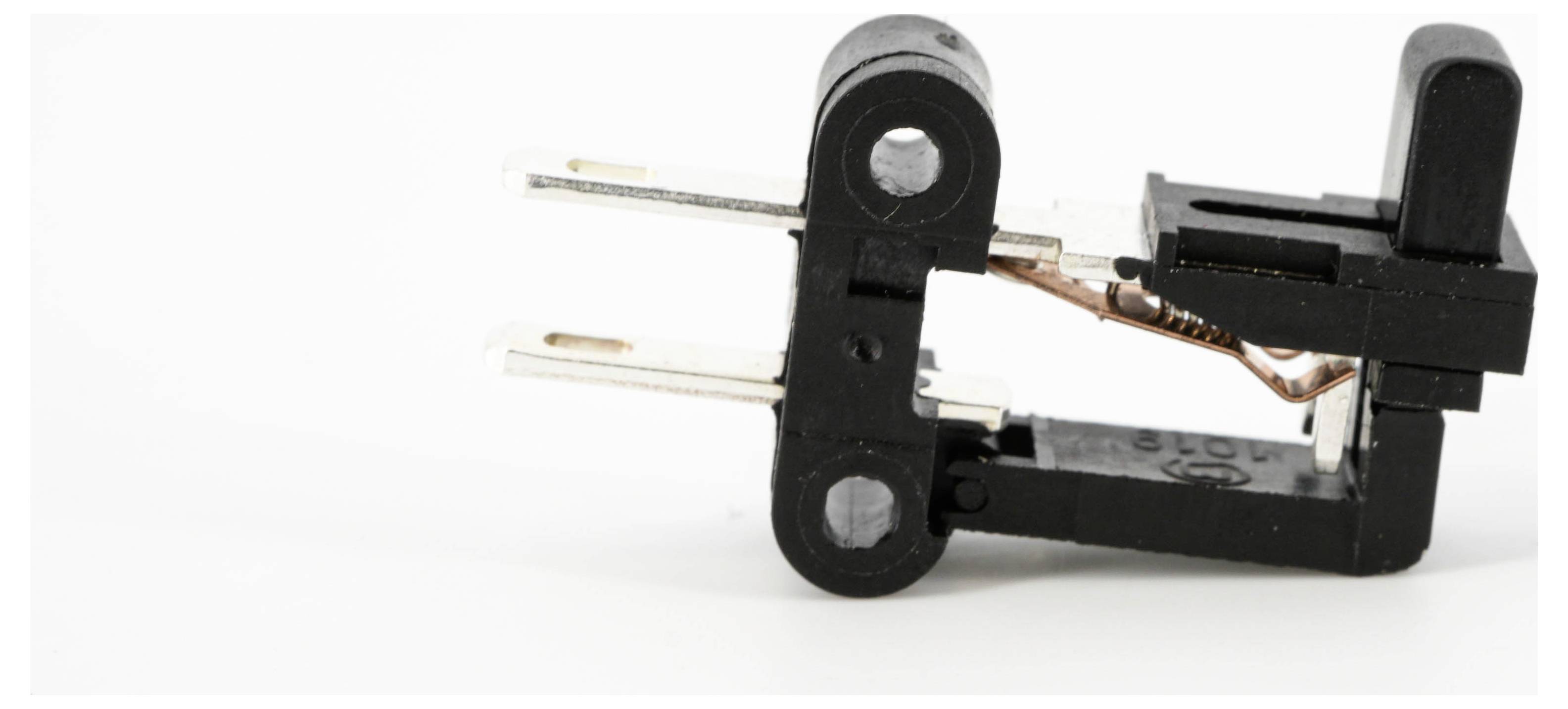

'A black micro switch with metal terminals, used in electronic devices for detecting physical position changes.'

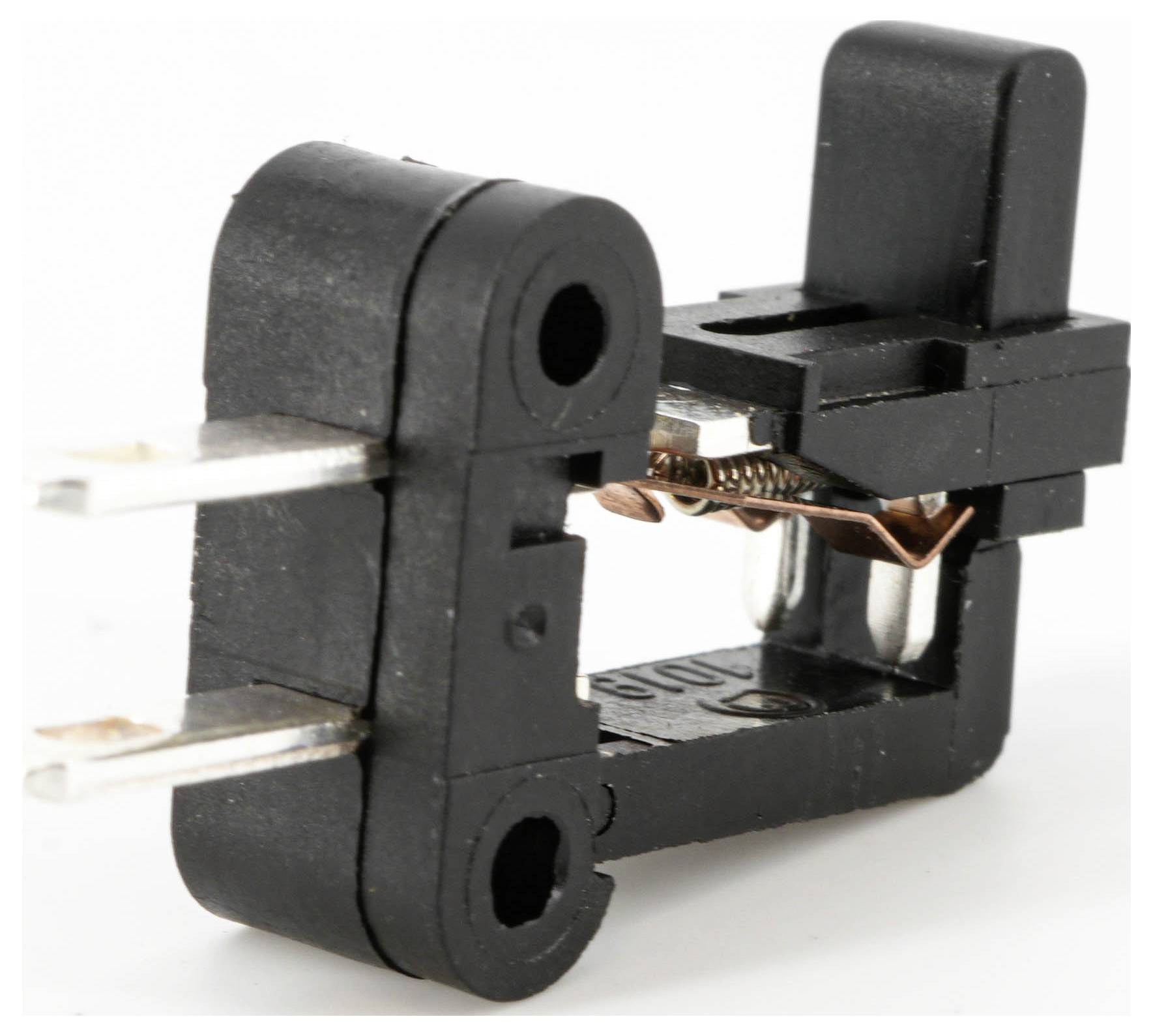

A black plastic microswitch with two metal prongs and a lever, used in electronic devices for detecting mechanical movement.

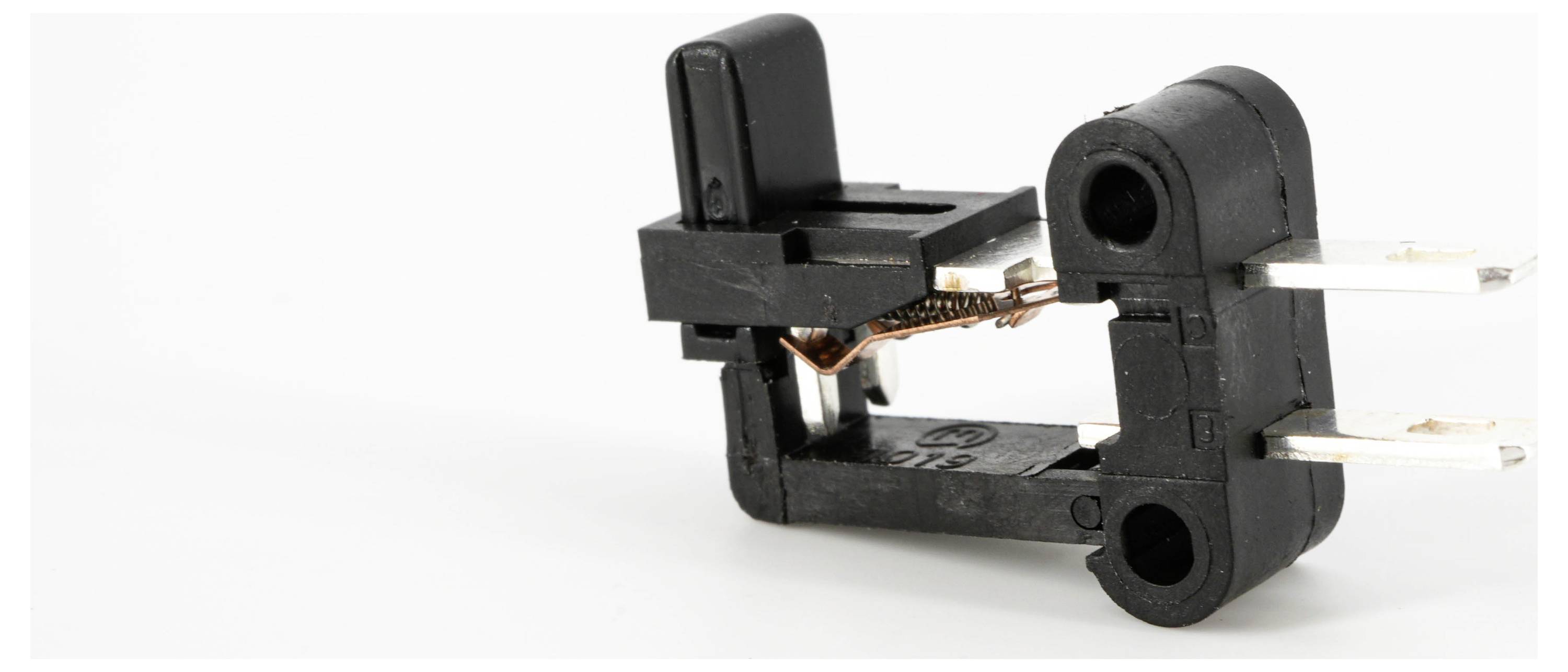

A black micro switch on a white background, showing exposed copper components and metal prongs.

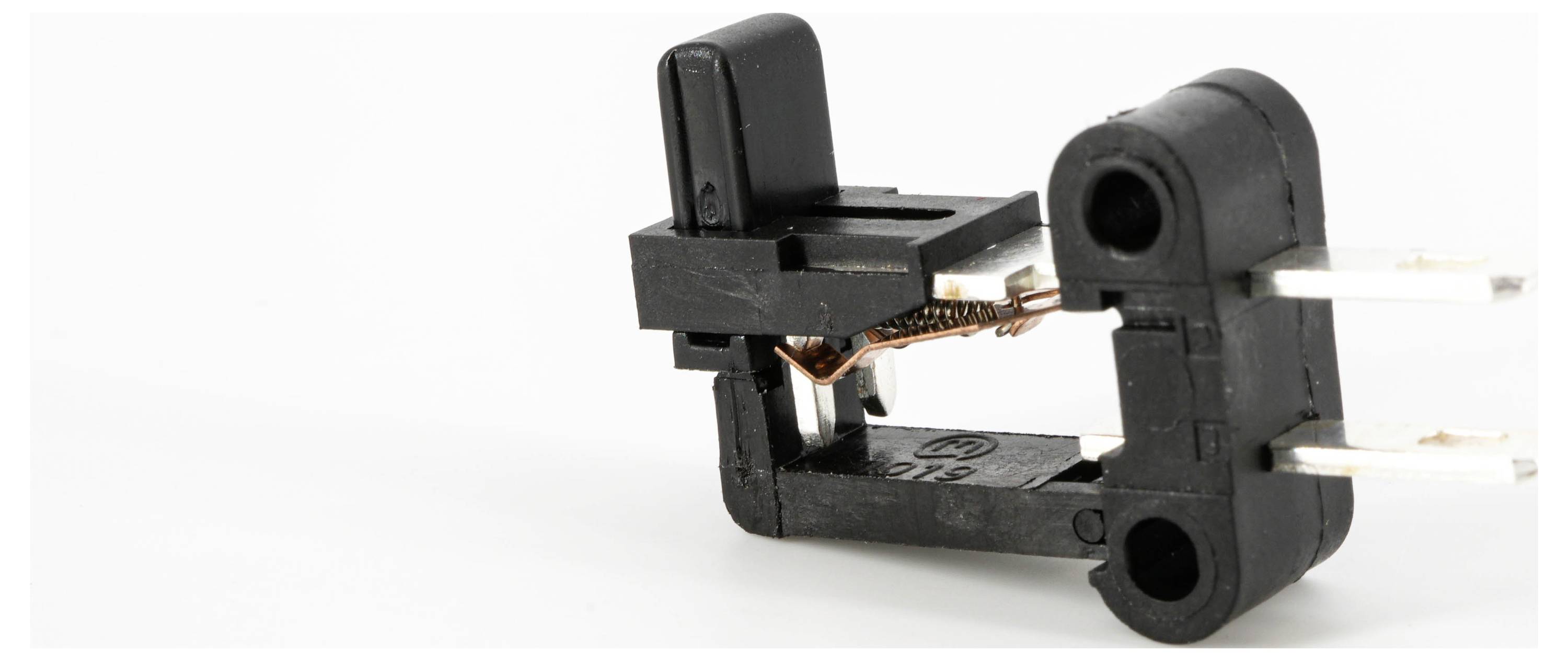

A black microswitch with visible copper wiring and metal pins designed for electrical connections.

1/5

Product type

Snap-action switch

Lighting type

None

Switching voltage

250 V DC

Switching current (max.)

6 A

Casing/button colour

Black

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

95 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.96 / piece)

€ 2.96

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Snap-action switch

Casing/button colour: Black

Lighting type: None

Contact material: Silver

Switching voltage: 250 V DC

Switching current (max.): 6 A

Dielectric strength: 1500 V

Min. temperature: -40 °C

Max. temperature: 85 °C

Durability: 20E4

Actuating force: 3 N

Content: 1 pc(s)

Contact resistance: 100 mΩ

Type: 1019.0101

Documents & Downloads

Datasheet

Datasheet 3474807 Marquardt 1019.0101 1019.0101 Snap-action switch 250 V DC 6 A 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3474807 Marquardt 1019.0101 1019.0101 Snap-action switch 250 V DC 6 A 1 pc(s)

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
