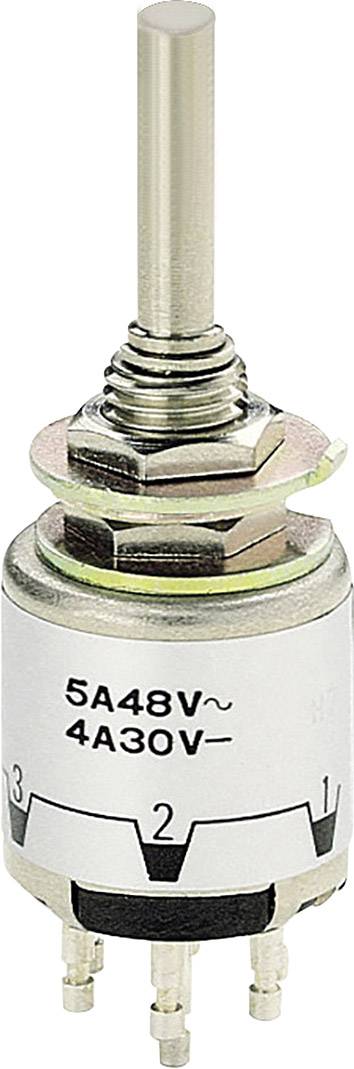

Marquardt 9030.0100 9030.0100 Rotary switch 48 V AC 5 A Switch postions 6 1 x 60 ° 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rotary switch
Operation type
Rotary switch
Contact type
4 change-overs
Switch postions
6
Switching voltage
48 V AC
Datasheet (PDF)
Number
Total (€ 24.15 / piece)
€ 24.15
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Product type
Rotary switch
- Casing/button colour
Nickel-coated
- Functions
latch
- Operation type
Rotary switch
- Switching angle
1 x 60 °
- Lighting type
None
- Contact type
4 change-overs
- Switch postions
6
- Contact material
Ag
- Connection
Solder tag
- Switching voltage
48 V AC
- Switching current (max.)
5 A
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- (Ø)
14 mm
- Content
1 pc(s)
- Type
9030.0100
- Dim
(Ø) 14 mm
Documents & Downloads
Datasheet
Datasheet 1681072 Marquardt 9030.0100 9030.0100 Rotary switch 48 V AC 5 A Switch postions 6 1 x 60 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1681072 Marquardt 9030.0100 9030.0100 Rotary switch 48 V AC 5 A Switch postions 6 1 x 60 ° 1 pc(s)
