Mascot Battery 3546 29,4V/1,0A Mains-powered USB charger 1000 mA Li-ion
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Plug-in charger 3546
- Charging current 1000 mA
- 3-stage charging process
- Refresh function
Technical specifications
- Temepraturbereich-25, +40 °C
- Frequency 47 - 63 Hz
- II protection rating
- DC output: terminals or cable
- Product type
Mains-powered USB charger
- Operating voltage
90 - 264 V
- Matching rechargeable battery
Li-ion
- Max. charging capacity
29 W
- Charging current (max.)
1000 mA
- Charging slots
1

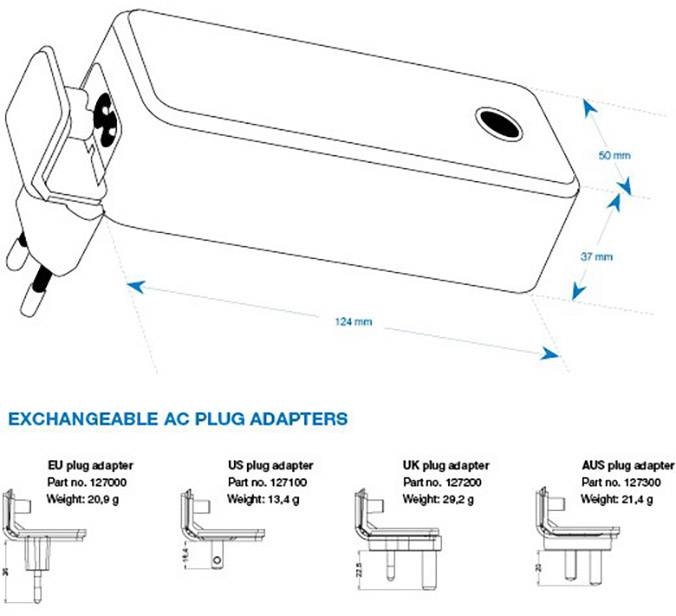

- Dim
(L x W x H) 124 x 50 x 37 mm
- Weight
220 g
- Manufacturer part #
3546LI/7c
- Width
50 mm
- Height
37 mm
- Length
124 mm
- No. of cells
7
Documents & Downloads
Datasheet
Datasheet 1681578 Mascot Battery 3546 29,4V/1,0A Mains-powered USB charger 1000 mA Li-ion
User & Safety Instructions
User & Safety Instructions 1681578 Mascot Battery 3546 29,4V/1,0A Mains-powered USB charger 1000 mA Li-ion
Description
The high-quality, high-performance plug-in charger for Li-ion battery packs. It is a 3-stage charging process used to a gentle and safe charging. This charging process provides the full battery voltage of 4.2 V and then starts with a saturation charge with the rechargeable battery reach their maximum capacity. With the refresh function, the charger is in a position to schwachelnde or deep-discharged batteries to regenerate. This reliable charger finds its application, for example, in industry, medicine, hobbies, measurement and control technology and many other applications.
This text is machine translated.
This text is machine translated.
Features
- 3-stage charging process
- Microprocessor-controlled
- Refresh function
- Battery fault detection
- The power plug can be changed
- LED display
- Reverse polarity protection
- Over and deep discharge protection
- Safety-timer
- Circuit breaker
- Certified according to EN 60601-1 3 ed e.g. for medical
- UL approval.
Scope of delivery
- EU-power cable, output cable with female plug.
