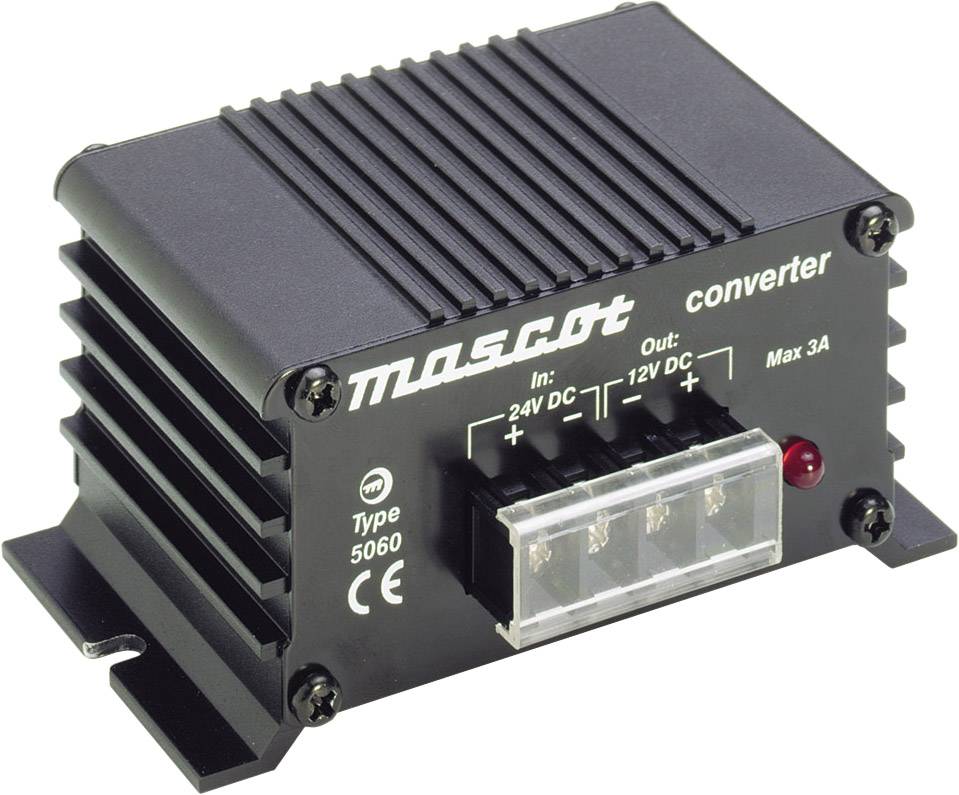

Mascot Battery 5060 DC/DC converter 24 V DC - 12 V DC/3 A 41 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC Converters
- Compact dimensions
- Lightweight
- High degree of efficiency
- This text is machine translated.
Technical specifications
- Temperature range: -20 to +60°C
- Load current: 12 mA
- Input voltage
18, 32 V
- Product type
DC/DC converter
- Used at
HGV
Fixed
- Output
Screw terminals
- No. of outputs
1 x
41 W
- Input voltage
24 V DC
- Output voltage
12 V DC
- Max. output current
3 A
- Output current (max.) - rounded
3 A

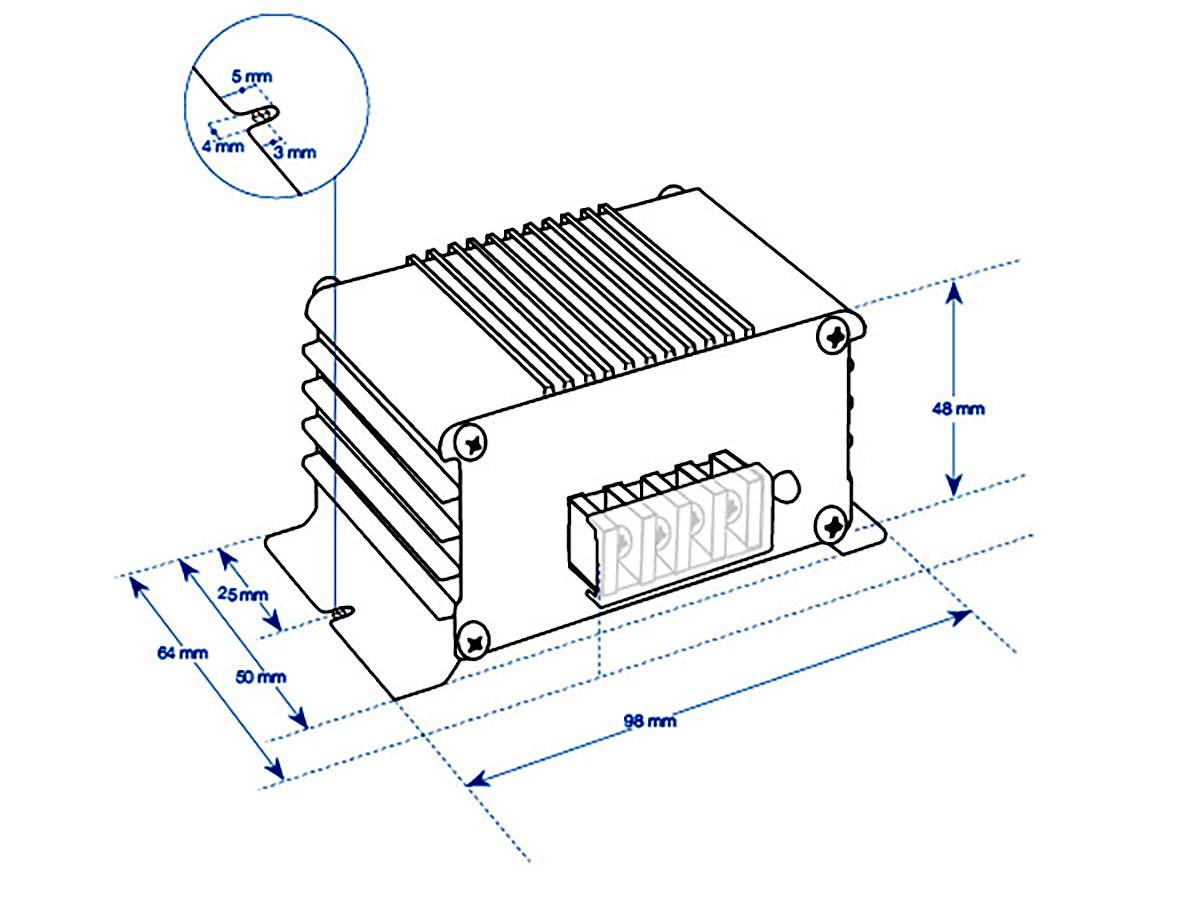

- Dim
(L x W x H) 98 x 64 x 48 mm
- Weight
200 g
- Content
1 pc(s)
- Width
64 mm
- Height
48 mm
- Length
98 mm
- Type
5060
- Efficiency
90 %
Documents & Downloads
Datasheet
Datasheet 1681894 Mascot Battery 5060 DC/DC converter 24 V DC - 12 V DC/3 A 41 W
User & Safety Instructions
User & Safety Instructions 1681894 Mascot Battery 5060 DC/DC converter 24 V DC - 12 V DC/3 A 41 W
Description
Powerful and reliable DC/DC converter for secure and long-lasting use. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- Compact dimensions
- Lightweight
- High degree of efficiency
- Circuit breaker
- EMC test EN 61000-6-1, EN 61000-6-3
- Mounting holes Ø 4 mm
- Cooling fins
- Robust housing
- LED display
Scope of delivery
- DC/DC Converters
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
