Mascot Battery 8660 DC/DC converter 12 V DC - 24 V DC/4 A 100 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC Converters
- Proof output
- Input and output are electrically isolated from the chassis
- The input is electrically isolated from the output
Technical specifications
- Temperature range: -20 to +25 °C
- Load current: 300 mA
- Input voltage
10 - 16 V
- Product type
DC/DC converter
- Used at
Car
Fixed
- Output
Connectors
- No. of outputs
1 x
100 W
- Input voltage
12 V DC
- Output voltage
24 V DC
- Max. output current
4 A
- Output current (max.) - rounded
4 A

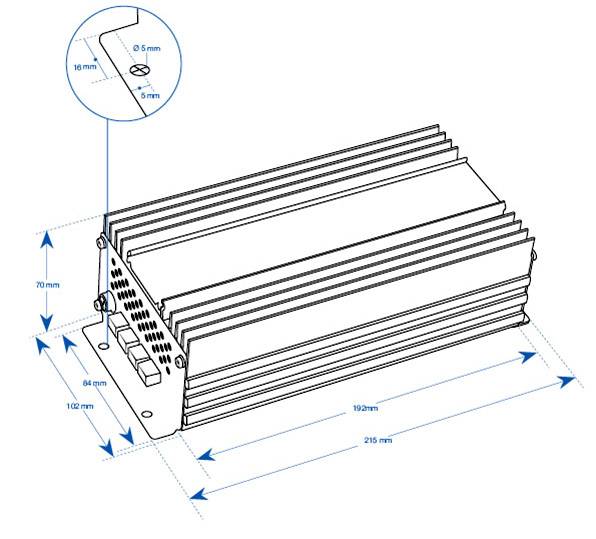

- Dim
(L x W x H) 220 x 105 x 70 mm
- Weight
1000 g
- Content
1 pc(s)
- Width
105 mm
- Height
70 mm
- Length
220 mm
- Type
8660
- Efficiency
81 %
Documents & Downloads
Datasheet
Datasheet 1681883 Mascot Battery 8660 DC/DC converter 12 V DC - 24 V DC/4 A 100 W
User & Safety Instructions
User & Safety Instructions 1681883 Mascot Battery 8660 DC/DC converter 12 V DC - 24 V DC/4 A 100 W
Description
Powerful and reliable DC/DC converter for secure and long-lasting use. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- Proof output
- Input and output are electrically separated from the casing
- The input is electrically isolated from the output
- Reverse polarity protection
- Overvoltage protection
- Circuit breaker
- e-tested
- EMC test EN 61000-6-1, EN 61000-6-3
- Mounting holes Ø 5 mm
- Robust housing
- Temperature control
Scope of delivery
- DC/DC Converters
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
