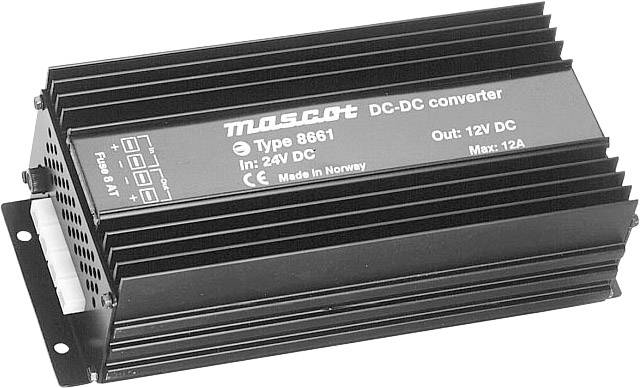

Mascot Battery 8661 DC/DC converter 24 V DC - 12 V DC/12 A 160 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC Converters
- The input is electrically isolated from the output
- Input and output are galvanically isolated
- Reverse polarity protection
- This text is machine translated.
Technical specifications
- Temperature range: -20 to +25 °C
- Load current: 200 mA
- Input voltage
20, 32 V
- Product type
DC/DC converter
- Used at
HGV
Fixed
- Output
Connectors
- No. of outputs
1 x
160 W
- Input voltage
24 V DC
- Output voltage
12 V DC
- Max. output current
12 A
- Output current (max.) - rounded
12 A

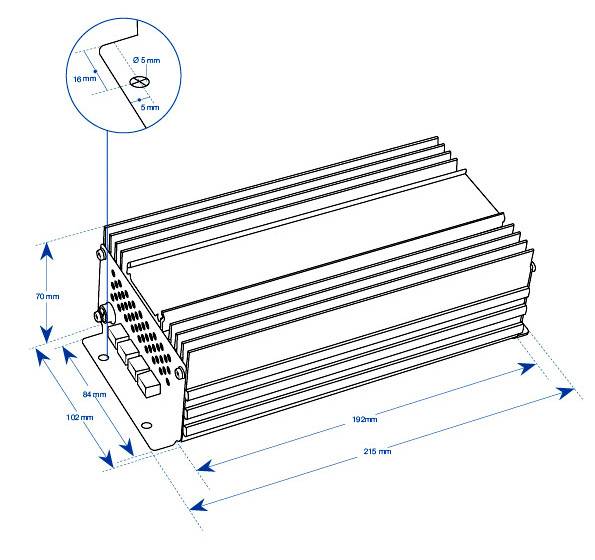

- Dim
(L x W x H) 220 x 105 x 70 mm
- Weight
1000 g
- Content
1 pc(s)
- Width
105 mm
- Height
70 mm
- Length
220 mm
- Type
8661
- Efficiency
82 %
Documents & Downloads
Datasheet
Datasheet 1681882 Mascot Battery 8661 DC/DC converter 24 V DC - 12 V DC/12 A 160 W
User & Safety Instructions
User & Safety Instructions 1681882 Mascot Battery 8661 DC/DC converter 24 V DC - 12 V DC/12 A 160 W
Description
Powerful and reliable DC/DC converter for secure and long-lasting use. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- The input is electrically isolated from the output
- Input and output are galvanically isolated
- Reverse polarity protection
- Overvoltage protection
- Circuit breaker
- e-tested
- EMC test EN 61000-6-1, EN 61000-6-3
- Mounting holes Ø 4 mm
- Robust housing
- Temperature control
Scope of delivery
- DC/DC Converters
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
