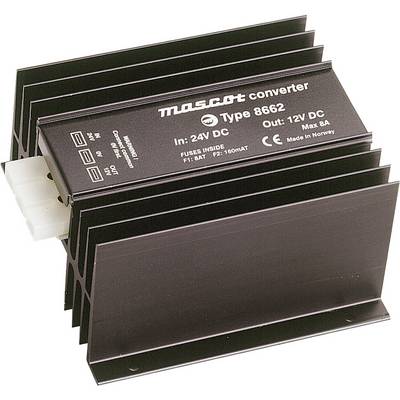

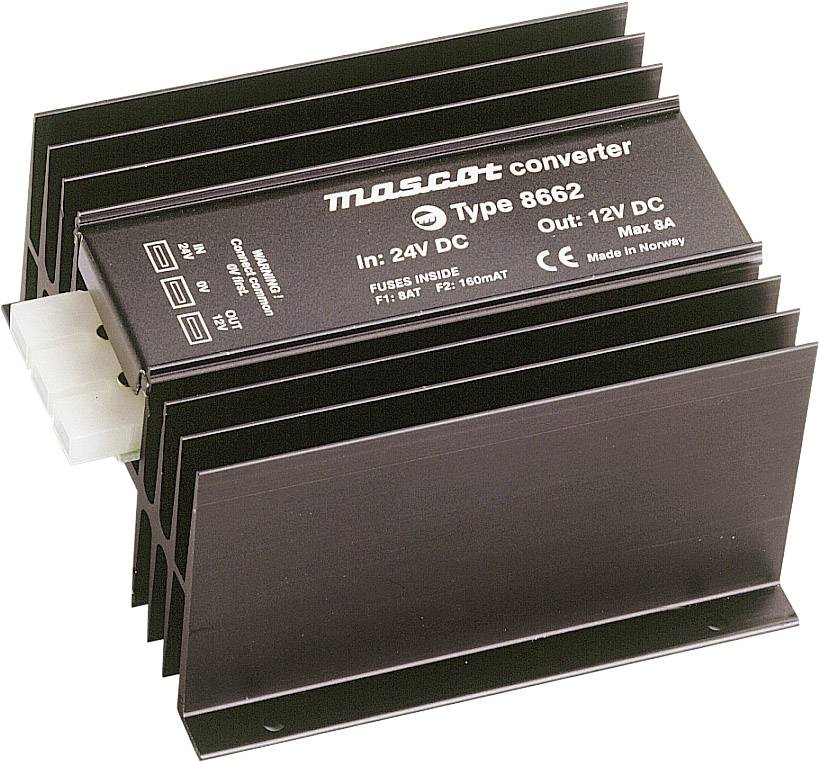

Mascot Battery 8662 DC/DC converter 24 V DC - 12 V DC/6 A 80 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC Converters
- Specially developed for a car radio
- The negative connection for input and output
- Output protected against overvoltage
- This text is machine translated.
Technical specifications
- Temperature range: -20 to +25 °C
- Load current: 5 mA
- Input voltage
20, 32 V
- Product type
DC/DC converter
- Used at
HGV
Fixed
- Output
Connectors
- No. of outputs
1 x
80 W
- Input voltage
24 V DC
- Output voltage
12 V DC
- Max. output current
6 A
- Output current (max.) - rounded
6 A

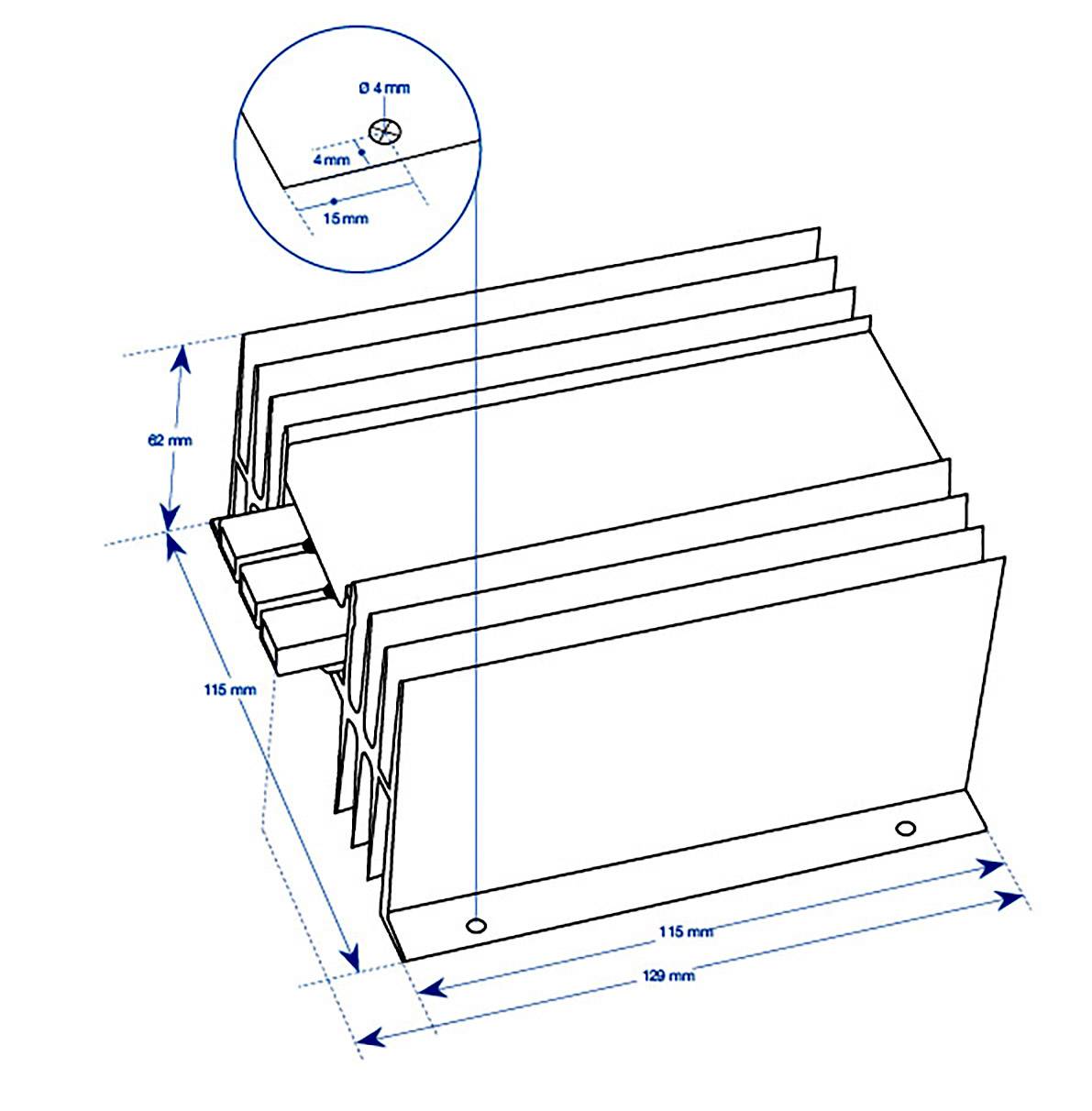

- Dim
(L x W x H) 129 x 115 x 62 mm
- Weight
500 g
- Content
1 pc(s)
- Width
115 mm
- Height
62 mm
- Length
129 mm
- Type
8662
Documents & Downloads
Datasheet
Datasheet 1681893 Mascot Battery 8662 DC/DC converter 24 V DC - 12 V DC/6 A 80 W
User & Safety Instructions
User & Safety Instructions 1681893 Mascot Battery 8662 DC/DC converter 24 V DC - 12 V DC/6 A 80 W
Description
Powerful and reliable DC/DC converter for secure and long-lasting use. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- Specially developed for a car radio
- Input protected against polarity reversal
- Output protected against overvoltage
- The negative connection for input and output
- e-tested
- EMC test EN 61000-6-1, EN 61000-6-3
- Mounting holes Ø 4 mm
- Cooling fins
- Robust housing
Scope of delivery
- DC/DC Converters
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
