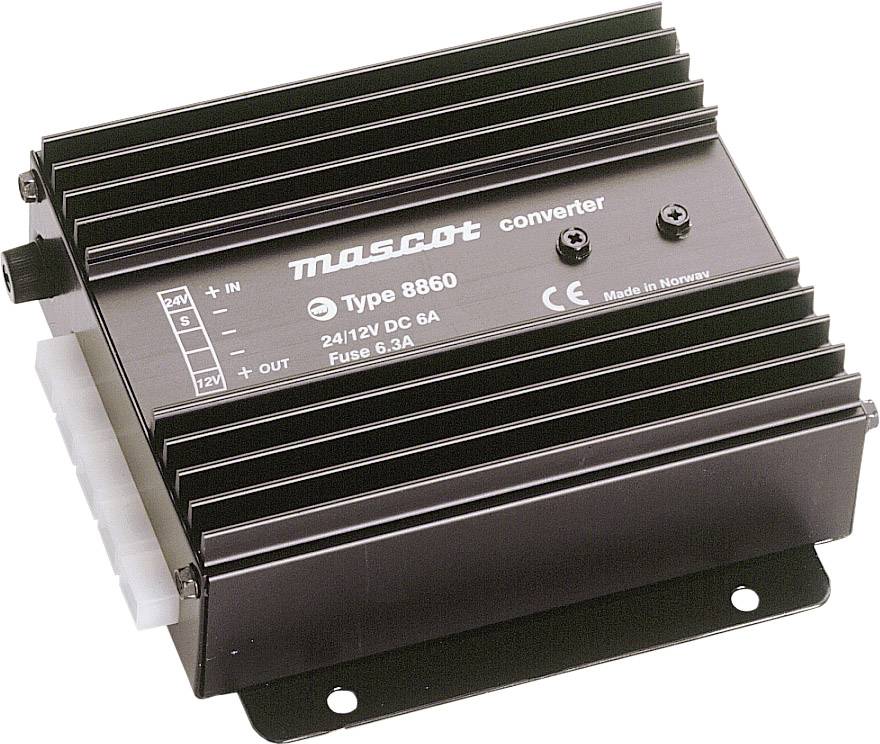

Mascot Battery 8860 DC/DC converter 24 V DC - 12 V DC/6 A 75 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC Converters
- Specially developed for mobile use of telephone systems
- Overvoltage protection
- Input protected against polarity reversal
- This text is machine translated.
Technical specifications
- Temperature range: -20 to +40 °C
- Load current: 35 mA
- Input voltage
22, 32 V
- Product type
DC/DC converter
- Used at
HGV
Fixed
- Output
Connectors
- No. of outputs
1 x
75 W
- Input voltage
24 V DC
- Output voltage
12 V DC
- Max. output current
6 A
- Output current (max.) - rounded
6 A
- Dim
(L x W x H) 115 x 96 x 38 mm
- Weight
400 g
- Content
1 pc(s)
- Width
96 mm
- Height
38 mm
- Length
115 mm
- Type
8860
- Efficiency
80 %
Documents & Downloads
Datasheet
Datasheet 1681895 Mascot Battery 8860 DC/DC converter 24 V DC - 12 V DC/6 A 75 W
User & Safety Instructions
User & Safety Instructions 1681895 Mascot Battery 8860 DC/DC converter 24 V DC - 12 V DC/6 A 75 W
Description
Powerful and reliable DC/DC converter for secure and long-lasting use. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- Specially developed for mobile use of telephone systems
- Input protected against polarity reversal
- Overvoltage protection
- Circuit breaker
- Temperature control
- e-tested
- EMC test EN 61000-6-1, EN 61000-6-3
- Mounting holes Ø 4 mm
- Cooling fins
- Robust housing
Scope of delivery
- DC/DC Converters
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
