Mascot Battery 9062 DC/DC converter 24 V DC - 12 V DC/3 A 40 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC Converters
- Specially developed for a car radio
- The negative connection for input and output
- Reverse polarity protection
- This text is machine translated.
Technical specifications
- Temperature range: -20 to +25 °C
- Load current: 5 mA
- Input voltage
20, 32 V
- Product type
DC/DC converter
- Used at
HGV
Fixed
- Output
Connectors
- No. of outputs
1 x
40 W
- Input voltage
24 V DC
- Output voltage
12 V DC
- Max. output current
3 A
- Output current (max.) - rounded
3 A

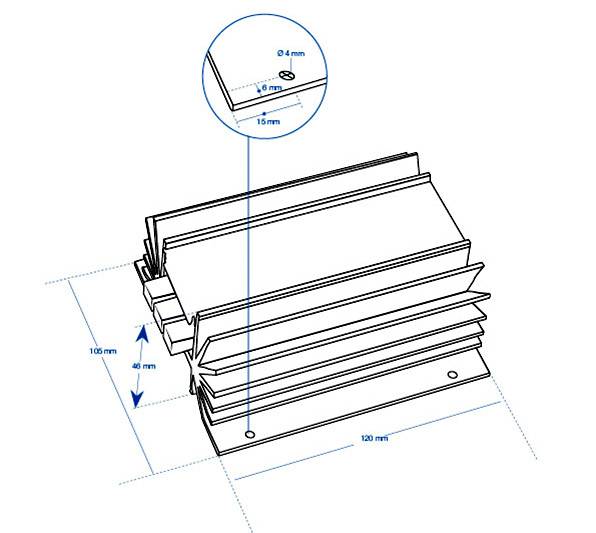

- Dim
(L x W x H) 130 x 105 x 46 mm
- Weight
400 g
- Content
1 pc(s)
- Width
105 mm
- Height
46 mm
- Length
130 mm
- Type
9062
Documents & Downloads
Datasheet
Datasheet 1681892 Mascot Battery 9062 DC/DC converter 24 V DC - 12 V DC/3 A 40 W
User & Safety Instructions
User & Safety Instructions 1681892 Mascot Battery 9062 DC/DC converter 24 V DC - 12 V DC/3 A 40 W
Description
Powerful and reliable DC/DC converter for secure and long-lasting use. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- Specially developed for a car radio
- The negative connection for input and output
- Reverse polarity protection
- Circuit breaker
- Overvoltage protection
- e-tested
- EMC test EN 61000-6-1, EN 61000-6-3
- Mounting holes Ø 4 mm
- Cooling fins
- Robust housing
Scope of delivery
- DC/DC Converters
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
