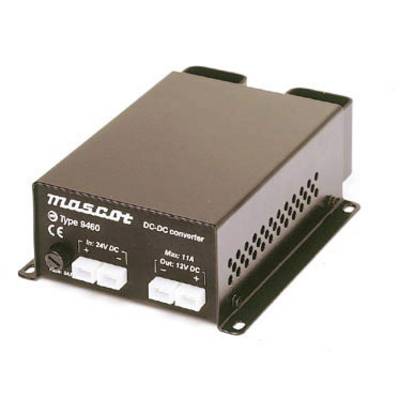

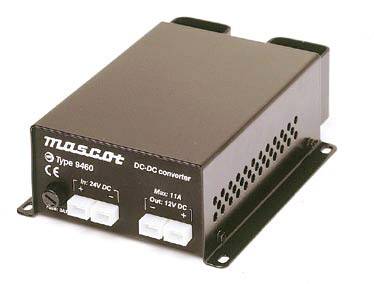

Mascot Battery 9460 DC/DC converter 24 V DC - 12 V DC/8 A 106 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC Converters
- The negative connection for input and output
- Reverse polarity protection
- Overvoltage protection
- This text is machine translated.
Technical specifications
- Temperature range: -20 to +30 °C
- Load current: 50 mA
- Input voltage
20, 32 V
- Product type
DC/DC converter
- Used at
HGV
Fixed
- Output
Connectors
- No. of outputs
1 x
106 W
- Input voltage
24 V DC
- Output voltage
12 V DC
- Max. output current
8 A
- Output current (max.) - rounded
8 A

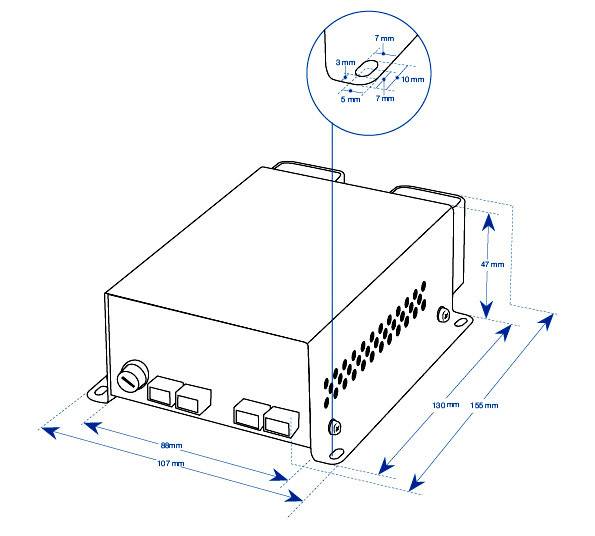

- Dim
(L x W x H) 155 x 107 x 47 mm
- Weight
400 g
- Content
1 pc(s)
- Width
107 mm
- Height
47 mm
- Length
155 mm
- Type
9460
- Efficiency
86 %
Documents & Downloads
Datasheet
Datasheet 1681877 Mascot Battery 9460 DC/DC converter 24 V DC - 12 V DC/8 A 106 W
User & Safety Instructions
User & Safety Instructions 1681877 Mascot Battery 9460 DC/DC converter 24 V DC - 12 V DC/8 A 106 W
Description
Powerful and reliable DC/DC converter for secure and long-lasting use. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- The negative connection for input and output
- Reverse polarity protection
- Overvoltage protection
- Circuit breaker
- e-tested
- EMC test EN 61000-6-1, EN 61000-6-3
- Fixing holes
- Robust housing
- Temperature control
Scope of delivery
- DC/DC Converters
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
