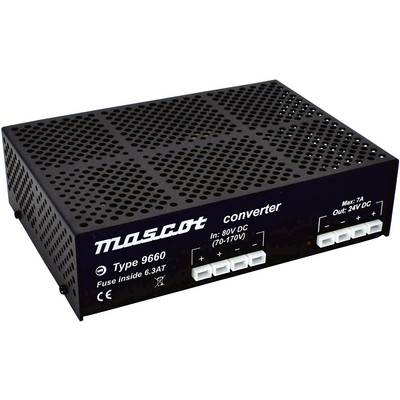

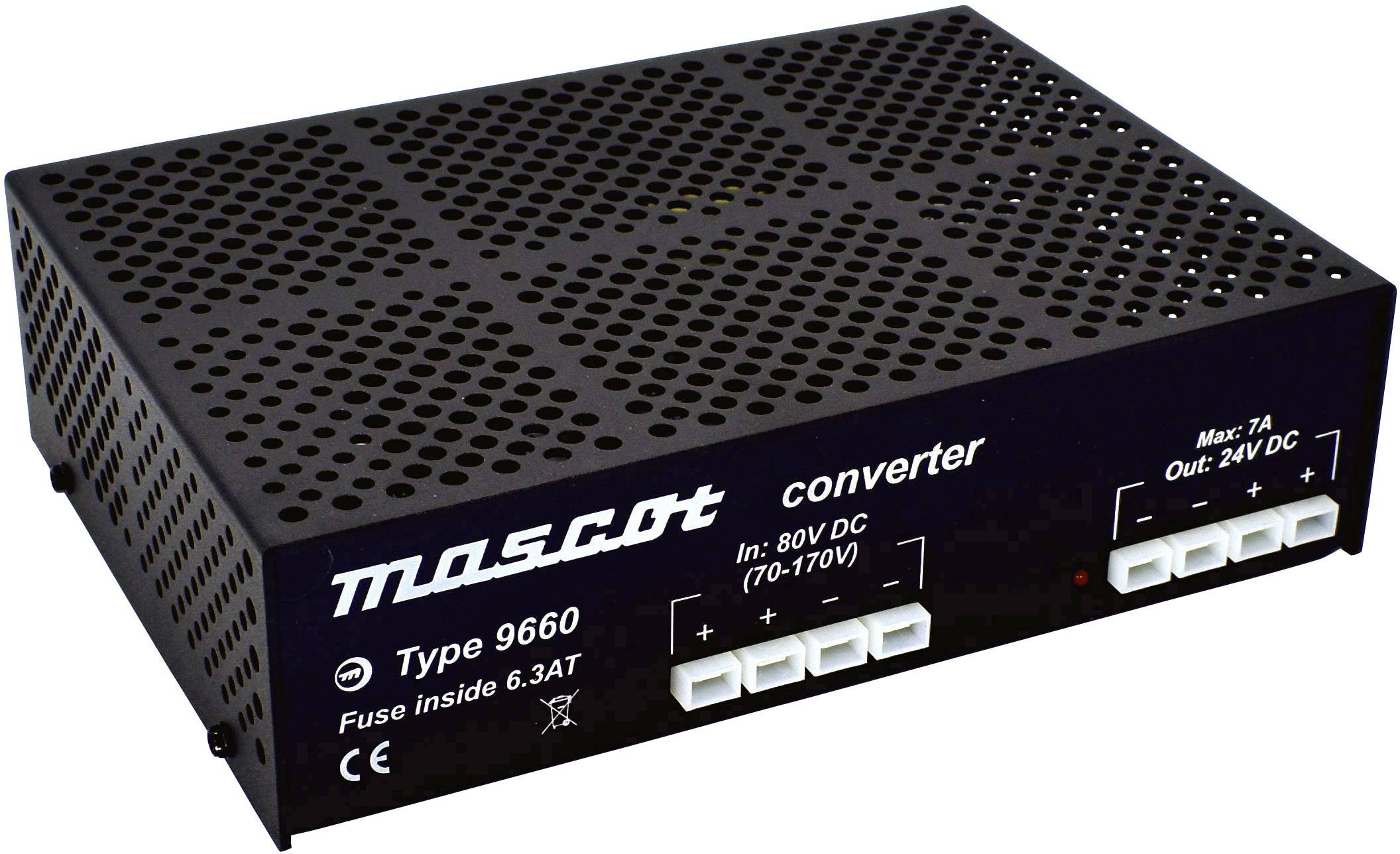

Mascot Battery 9660 DC/DC converter 80 V DC - 24 V DC/7 A 158 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC Converters
- Designed for electric forklift, high-voltage transients
- Reverse polarity protection
- Output protected against overvoltage
Technical specifications
- Temperature range: -20 to +25 °C
- Load current: 30 mA
- Input voltage
70, 170 V
- Product type
DC/DC converter
- Used at
Fixed
- Output
Connectors
- No. of outputs
1 x
158 W
- Input voltage
80 V DC
- Output voltage
24 V DC
- Connections
6.3mm plug contacts
- Max. output current
7 A
- Output current (max.) - rounded
7 A

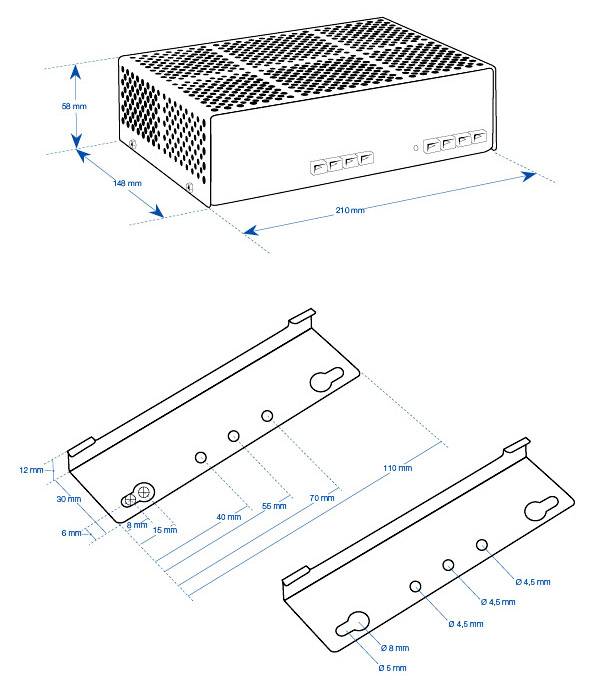

- Dim
(L x W x H) 210 x 148 x 58 mm
- Weight
1100 g
- Content
1 pc(s)
- Width
148 mm
- Height
58 mm
- Length
210 mm
- Type
9660
- Efficiency
82 %
Documents & Downloads
Datasheet
Datasheet 1712715 Mascot Battery 9660 DC/DC converter 80 V DC - 24 V DC/7 A 158 W
User & Safety Instructions
User & Safety Instructions 1712715 Mascot Battery 9660 DC/DC converter 80 V DC - 24 V DC/7 A 158 W
Description
Powerful and reliable DC/DC converter for secure and long-lasting use. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- Designed for electric forklift, high-voltage transients
- Reverse polarity protection
- Temperature control
- Circuit breaker
- Output protected against overvoltage
- Input and output are galvanically isolated
- The input is electrically isolated from the output
- Mounting bracket
- EMC test EN 61000-6-1, EN 61000-6-3
- Robust housing
- LED display
Scope of delivery
- DC/DC Converters
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
