Mascot Battery 9970 DC/DC converter 24 V DC - 12 V DC/20 A 276 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC/DC Converters
- Switching mode
- Compact dimensions
- Circuit breaker
- This text is machine translated.
Technical specifications
- Temperature range of 0, +40 °C
- Load current: 150 mA
- Input voltage
20 - 30 V
- Product type
DC/DC converter
- Used at
HGV
Fixed
- Output
Screw terminals
- No. of outputs
1 x
276 W
- Input voltage
24 V DC
- Output voltage
12 V DC
- Max. output current
20 A
- Output current (max.) - rounded
20 A

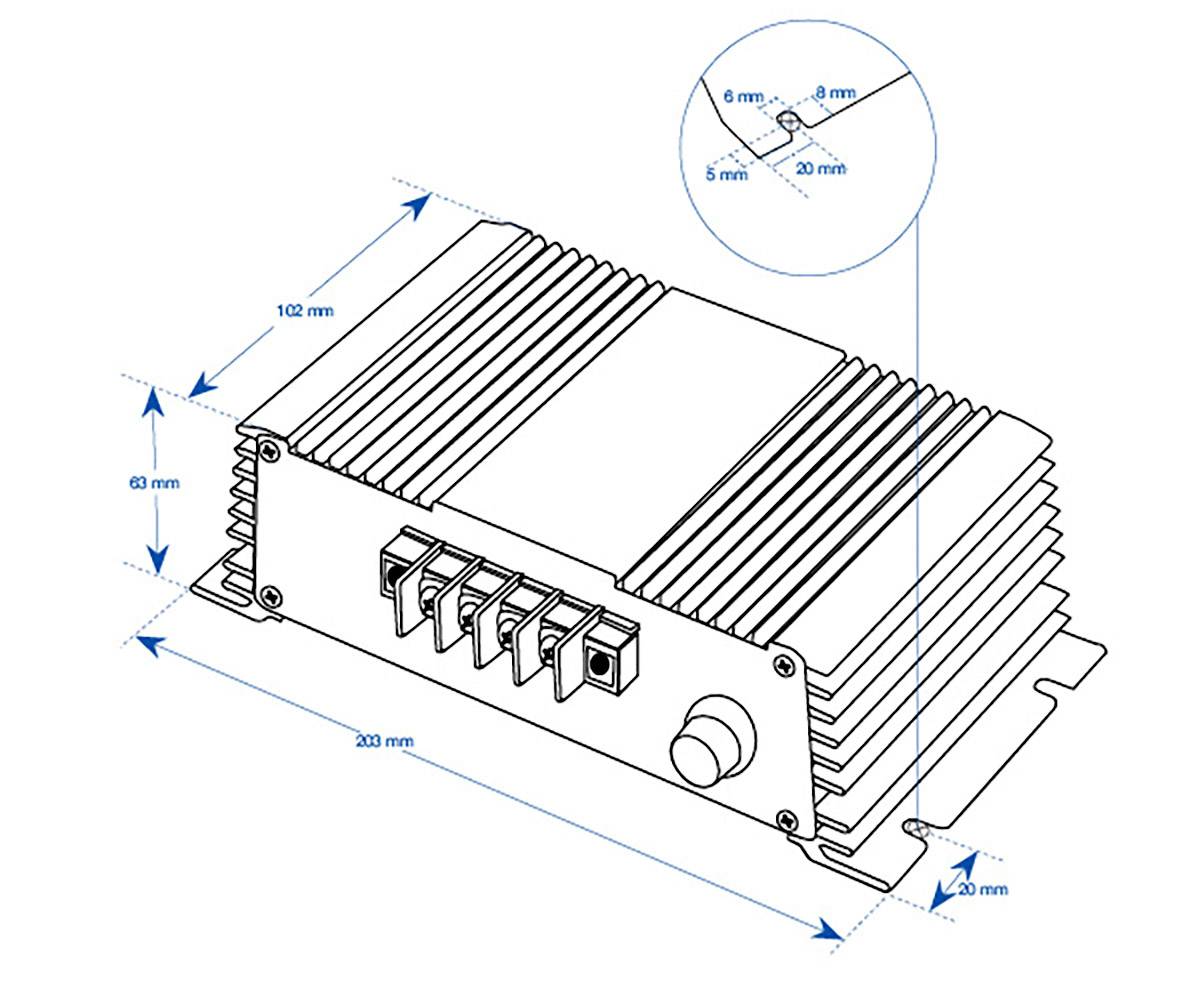

- Dim
(L x W x H) 202 x 102 x 63 mm
- Weight
900 g
- Content
1 pc(s)
- Width
102 mm
- Height
63 mm
- Length
202 mm
- Type
9970
- Efficiency
90 %
Documents & Downloads
Datasheet
Datasheet 1681881 Mascot Battery 9970 DC/DC converter 24 V DC - 12 V DC/20 A 276 W
User & Safety Instructions
User & Safety Instructions 1681881 Mascot Battery 9970 DC/DC converter 24 V DC - 12 V DC/20 A 276 W
Description
Powerful and reliable DC/DC converter for secure and long-lasting use. Simple installation and no maintenance required.
This text is machine translated.
This text is machine translated.
Features
- Switching mode
- Compact dimensions
- Circuit breaker
- e-tested
- EMC test EN 61000-6-1, EN 61000-6-3
- Fixing holes
- Robust housing
Scope of delivery
- DC/DC Converters
- User manual.
Hints
Tip: If you are unsure which voltage (V), current (A) and power (W) your devices require, this information can usually be found on the device's rear, on its box or in its instruction manual
