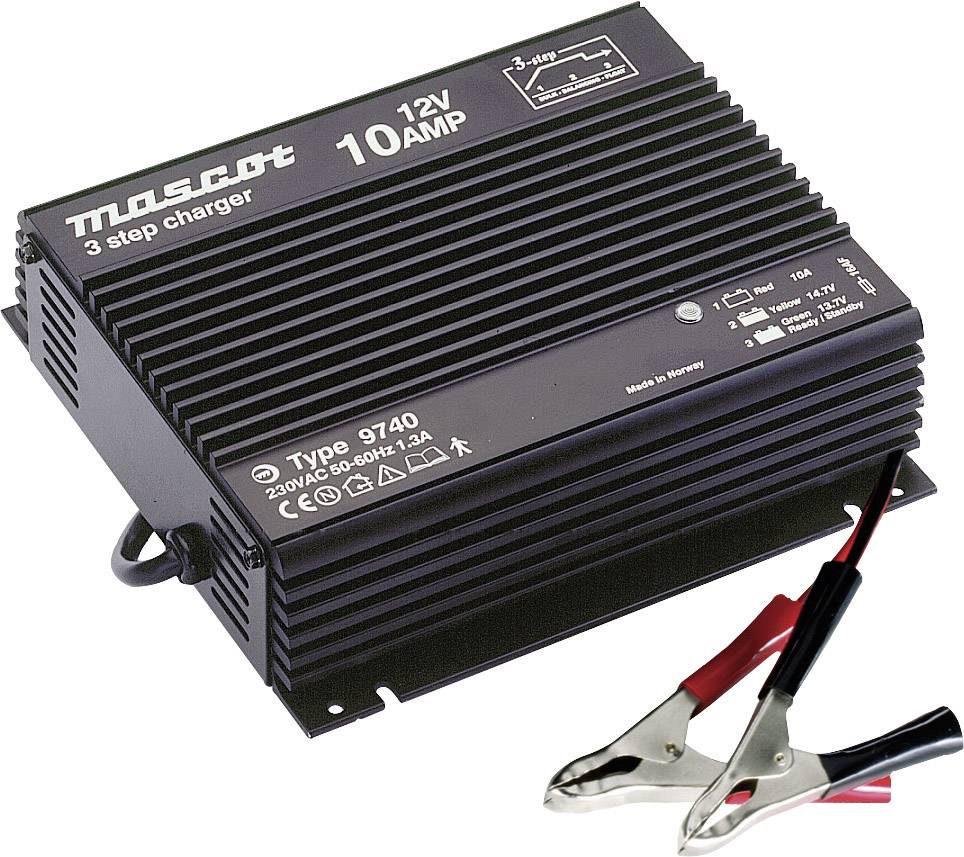

Mascot Battery VRLA charger Mascot 12 V Charging current (max.) 10 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Tabletop lead-acid charger 12V 10A
- 3-stage battery control with current detection
- Corresponds to medical directive EN 60601
- Short circuit and reverse polarity protection
- Incl. alligator clips
- This text is machine translated.
Technical specifications
- Temperature range -25 to +40 °C
- Protection class: I
- Product type
VRLA charger
- Matching rechargeable battery
Lead-acid
SLA
Lead acid membrane
- Suitable for lead-type rechargeables
12 V
- Recommended battery capacity (min.)
40 Ah
- Recommended battery capacity (max.)
400 Ah
- Charging slots
1
- Operating voltage
198 - 264 V
- Charging current (max.)
10 A
- Charging current at 12 V
10 A
- Charge Voltage
14.7 V
- Length
184 mm
- Width
171 mm
- Height
65 mm
- Weight
1500 g
- Dim
(L x W x H) 184 x 171 x 65 mm
- Max. charging current
10 A
Documents & Downloads
Datasheet
Datasheet 200717 Mascot Battery VRLA charger Mascot 12 V Charging current (max.) 10 A
User & Safety Instructions
User & Safety Instructions 200717 Mascot Battery VRLA charger Mascot 12 V Charging current (max.) 10 A
Conformity certificate
Conformity certificate 200717 Mascot Battery VRLA charger Mascot 12 V Charging current (max.) 10 A
Description
Mascot lead-acid battery charger for reliable and efficient battery charge with an intelligent charge control, protection devices and robust processing.
This text is machine translated.
This text is machine translated.
Features
- 3-stage battery control with current detection as charging cut-off
- Corresponds to medical directive EN 60601
- Microprocessor-controlled charging regulation
- Circuit breaker
- Reverse polarity protection
- Display via 3 LED
- With cooling fins
- Fixed mounting with screws possible
Scope of delivery
- Charger
- Alligator clips
- User manual.
