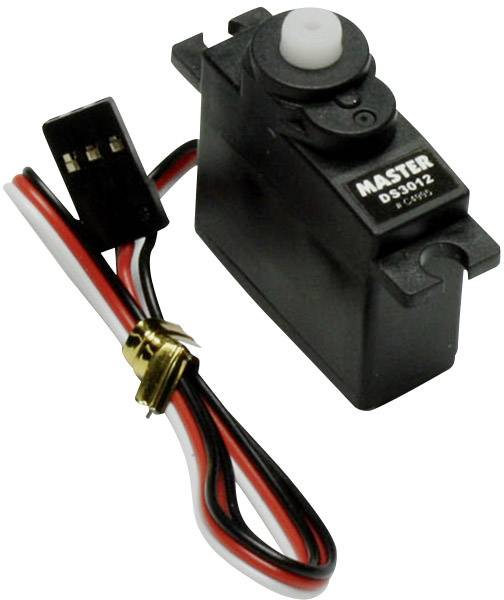

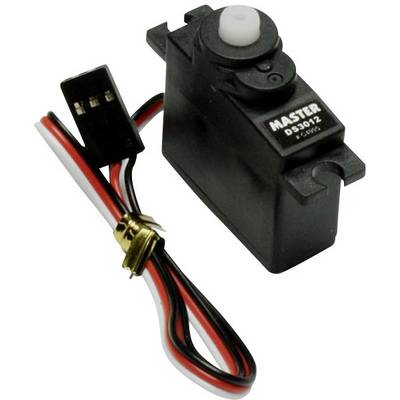

Master Modellbau Midi servo DS3012 Digital servo Gear box material: Plastic Connector system: Uni (Graupner / JR / Futab
EAN:
Part number:
Item no:
Highlights & Details
Digital Servo DS3012
- High efficiency, low power consumption
- High adjustment accuracy and powerful
Technical specifications
- Product type
Midi servo
- Dim
(L x W x H) 30 x 12 x 32 mm
- Length
30 mm
- Width
12 mm
- Height
32 mm
- Voltage
Low
- Weight
17 g
- Servo torque (4.8 V)
27.5 Ncm
- Actuation time at 4.8 V
0.09 s (45°)
- Gear box
Plastic
- Type of bearing
Double ball bearing
- Servo technology
Digital servo
- Connector system
Uni (Graupner / JR / Futaba)
- Operating voltage
4.8 - 6 V
- Max. operating voltage
6 V
- Min. operating voltage
4.8 V
- Manufacturer part #
C4995
- for brands
Graupner
- Suitable for
Universal
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1556173 Master Modellbau Midi servo DS3012 Digital servo Gear box material: Plastic Connector system: Uni (Graupner / JR / Futab
Description
High-quality master digital servo of the 3-kg class with ball bearings. By a top price/performance ratio catapults this servo to the top in its price class.
Ideal for: Aircraft/Helicopter/Car/boat
This text is machine translated.
Ideal for: Aircraft/Helicopter/Car/boat
This text is machine translated.
Features
- High quality branded servo
- 6-way bolted casing
- Servo middle part of aluminum
Scope of delivery
- Servo
- Servo Levers
- Control discs
- Fitting Material
- User manual.
