Master Modellbau Standard servo DS4020 Digital servo Gear box material: Plastic Connector system: Uni (Graupner / JR / F
EAN:
Part number:
Item no:
Highlights & Details

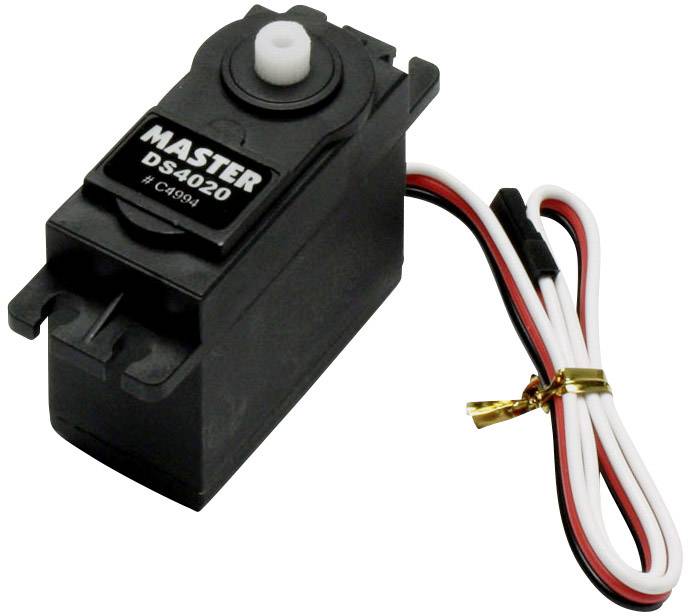

Digital Servo DS4020
- High quality branded servo
- High efficiency, low power consumption
- High adjustment accuracy and powerful
Technical specifications
- Product type
Standard servo
- Dim
(L x W x H) 40 x 38 x 20 mm
- Length
40 mm
- Width
38 mm
- Height
20 mm
- Voltage
Low
- Weight
37 g
- Servo torque (4.8 V)
50 Ncm
- Servo torque at 6 V
60 Ncm
- Actuation time at 4.8 V
0.14 s (45°)
- Actuation time at 6 V
0.12 s (45°)
- Gear box
Plastic
- Type of bearing
Ball bearing
- Servo technology
Digital servo
- Connector system
Uni (Graupner / JR / Futaba)
- Operating voltage
4.8 - 6 V
- Max. operating voltage
6 V
- Min. operating voltage
4.8 V
- Manufacturer part #
C4994
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1556177 Master Modellbau Standard servo DS4020 Digital servo Gear box material: Plastic Connector system: Uni (Graupner / JR / F
Description
High-quality master digital servo of the 5-kg class with ball bearings. By a top price/performance ratio catapults this servo to the top in its price class.
Ideal for: Aircraft/Helicopter/Car/boat.
This text is machine translated.
Ideal for: Aircraft/Helicopter/Car/boat.
This text is machine translated.
Features
- 4-way bolted casing
Scope of delivery
- Servo
- Servo Levers
- Control discs
- Fitting Material
- User manual.
