Maul 8258902 LED surface-mount light LED (monochrome) Bulb to be changed by qualified electrician 18 W White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

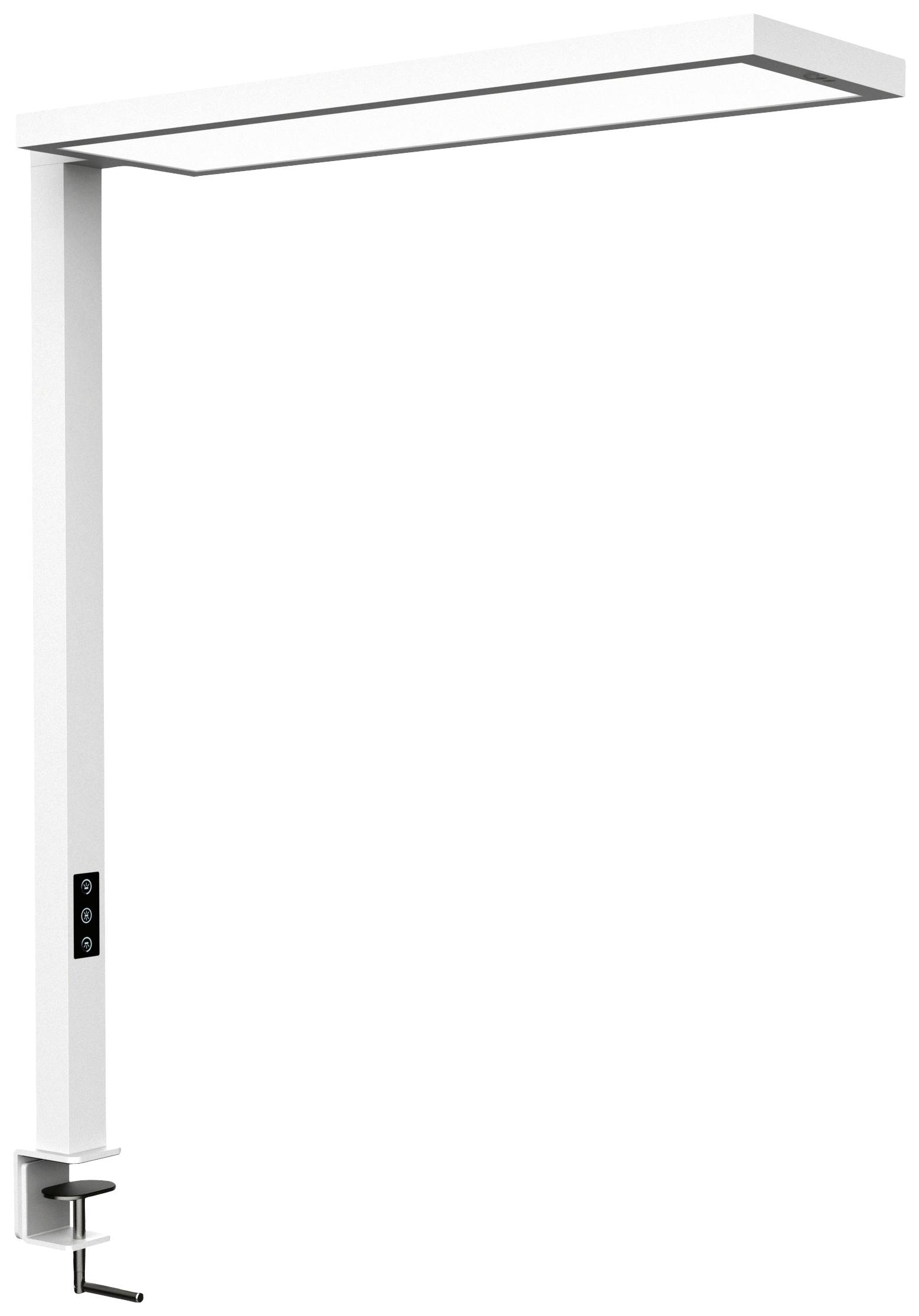

MAUL LED Table/desk setup MAULsenja DIMM., motion/light sensor, white
- Power= 18 W Total luminous flux= 15150 lm Colour temperature= 5700 K Warm white to daylight white
Technical specifications
- Light strength: 940 lux at 85 cm distance, 580 lux at 110 cm distance
- Colour temperature (per light source): 2,700 Kelvin (warm white) up to 5,700 Kelvin (daylight white)
- Energy efficiency rating (per light source): Indirect: C (spectrum A to G) & Direct: D (spectrum A to G)
- Weighted energy consumption (per light source): 87 kWh/1000 h (69 kWh/1000 h & 18 kWh/1000 h)
- L70B50 life (depending on light source): 50,000 h
- High light output (per light source): 15,150 lumens (12,500 lumens & 2,650 lumens)
- Material: Head: Aluminium - column: Aluminium
- Dimensions: Head: 79.2 x 24 x 3.1 cm
- Motion:Head: Fixed
- Sturdy clamp base made of steel, clamp width from 1.5 to 9.5 cm. Protective surface at the bottom Height 120 cm Ideal for height-adjustable tables.
- Product type
LED surface-mount light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Bulb to be changed by qualified electrician
18 W
- Base (reading light)
Bulb to be changed by qualified electrician
- Power (reading light)
18 W
- Energy consumption
87 kWh/1000h
5700 K
- Colour
Warm white to daylight white
- Total luminous flux
15150 lm
- Light features
Dimmable
Incl. motion detector
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 79.2 x 24 x 120 cm
- Feed length
2.5 m
- Wireless charging
No
n.rel.
- Light bulb included
Yes
- Width
24 cm
- Height
120 cm
- Length
79.2 cm
- Depth
3.1 cm
Documents & Downloads
Datasheet
Datasheet 3165321 Maul 8258902 LED surface-mount light LED (monochrome) Bulb to be changed by qualified electrician 18 W White
User & Safety Instructions
User & Safety Instructions 3165321 Maul 8258902 LED surface-mount light LED (monochrome) Bulb to be changed by qualified electrician 18 W White
Description
Powerful aluminum design light with modern light management. Constant-light regulation through motion and daylight sensor. Colour temperature and illumination level (dimmer) can be set continuously. Large light head: For double workstations & light on the entire table surface. Control separately: Direct light for working area and indirect light for room lighting, radiation up 80% and down 20%. High energy efficiency, modern LED technology. GS mark, technical safety concept made by MAUL.
- Designed by MAUL: Developed and constructed at the location of Germany
- Motion sensor: Automatically dims the light after 30 min. And shut-off after another 30 minutes Without motion detection
- Daylight sensor: Light output of the lamp changes depending on the level of lighting
- High quality aluminum column and head
- Large lamp head: Protrudes 80 cm over the desk
- Lamp head closed
- Practical: Diffuser for low shadow
- Zero power consumption in the switched off state by on and off switch
- The light source and operating device can be replaced by an electrician
- Packaging recyclable.
This text is machine translated.
- Designed by MAUL: Developed and constructed at the location of Germany
- Motion sensor: Automatically dims the light after 30 min. And shut-off after another 30 minutes Without motion detection
- Daylight sensor: Light output of the lamp changes depending on the level of lighting
- High quality aluminum column and head
- Large lamp head: Protrudes 80 cm over the desk
- Lamp head closed
- Practical: Diffuser for low shadow
- Zero power consumption in the switched off state by on and off switch
- The light source and operating device can be replaced by an electrician
- Packaging recyclable.
This text is machine translated.
