Maul 8263602 LED magnifying lamp MAULmacro, with base, white Magnification=1.75 x 12.7 cm 2021 Energy Efficiency Class E
EAN:
Part number:
Item no:

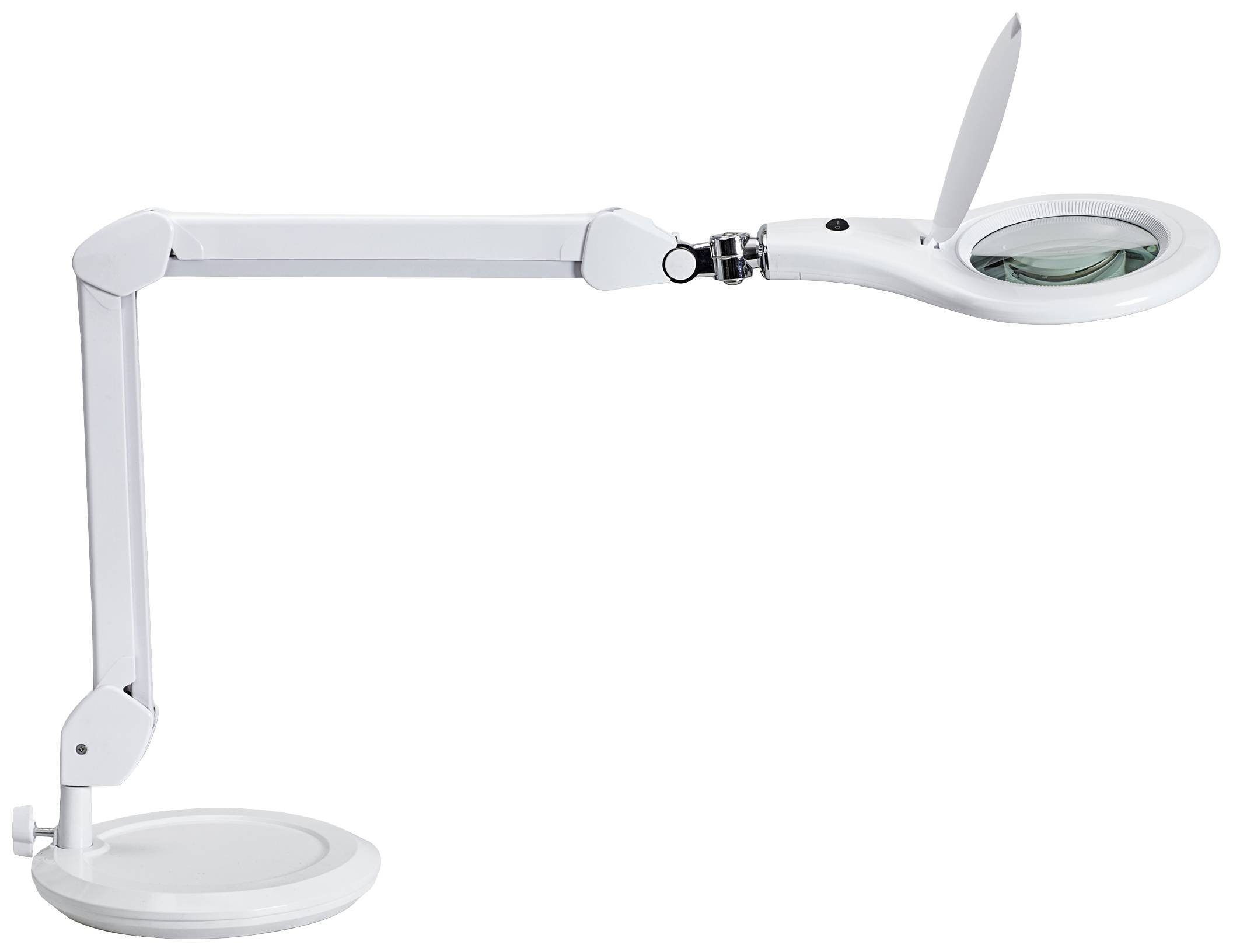

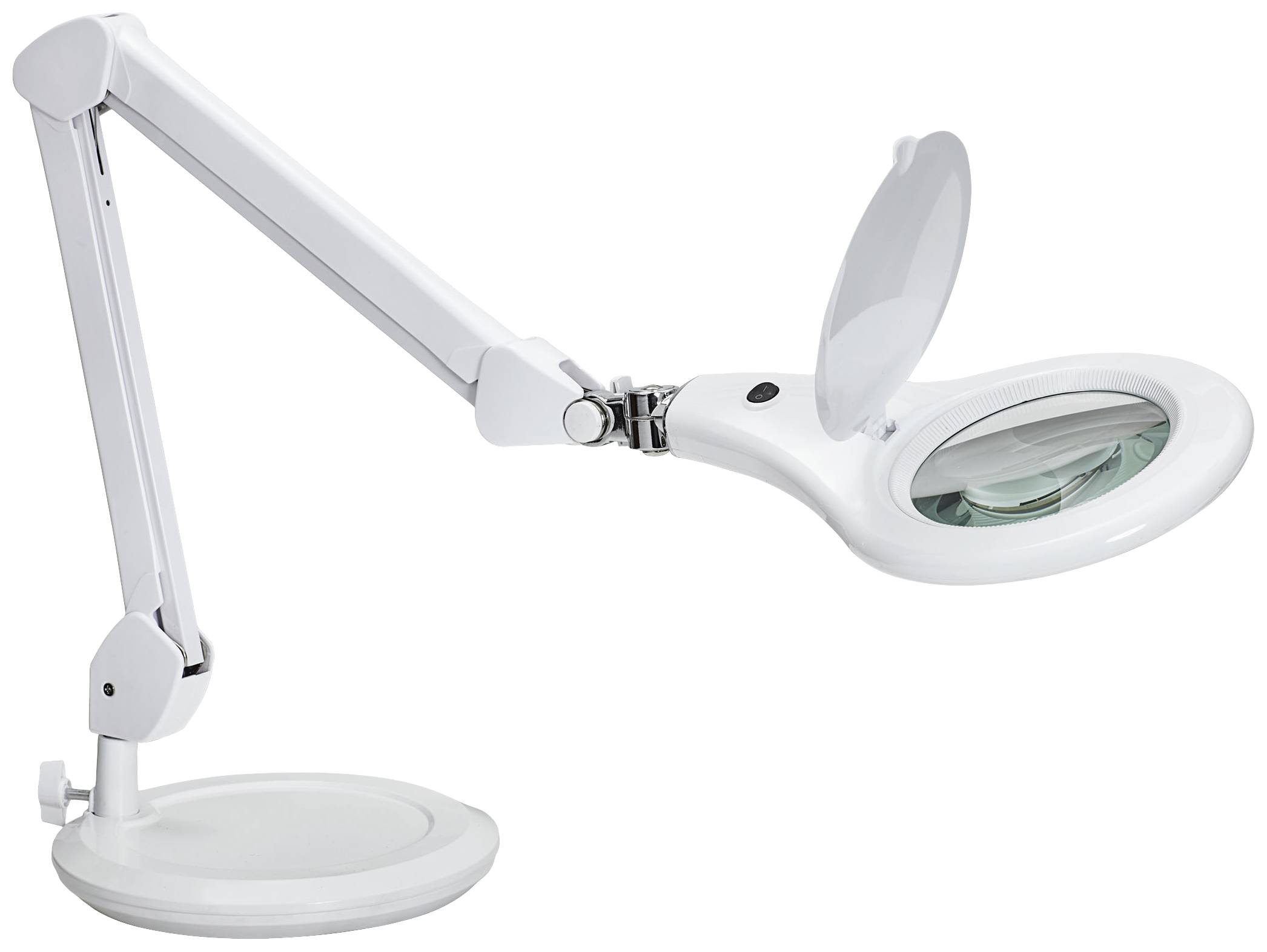

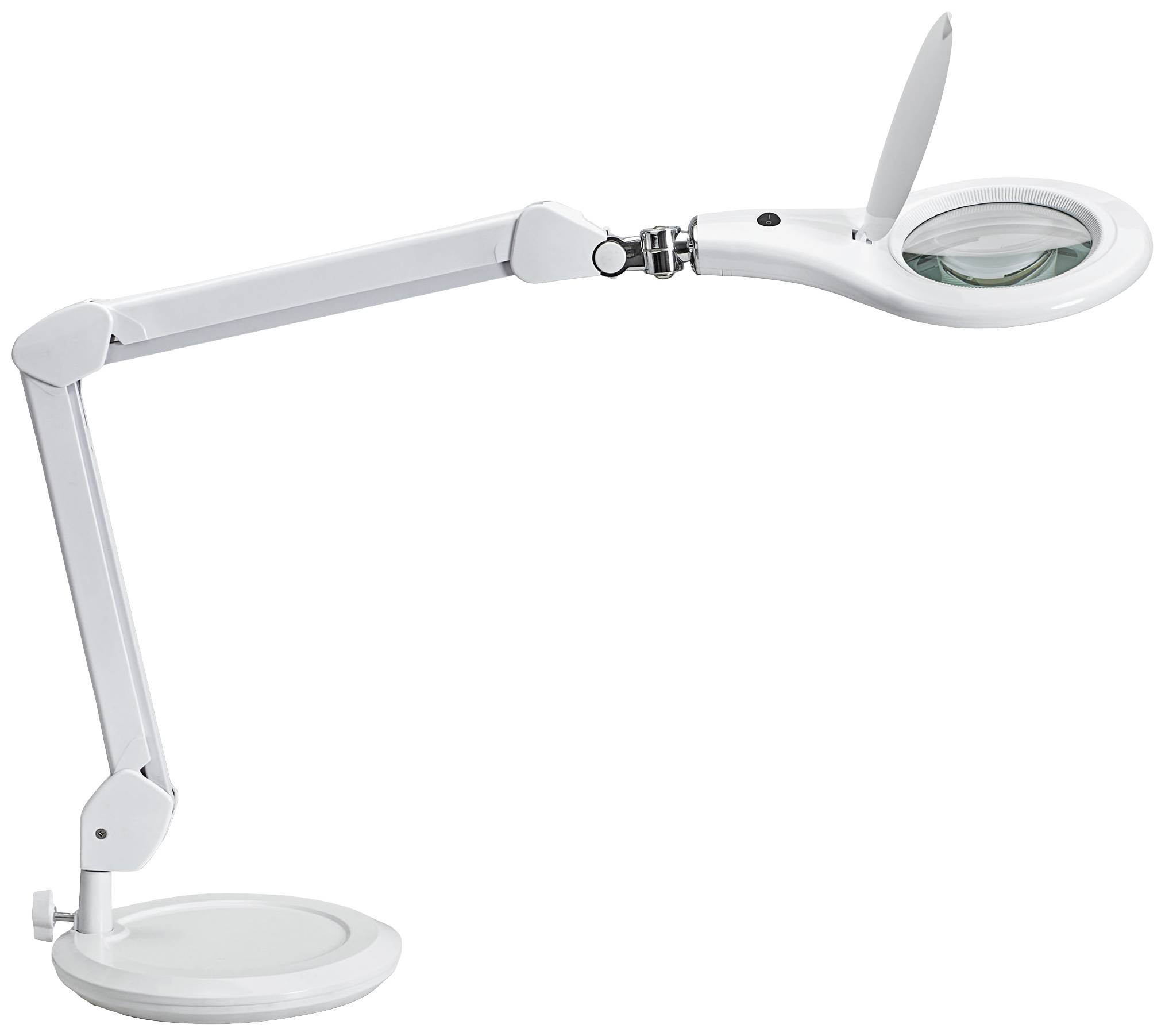

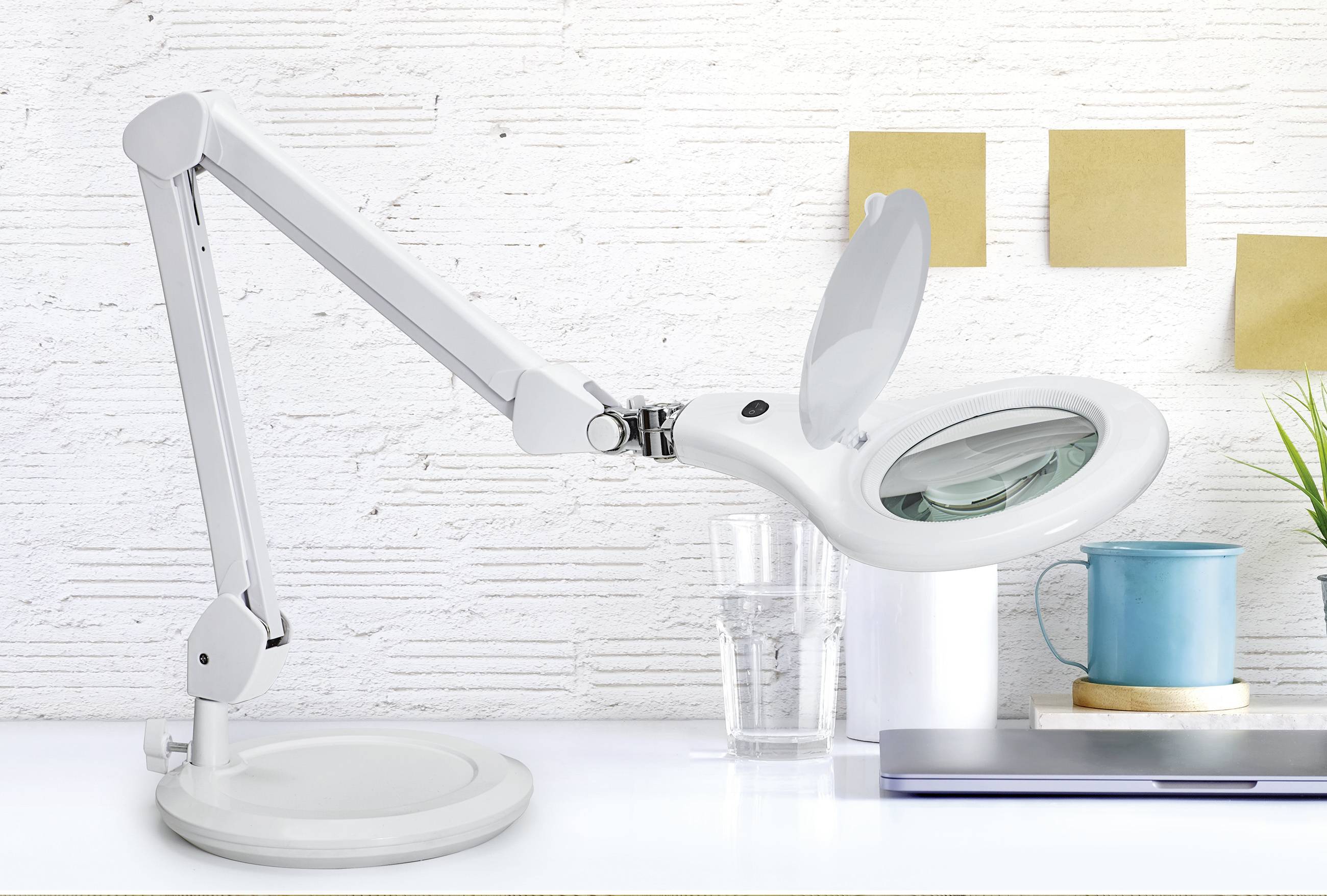

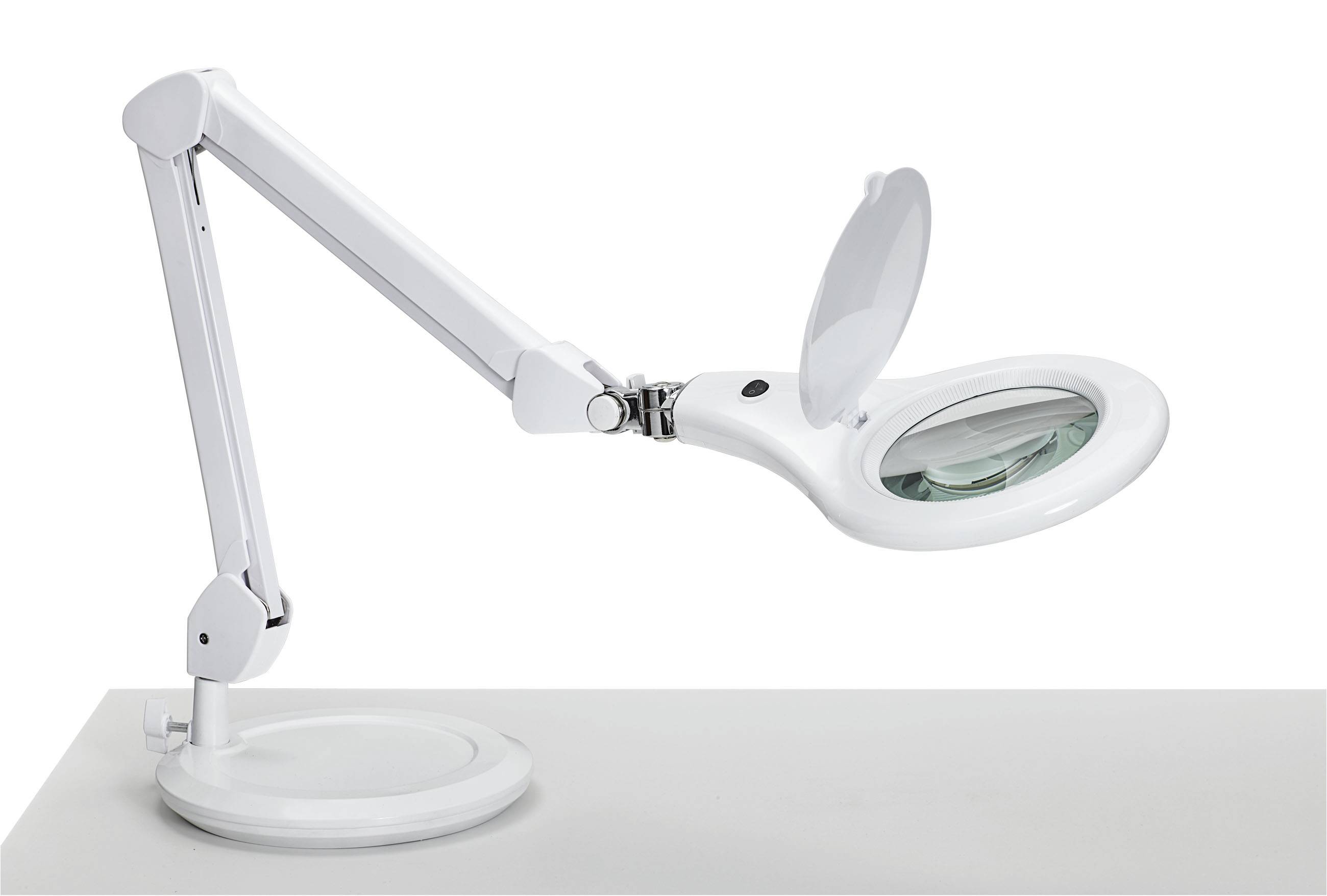

LED magnifying lamp MAULmacro, with base, white
Highlights & Details

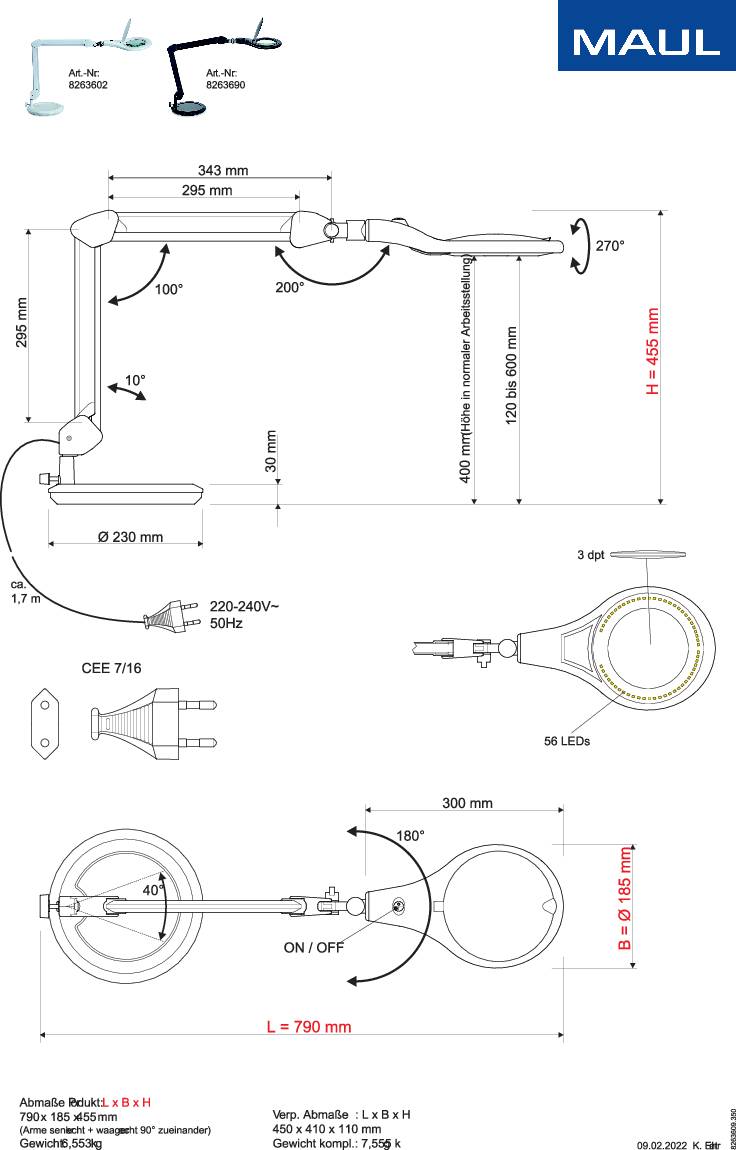

- Dimensions: Head 30 x 18.5 cmNominal light current 922 lumens3 diopter lenses (1.75-fold magnification), Ø 5" (12.7 cm), lens area of 144 cm2
Technical specifications
- Product type
LED illuminated magnifier
- Magnification
1.75 x
- Bulb type
LED (monochrome)
6500 K
- Lens size
(Ø) 12.7 cm
E (A - G)
- No. of LEDs
1
- Fastening method
Base
- Illuminance
2200 lx
- Operating voltage
230 V
- Energy consumption
8 kWh/1000h
- Factory colour
White
8 W
- Colour
Cool white
- Total luminous flux
922 lm
- Lens Ø
12.7 cm
- Height
45.5 cm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2753619 Maul 8263602 LED magnifying lamp MAULmacro, with base, white Magnification=1.75 x 12.7 cm 2021 Energy Efficiency Class E
User & Safety Instructions
User & Safety Instructions 2753619 Maul 8263602 LED magnifying lamp MAULmacro, with base, white Magnification=1.75 x 12.7 cm 2021 Energy Efficiency Class E
User & Safety Instructions 2753619 Maul 8263602 LED magnifying lamp MAULmacro, with base, white Magnification=1.75 x 12.7 cm 2021 Energy Efficiency Class E
Description
The design model under the magnifying lamp. Elegant: Stable Parallelogram metal arm, very variable in setting. Extremely economical: Modern LED-technology, high energy efficiency, long life of the LEDs. Guaranteed: Zero power consumption when switched off. Uniform illumination by ring-shaped LEDs. Ideal for precision work in laboratories, workshops, technical offices, medical practices. Or in the private sector for stamp collectors, precision mechanics or as reading magnifier. Technical safety concept made by MAUL. Environmentally friendly and safe packaging, recyclable. Technical safety concept Made by MAUL: No lamp or lamp will be included in our program if it has not passed intensive tests. Our team from the fields of optical, electronic and mechanical development as well as manufacturing technology ensures the safety of the LED magnifier lamp MAUL macro.
This text is machine translated.
This text is machine translated.
Features
- Double use: Magnifying glass and functional desk lampPractical: Easy to cleanProtected: Includes protective flap that prevents sun radiation and dust3 diopter lenses (1.75-fold magnification), Ø 5" (12.7 cm), lens area of 144 cm2Practical: Diffuser for small shadowsThree-dimensional adjustable lamp headRobust metallic armReplacement of light source and operating device possible by an electricianIllumination intensity light: 2,220 lux at 35 cm distanceColour temperature (per light source): 6,500 Kelvin (daylight white)Number of light sources: 1Energy efficiency (per light source): E (spectrum A to G)Weighted energy consumption (per light source): 8 kWh/1000 hLifespan L70B50 (per light source):50,000 hoursUtility light current (per light source): 922 lumensMaterial: Head: Plastic - arm: MetalDimensions: Head 30 x 18.5 cmMotion: Head: Tilt, rotationPosition switch: Light headStable pedestal made of plastic, 23 x 3 cm with loading inlayArm: Length below 29.5 cm, length above 29.5 cm. Height: 45.5 cmArm: Rotating, tilting
Scope of delivery
- LED magnifying lamp MAULmacro, with base, white
- User manual.
