Max Hauri 165790 Bulb holder E-27
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

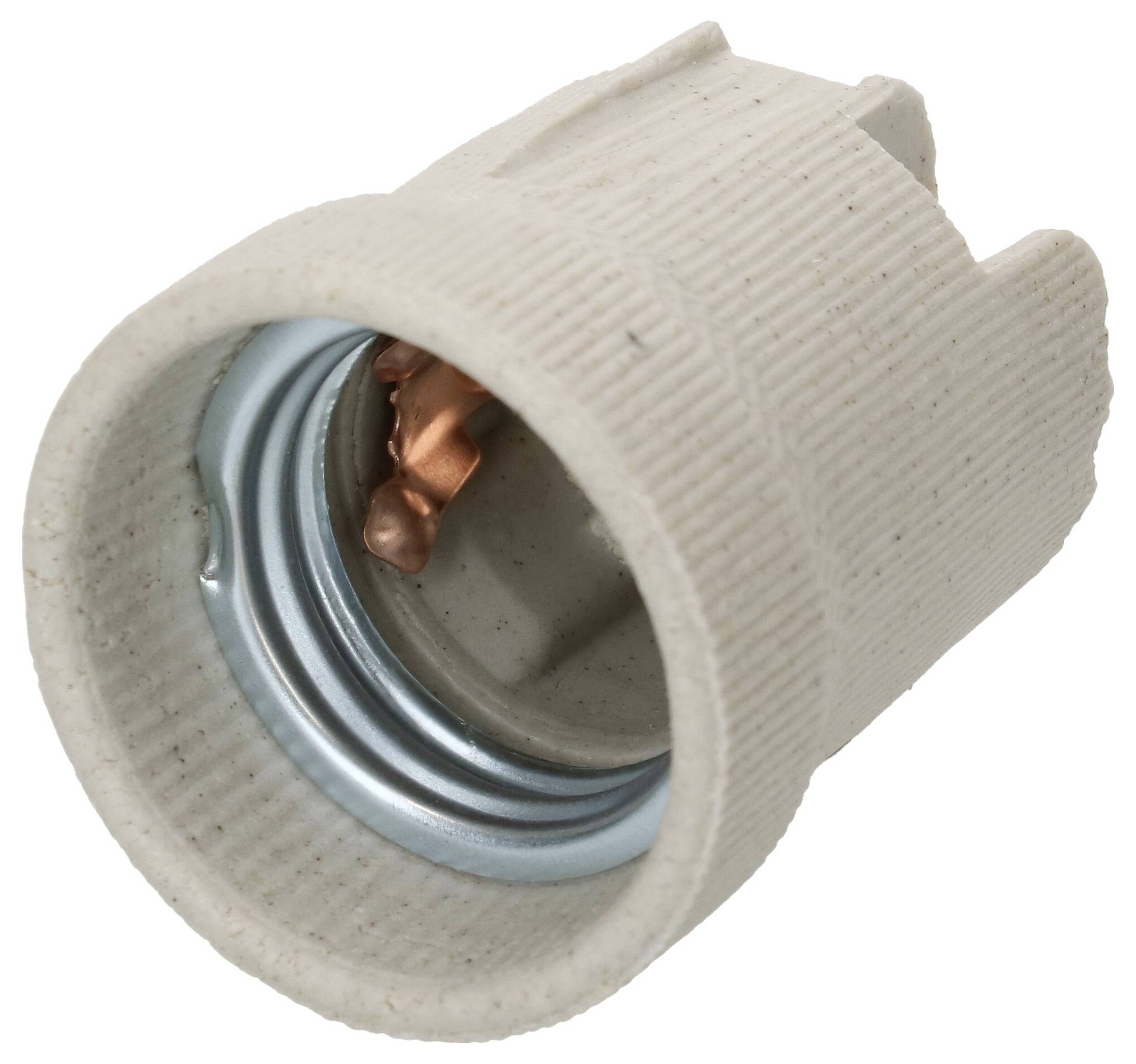

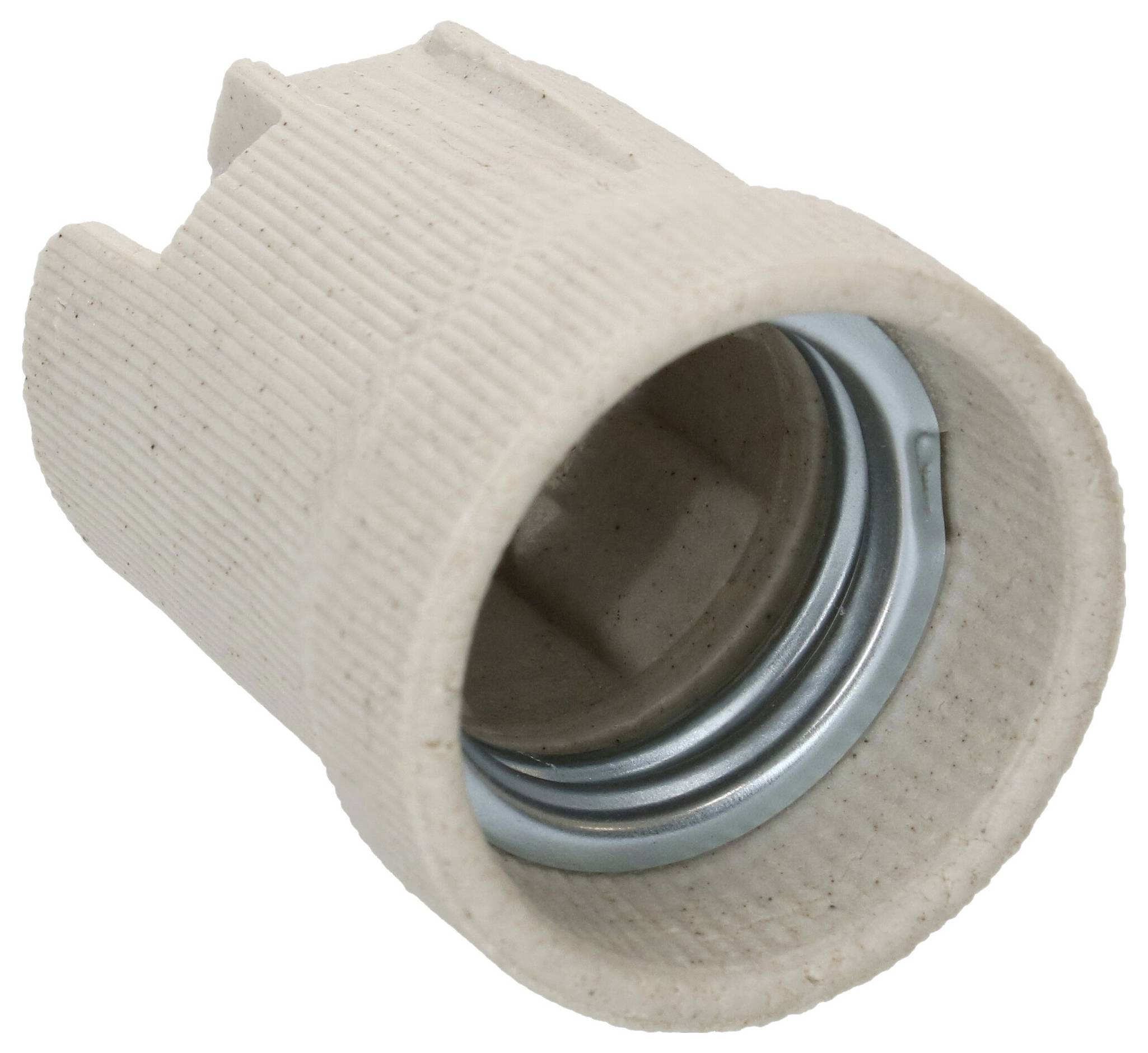

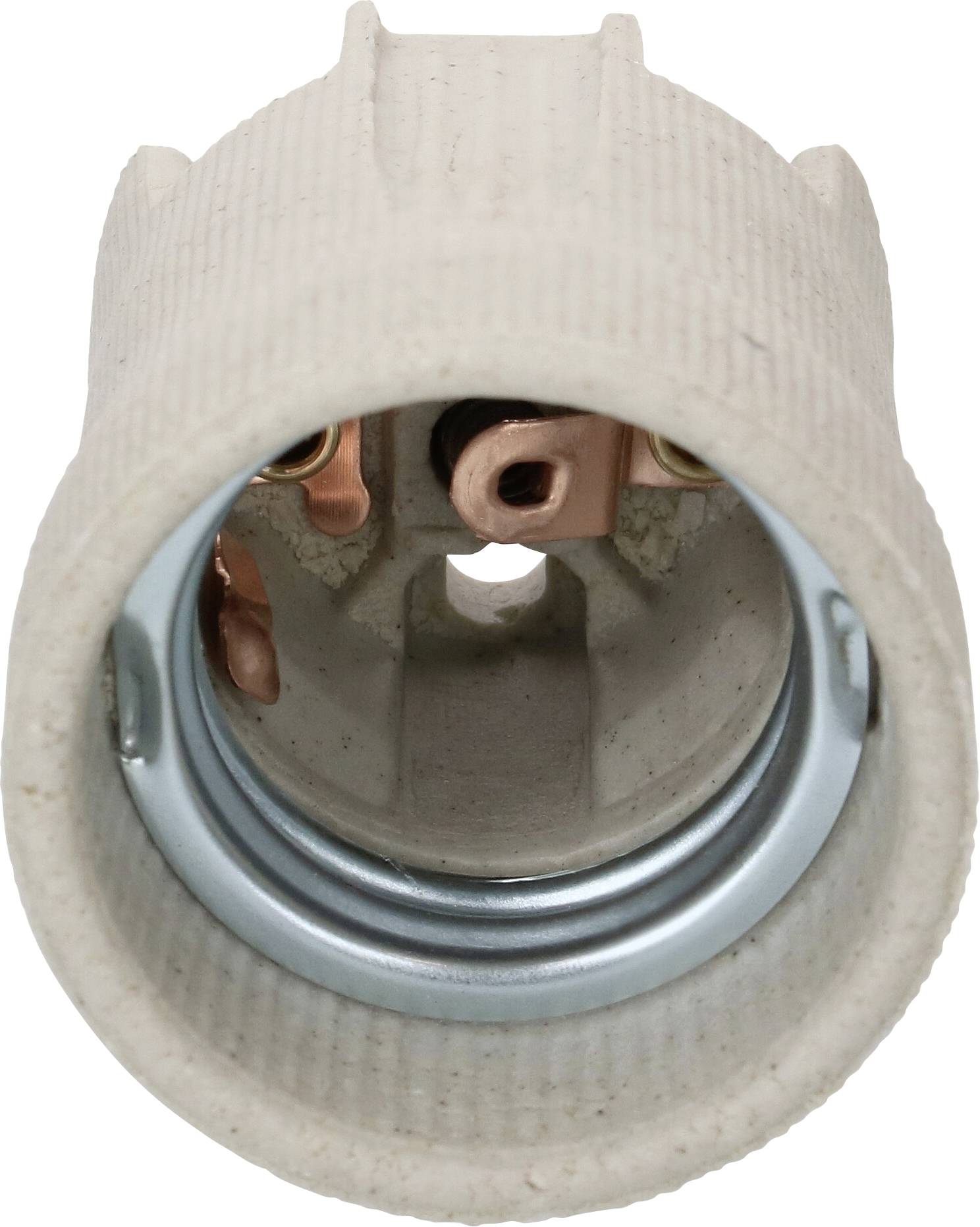

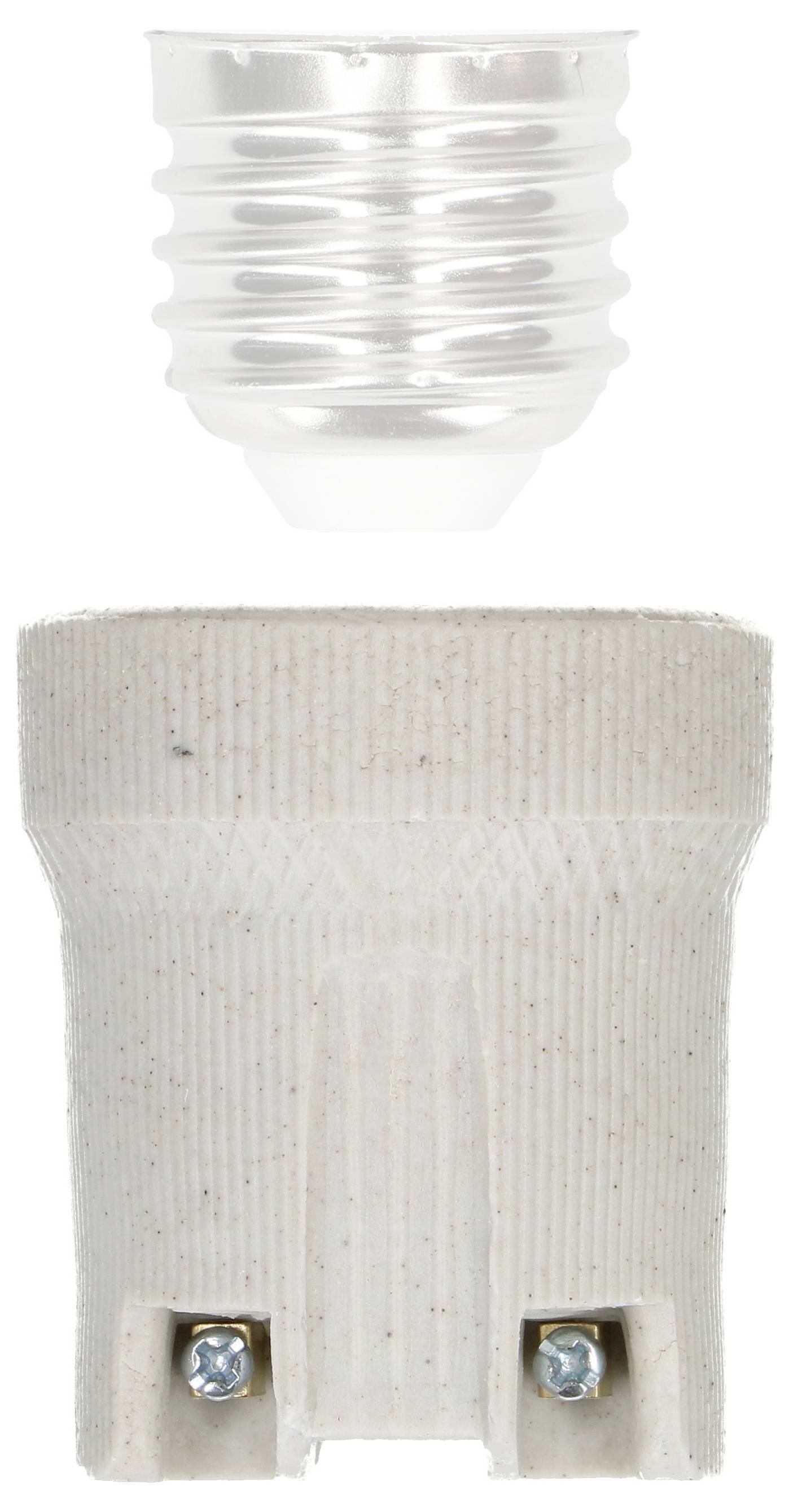

E27 socket porcelain 5kV/through holes for M4 screws
- Made of high quality porcelain
- For all standard E27 bulbs
- Easy mounting with M4 screws
Technical specifications
- Protection class: IP20
- Material: Ceramic / porcelain
- Product type
Bulb holder
E-27
- Factory colour
White
- Dim
(Ø x L) 40 mm x 46 mm
- Length
46 mm
- (Ø)
40 mm
Documents & Downloads
Datasheet
Datasheet 3396720 Max Hauri 165790 Bulb holder E-27
User & Safety Instructions
User & Safety Instructions 3396720 Max Hauri 165790 Bulb holder E-27
Description
E27 socket porcelain 5kV/through holes for M4 screws

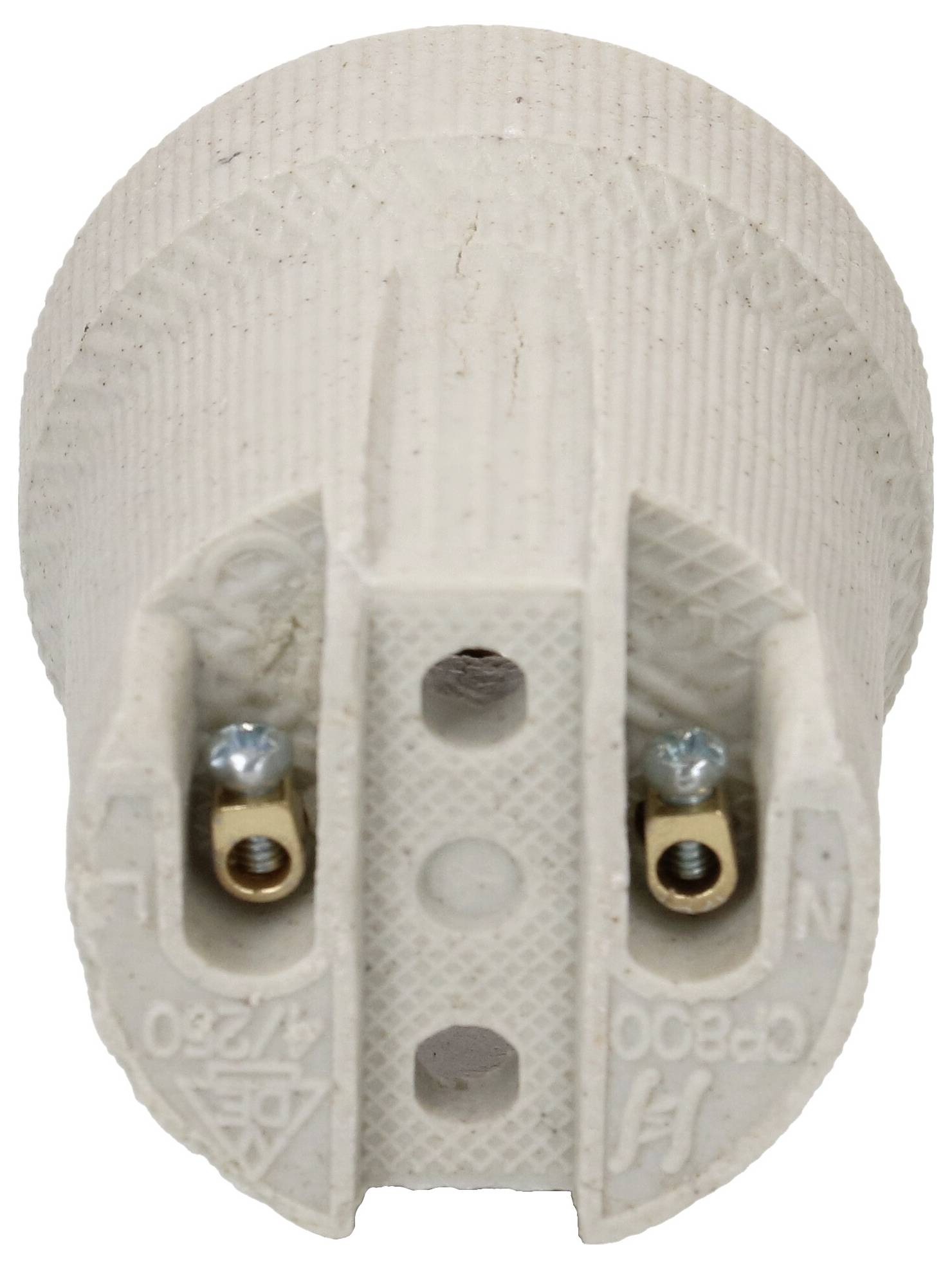

This socket made of porcelain with screw terminals 0.5 - 2.5 mm² is suitable for fixing and supplying power to all common lamps with E27 sockets (incandescent, halogen, energy-saving and LED lamps) with 5 kV. The socket is fastened using two through holes for M4 screws. This socket is Ideal for the creation of your own lamps or for freely suspended lamps without shield. The rustic surface of the porcelain gives the frame a simple appearance and encourages its own further design.
This text is machine translated.
This socket made of porcelain with screw terminals 0.5 - 2.5 mm² is suitable for fixing and supplying power to all common lamps with E27 sockets (incandescent, halogen, energy-saving and LED lamps) with 5 kV. The socket is fastened using two through holes for M4 screws. This socket is Ideal for the creation of your own lamps or for freely suspended lamps without shield. The rustic surface of the porcelain gives the frame a simple appearance and encourages its own further design.
This text is machine translated.
