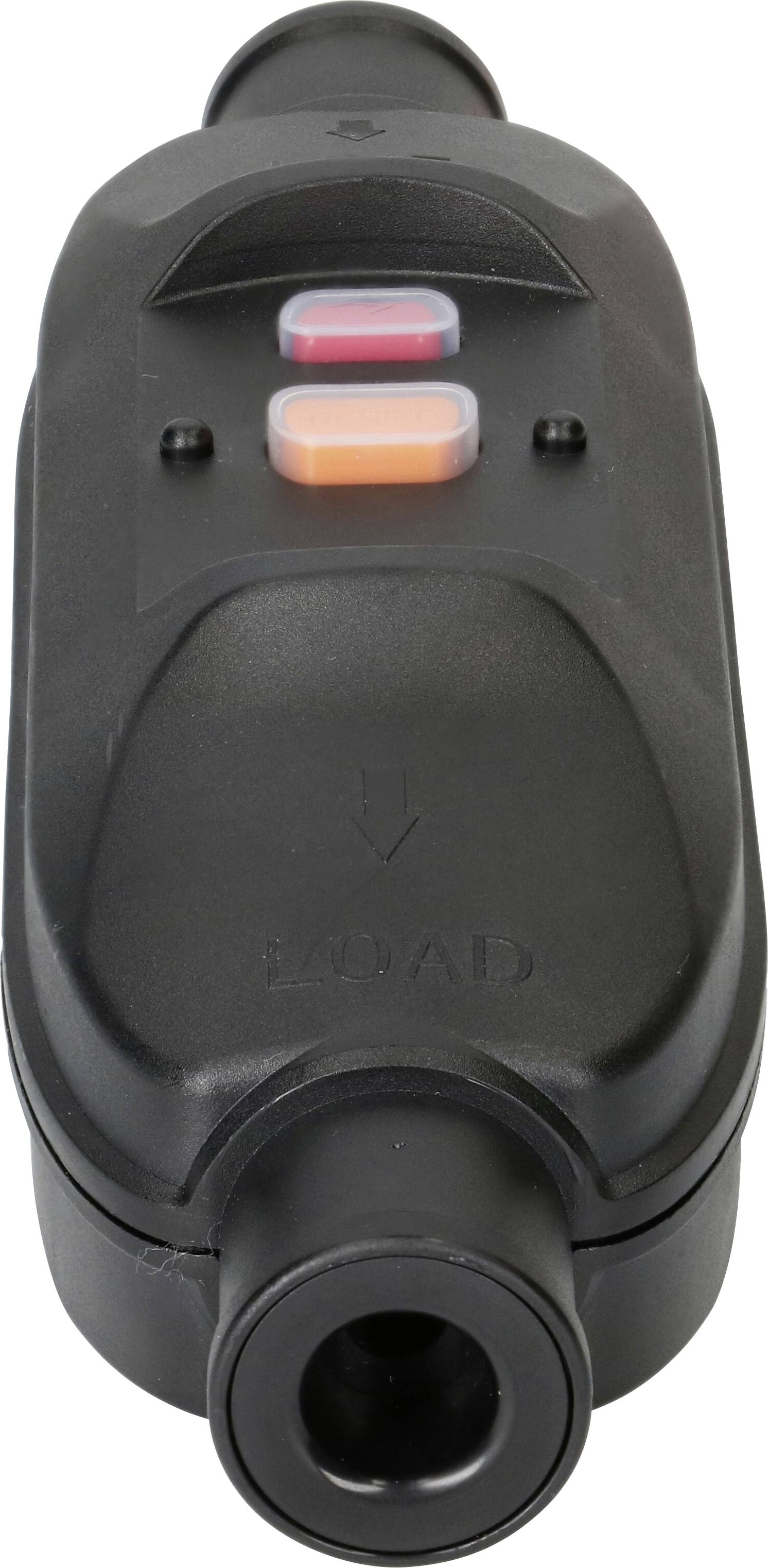

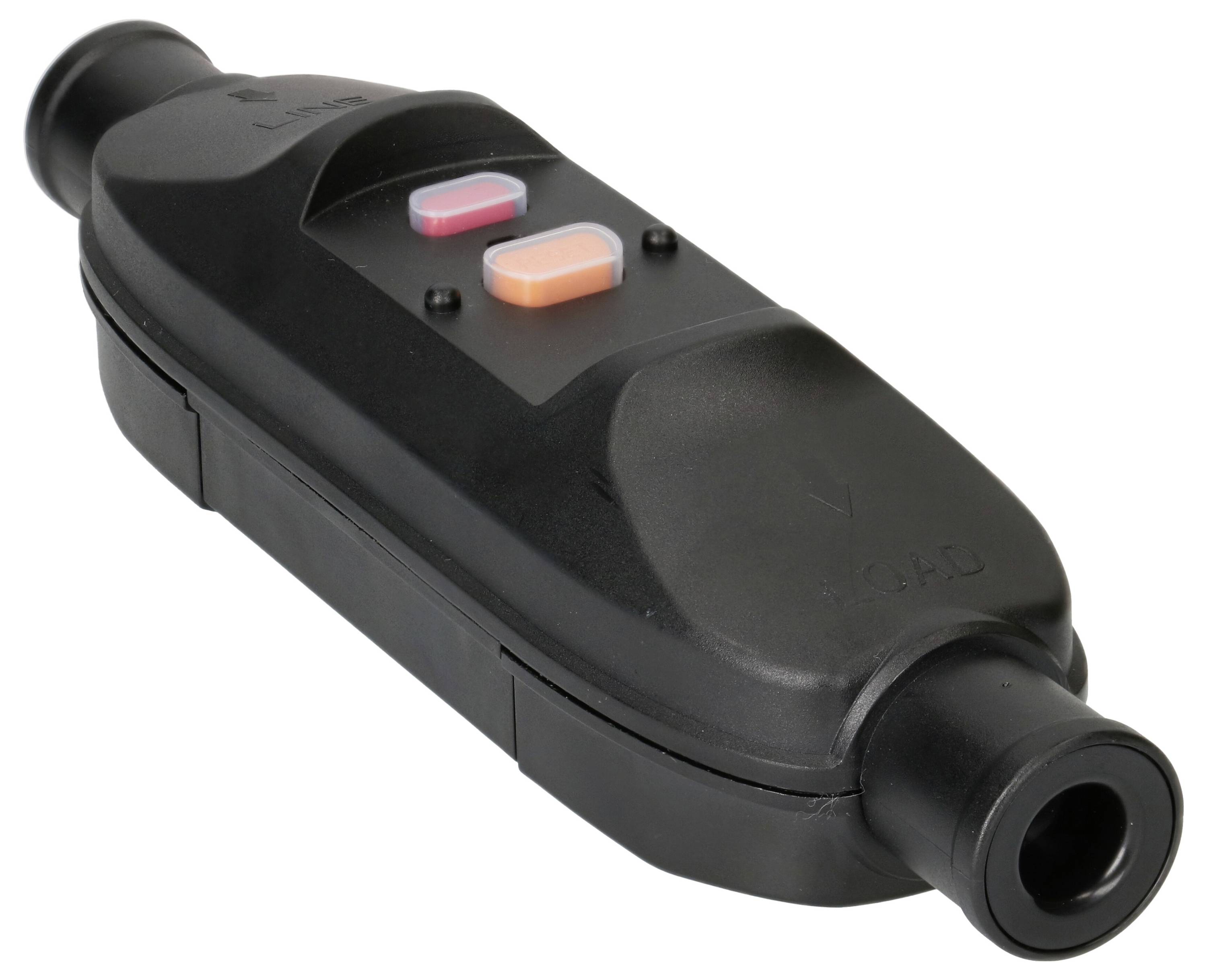

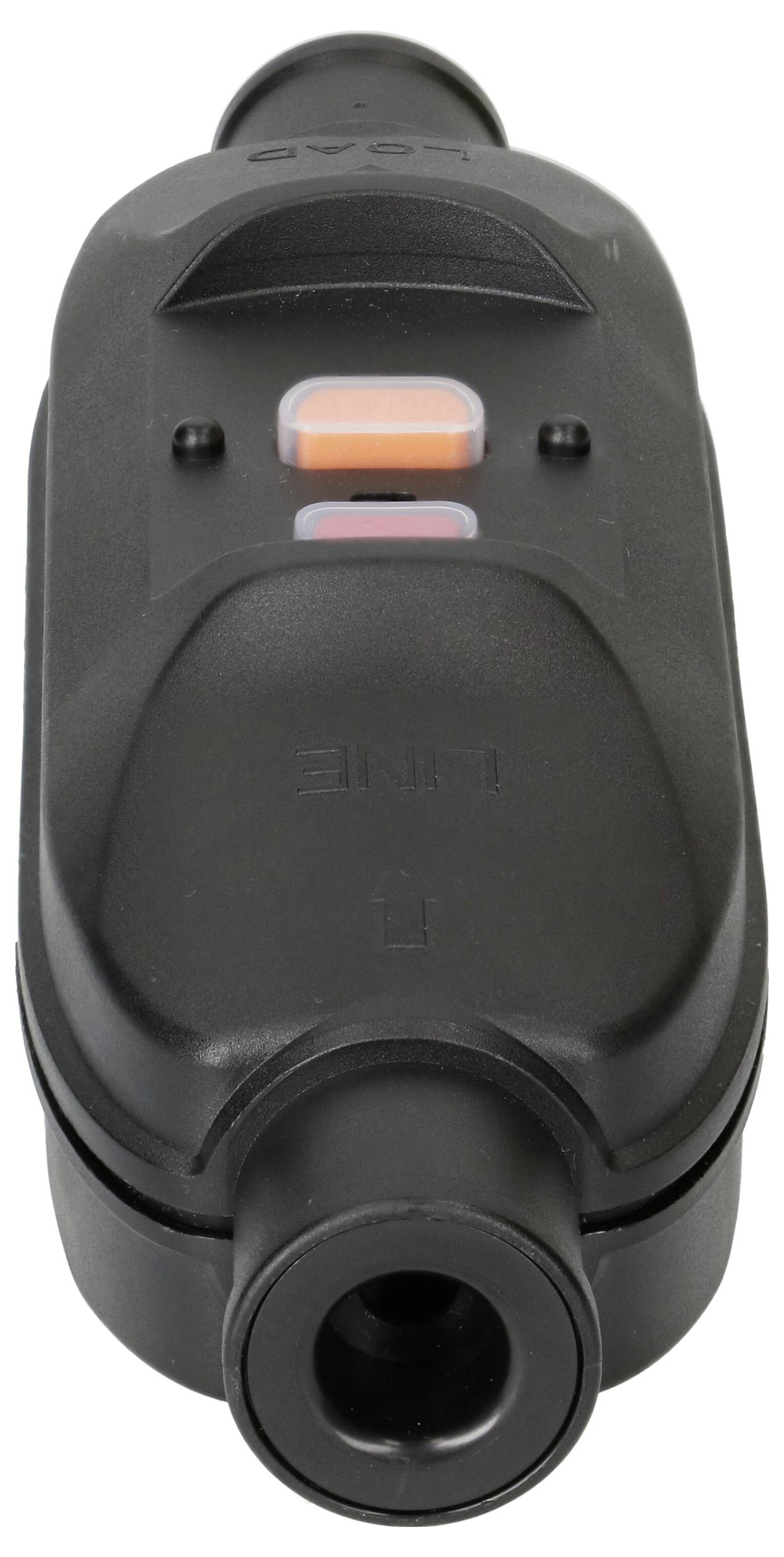

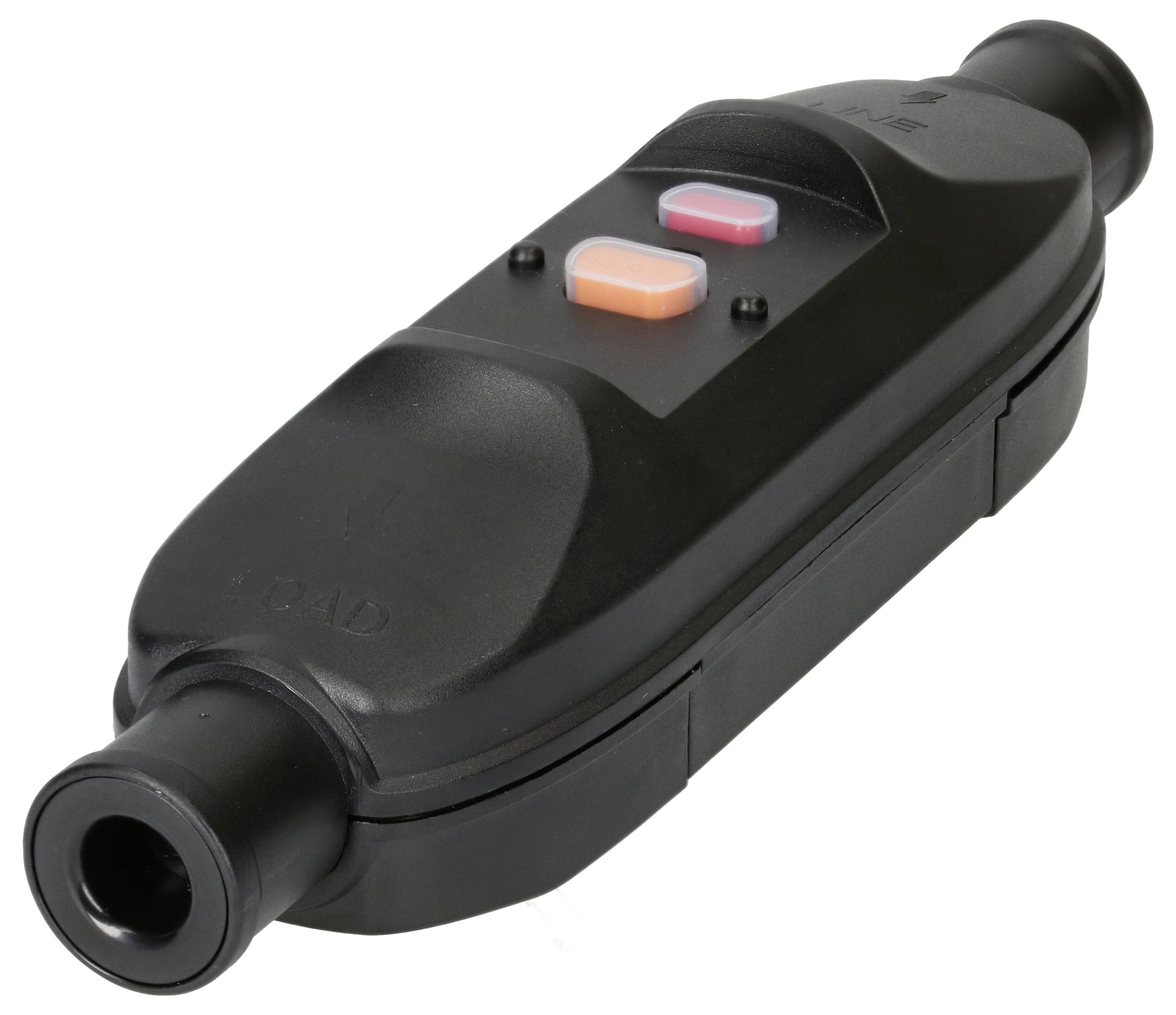

Max Hauri 168565 RCCB in-line switch 230 V Black IP66
EAN:
Part number:
Item no:
Product type
RCCB in-line switch
Enclosure material
Plastic
Nominal voltage
230 V
Load (max.)
16 A
Factory colour
Black
Datasheet (PDF)
Highlights & Details
FI safety-intermediate switch 16A 30mA black
- Increased safety when working with electronic devices to prevent personal injury
- Disconnects consumers from the mains in the event of fault currents
- Dust and strong water jet protection (IP66)
- Test may be performed under voltage
- Control panel shows at any time whether the switch is in operation
Technical specifications
- Trigger 30 mA
- Product type
RCCB in-line switch
- Enclosure material
Plastic
- Nominal voltage
230 V
- Load (max.)
16 A
- Factory colour
Black
IP66
- Dim
(L x W x H) 210 x 58 x 50 mm
- Width
58 mm
- Height
50 mm
- Length
210 mm
- Residual current type
A
Documents & Downloads
Datasheet
Datasheet 3396794 Max Hauri 168565 RCCB in-line switch 230 V Black IP66
User & Safety Instructions
User & Safety Instructions 3396794 Max Hauri 168565 RCCB in-line switch 230 V Black IP66
Description
FI person-protection intermediate switch IP66 / color: Black / voltage: 230V / operating current: 16A / rated fault current: 30mA type A pulse current sensitive / switching time: <30 ms / ambient temperature: -25°C to +40°C / for cable 6.2-12mm

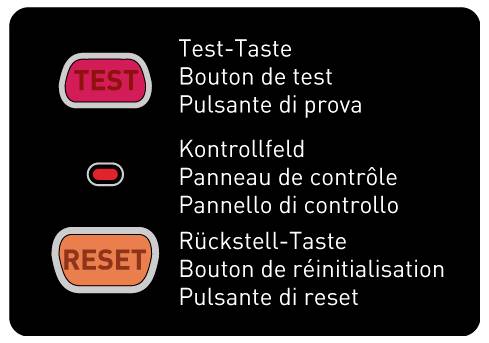

This RCD intermediate switch is used between a power source and a consumer to prevent personal injury. By disconnecting the connected device from the mains during fault currents, safety can be increased when working with electrical devices. Due to the degree of protection IP66, this RCD adapter guarantees the protection against dust (IP6X) and strong jet water (IPX6). Thus, it can be used indoors and outdoors in temperatures from - 25 to 40° C and is suitable for cables with a diameter of 6.2 to 12 mm as well as an operating current of 16 A. The switch can be tested under voltage using the "Test" and "Reset" buttons on it and after a break. On the control panel, you can see at any time whether the switch is in operation.
This text is machine translated.
