Max Hauri 168990 Ceiling rosette (Ø x H) 83 mm x 21 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Ceiling rosette round 2 mounting holes light GRAY
- With cable feeder
- Halogen-free
- UV-resistant
Technical specifications
- Colour: Light gray
- Net weight: 0,021 kg
- Material: Polycarbonate (PC)
- Length: 83.0 mm
- Width 83.0 mm
- Height: 21.0 mm
- Function / Specification: With cable entry; halogen-free; UV-resistant
- Design of surface: Matt
- Product type
Ceiling rosette
- Factory colour
Light grey
- Content
1 pc(s)
- Dim
(Ø x H) 83 mm x 21 mm
- Height
21 mm
- (Ø)
83 mm
Documents & Downloads
Datasheet
Datasheet 3396807 Max Hauri 168990 Ceiling rosette (Ø x H) 83 mm x 21 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3396807 Max Hauri 168990 Ceiling rosette (Ø x H) 83 mm x 21 mm 1 pc(s)
Description

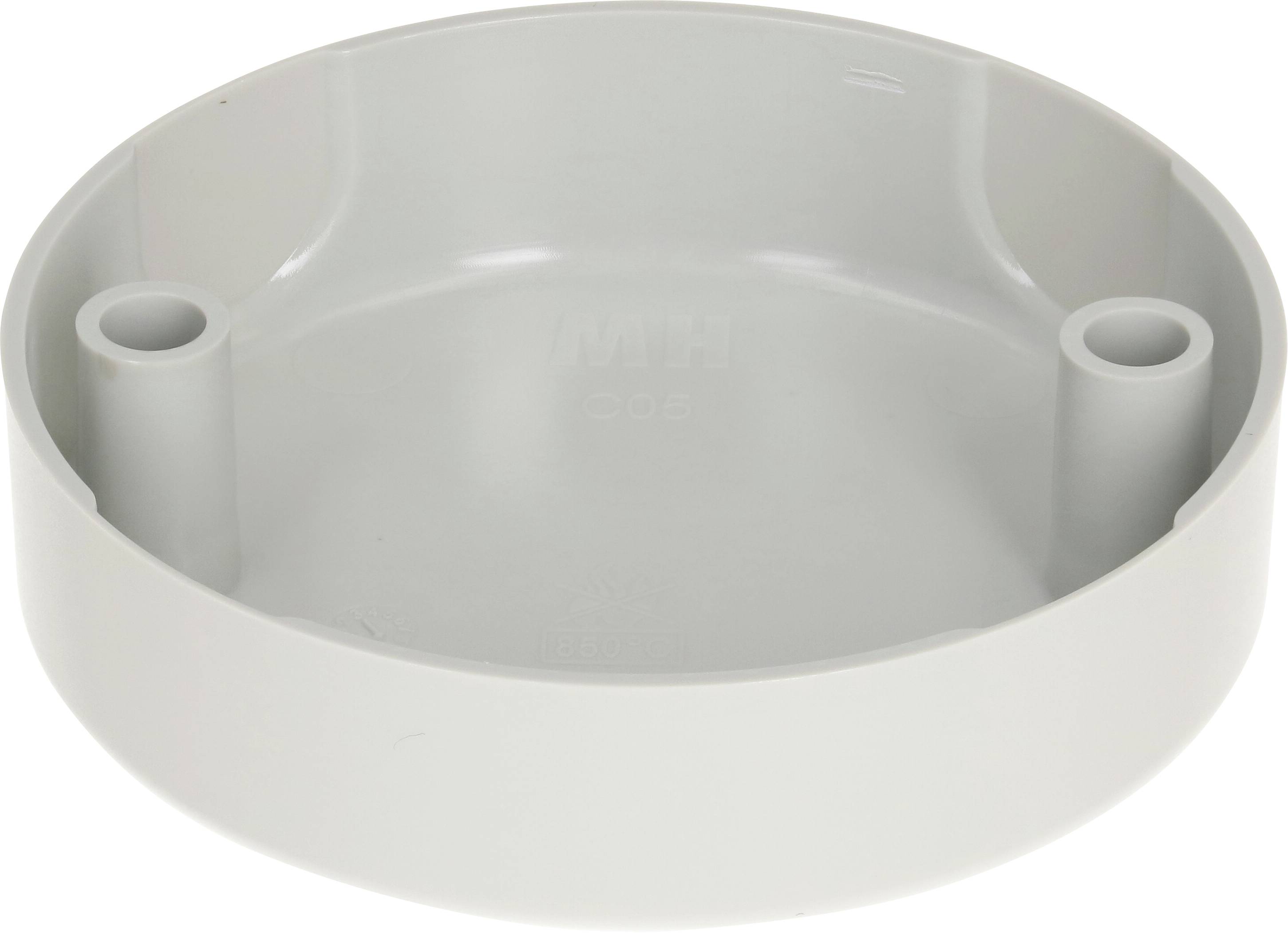

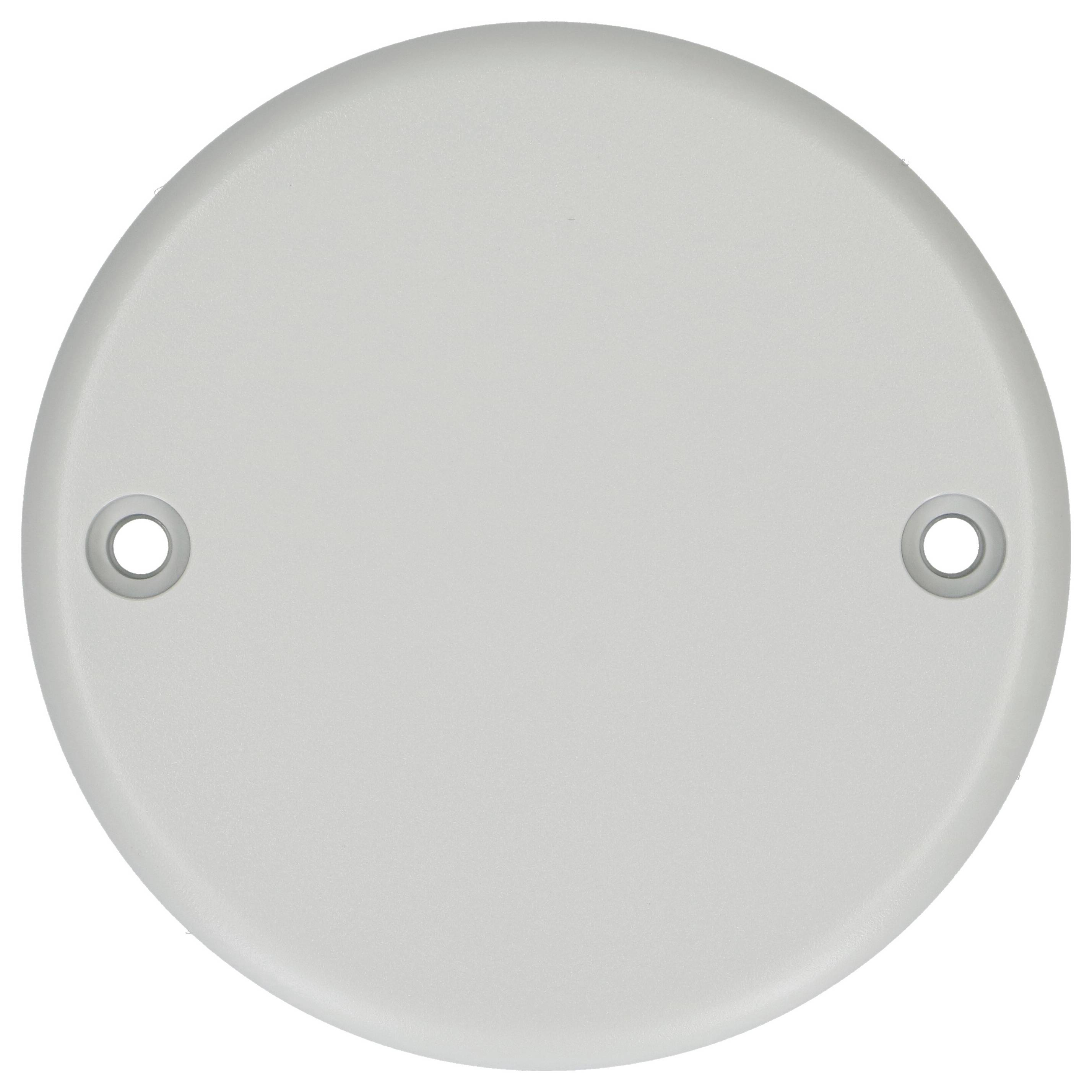

Ceiling rosette / round / additional function: With 2 mounting holes, with 4 x opening removable / color: Light gray (RAL7035) / Material: PC / halogen-free, UV-resistant / mass: 83x21 mm
This ceiling rose is used to cover and protect unused recessed boxes on the ceiling. The openings that can be broken from the side enable the insertion of a connection cable, while the wiring is hidden. Attaching the ceiling rose is easy using the two mounting holes. With its matt surface and the reduced design language, this ceiling rosette convinces in every living environment.
This text is machine translated.
This ceiling rose is used to cover and protect unused recessed boxes on the ceiling. The openings that can be broken from the side enable the insertion of a connection cable, while the wiring is hidden. Attaching the ceiling rose is easy using the two mounting holes. With its matt surface and the reduced design language, this ceiling rosette convinces in every living environment.
