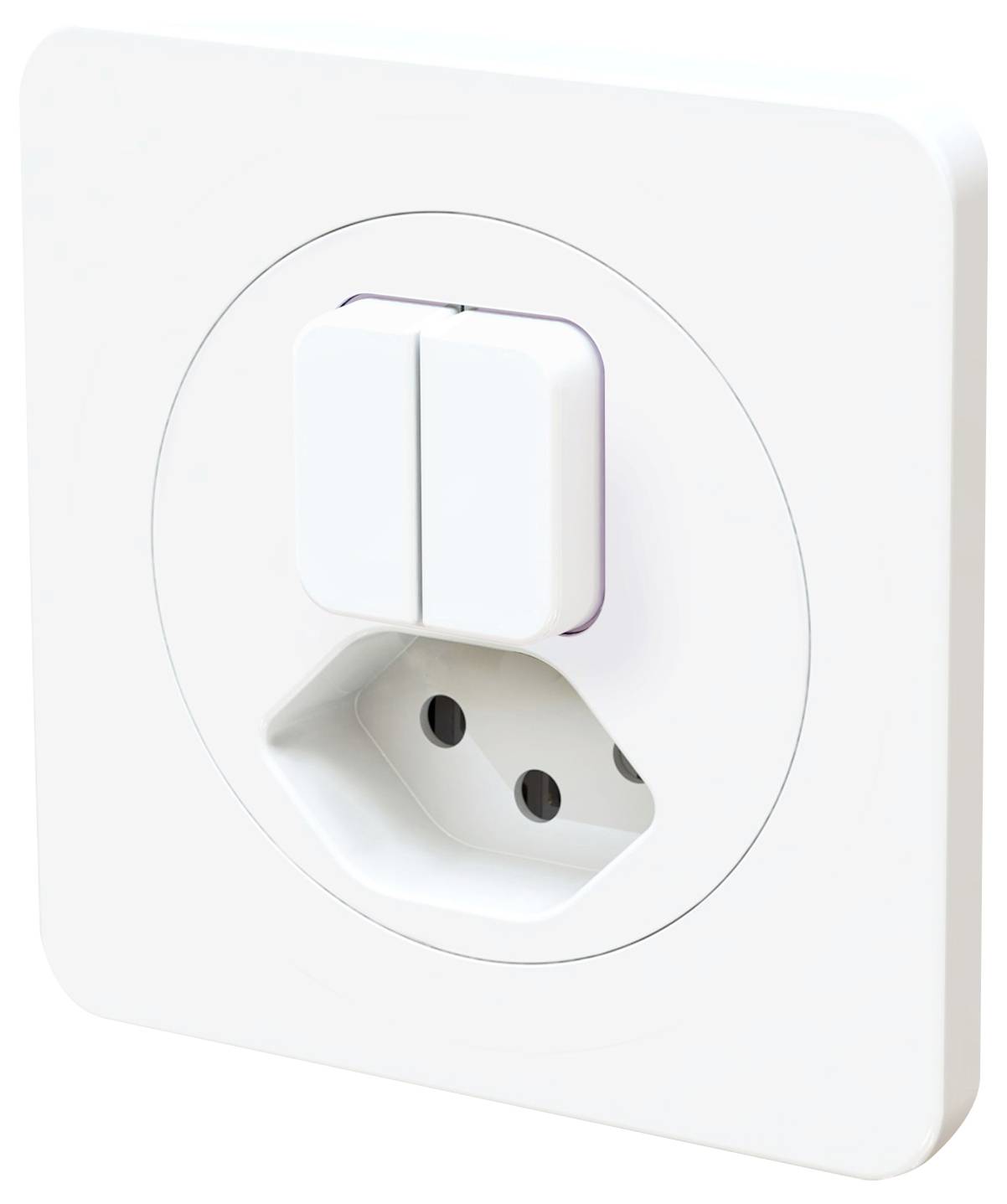

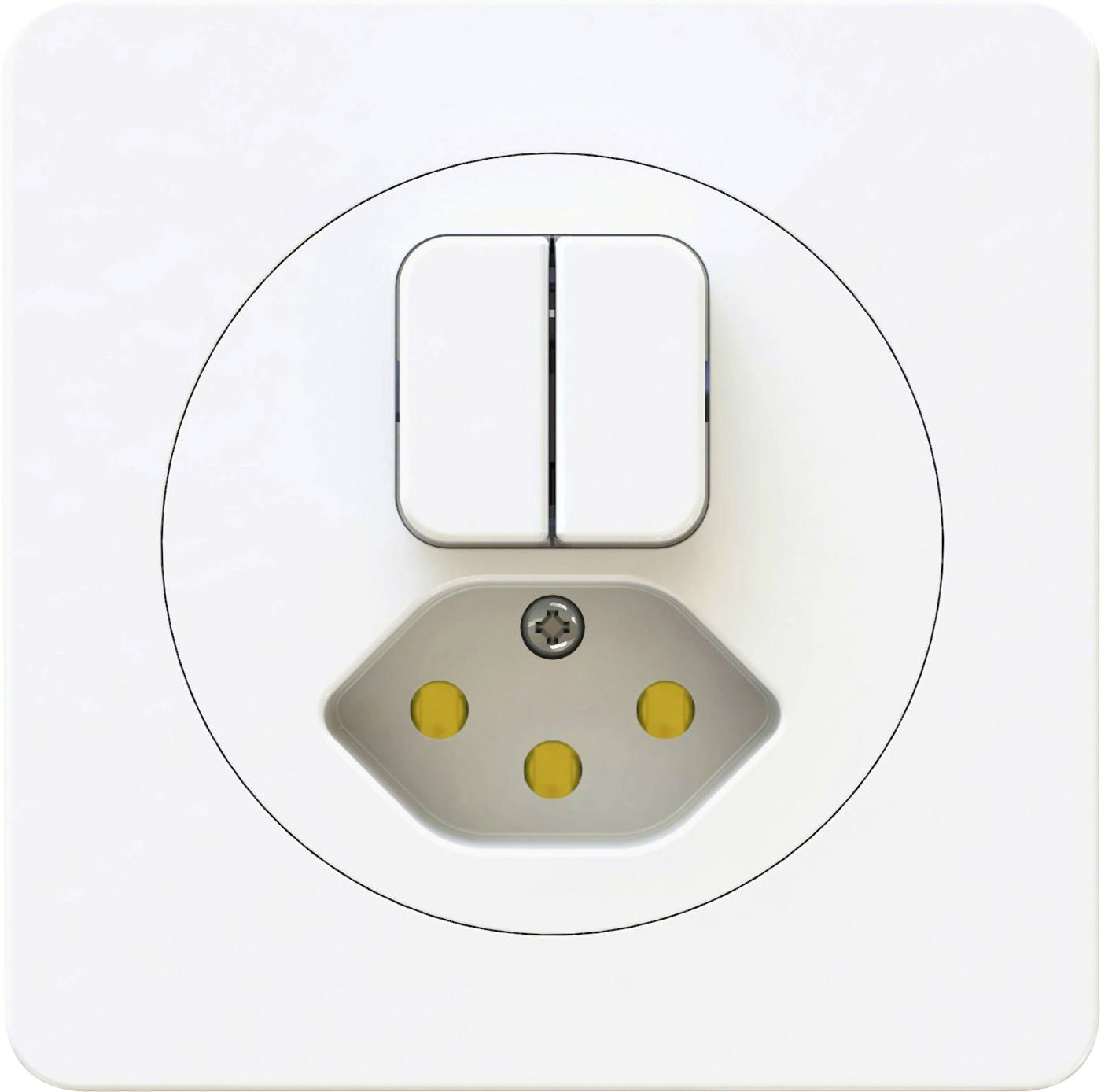

Max Hauri 170609 Switch/socket combo IP20 White (glossy)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Small combination scheme 3+3 / Type 13 Gr.1x1 UP maxONE white
- Scheme 3+3 / Type 13
- Size 1x1
- With plug-in terminals
Technical specifications
- Product type
Switch/socket combo
- Outlets
1
- Nominal voltage
230 V
- Nominal current
10 A
- Mounting type
Flush mount
- Mounting depth
37 mm
- Factory colour
White (glossy)
IP20
- Dim
(L x W x H) 90 x 90 x 51 mm
- Length
90 mm
- Width
90 mm
- Height
51 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3396855 Max Hauri 170609 Switch/socket combo IP20 White (glossy)
User & Safety Instructions
User & Safety Instructions 3396855 Max Hauri 170609 Switch/socket combo IP20 White (glossy)
Description
Small combination Double pressure switch scheme 3+3 / socket type 13 / size 1x1 / design: Flush / current: 10A / voltage: 250V / LED load max.: 100W / additional function: With plug-in terminal/ mounting height: 14mm / mounting depth: 37mm / color: White / IP-protection type: IP20 / maxONE
This mini unit is mounted in a connector socket in the wall. It is made up of a type 13 socket and a pattern-3 pressure switch, which enables the switching on and off from one or two locations. Thanks to the safety mark S+ maximum security. MaxONE plug socket and switch range is distinguished by its simple aesthetics and large functionality. Installation is very easy thanks to completely pre-assembled modules with plug-in contacts and is therefore aimed at both beginners and professionals. The modern and simple design impresses in every living environment.
This text is machine translated.
This mini unit is mounted in a connector socket in the wall. It is made up of a type 13 socket and a pattern-3 pressure switch, which enables the switching on and off from one or two locations. Thanks to the safety mark S+ maximum security. MaxONE plug socket and switch range is distinguished by its simple aesthetics and large functionality. Installation is very easy thanks to completely pre-assembled modules with plug-in contacts and is therefore aimed at both beginners and professionals. The modern and simple design impresses in every living environment.
