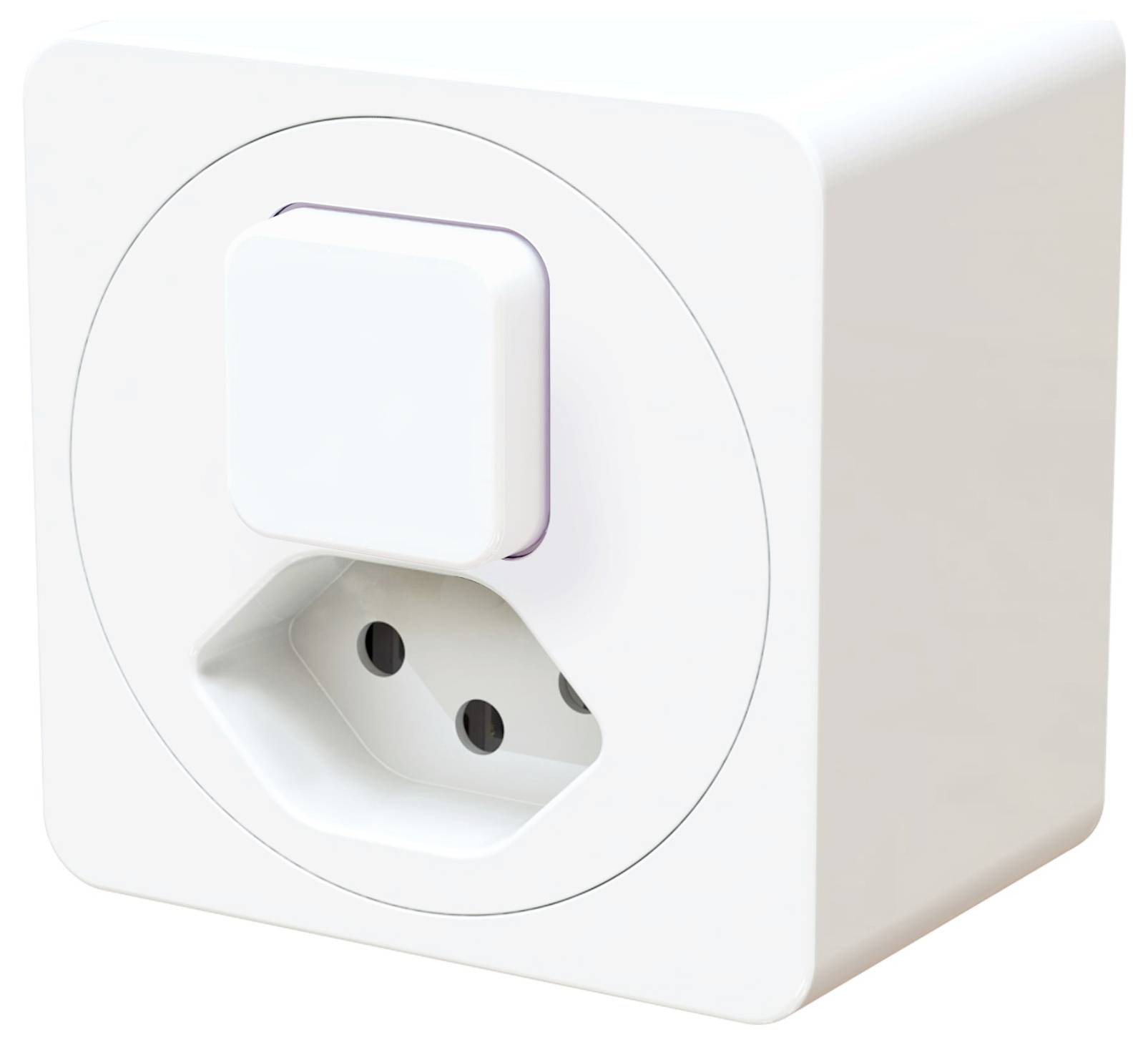

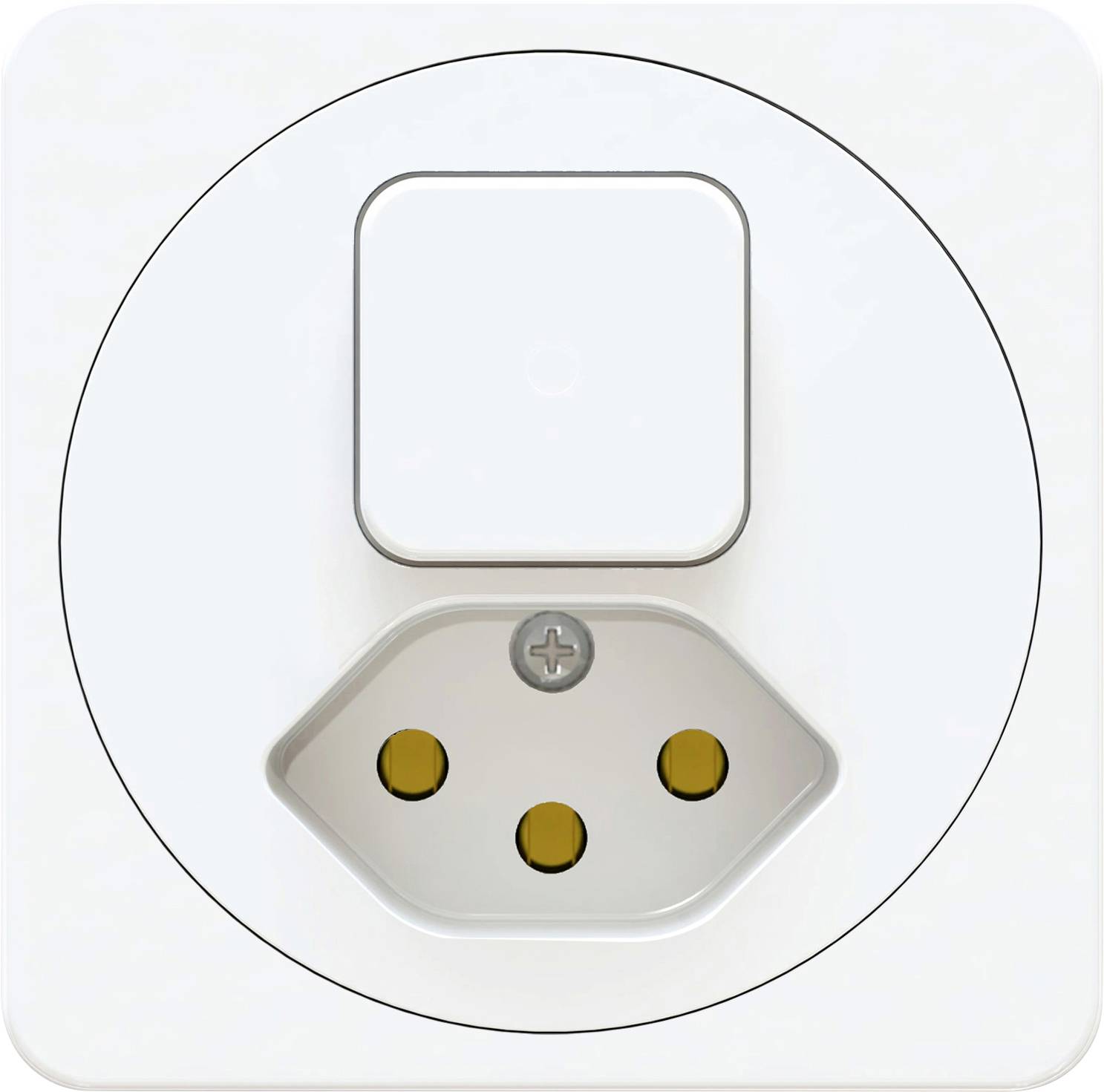

Max Hauri 170612 Switch/socket combo IP20 White (glossy)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Small combination pushbutton A/R / Type 13 AP maxONE white
- A/R / type 13
- Size 1x1
- With plug-in terminals
Technical specifications
- Product type
Switch/socket combo
- Outlets
1
- Nominal voltage
230 V
- Nominal current
10 A
- Mounting type
Surface-mount
- Factory colour
White (glossy)
IP20
- Dim
(L x W x H) 75 x 75 x 60 mm
- Length
75 mm
- Width
75 mm
- Height
60 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3396858 Max Hauri 170612 Switch/socket combo IP20 White (glossy)
User & Safety Instructions
User & Safety Instructions 3396858 Max Hauri 170612 Switch/socket combo IP20 White (glossy)
Description
Small combination Pushbutton NO / NC / Type 13 / Size 1x1 / Design: Surface-mounted / Current: 10A / Voltage: 250V / Additional function: With plug-in terminals / mounting height: 60mm / Colour: White / IP protection class: IP20 / maxONE
This mini unit is mounted directly on the wall. The prepared cable entry points can be easily cut out without damaging the housing. It consists of a socket type 13 and a pushbutton A/R which allows switching on and off from several locations via a minute or a step switch. Thanks to the safety mark S+ maximum security. MaxONE plug socket and switch range is distinguished by its simple aesthetics and large functionality. Installation is very easy thanks to completely pre-assembled modules with plug-in contacts and is therefore aimed at both beginners and professionals. The modern and simple design impresses in every living environment.
This text is machine translated.
This mini unit is mounted directly on the wall. The prepared cable entry points can be easily cut out without damaging the housing. It consists of a socket type 13 and a pushbutton A/R which allows switching on and off from several locations via a minute or a step switch. Thanks to the safety mark S+ maximum security. MaxONE plug socket and switch range is distinguished by its simple aesthetics and large functionality. Installation is very easy thanks to completely pre-assembled modules with plug-in contacts and is therefore aimed at both beginners and professionals. The modern and simple design impresses in every living environment.
