Buy Maxim Integrated DS18S20+ DS18S20+ Temperature sensor -55 up to +125 °C TO-92 Radial lead

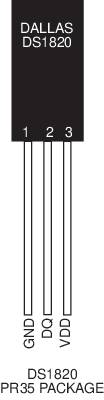

Schematic of a DS1820 component in a PR35 housing with three pins, numbered from 1 to 3. At the top it reads 'DALLAS DS1820'.

Image similar

'A three-legged transistor in a black casing. The three metal contacts are arranged in a single line.'

1/2

Image similar

Product type

Temperature sensor

Temperature reading range (max.)

+125 °C

Connector

Solder pins

Type

Radial lead

Type

DS18S20+

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 2.51 / piece)

€ 2.51

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Maxim Integrated DS18S20+ DS18S20+ Temperature sensor -55 up to +125 °C TO-92 Radial lead

High resolution of the serial digital output

Our service for you

Technical specifications

Scan rate: 1 s
Data output: 9 bit

Product type: Temperature sensor

Type: DS18S20+

Outputs: Digital

Temperature reading range (min.): -55 °C

Temperature reading range (max.): +125 °C

Temperature reading range: -55 up to +125 °C

Connector: Solder pins

Orientation (connectors): Radial

Type: Radial lead

Enclosure: TO-92

Accuracy: 0.5 °C

RoHS-compliant: Yes

Connection: Soldering pins

Reading range: -50 - +125 ºC in 0.5 ºC increments

Documents & Downloads

Datasheet

Datasheet 176168 Maxim Integrated DS18S20+ DS18S20+ Temperature sensor -55 up to +125 °C TO-92 Radial lead

User & Safety Instructions

User & Safety Instructions 176168 Maxim Integrated DS18S20+ DS18S20+ Temperature sensor -55 up to +125 °C TO-92 Radial lead

Description

This temperature sensor with direct digital output makes heat management easy. The sensor allows direct digital output of the measured temperature without the need for an A/D transformer, and is already calibrated by the manufacturer. The sensor includes a digital thermometer and also offers functions such as thermostat, programmable digital thermostat or memory.
