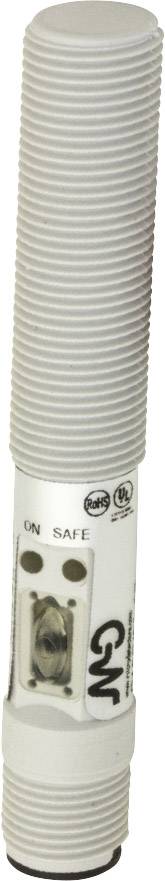

MD Micro Detectors Sensor Capacitive C12P/00-3E C12P/00-3E
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
250 V AC
Model
Capacitive
Connector
M12
Type
C12P/00-3E
Datasheet (PDF)
Highlights & Details
Capacitive sensor C12P/00-3E
Technical specifications
- Weight: 30 g
- Approvals: cULus
- Nominal sensing range Sn: 0.5…4 mm
- Output type: PNP+ NPN
- No-load current ≤ 312 mA
- Load current ≤ 3 200 mA
- Product type
Sensor
- Type
C12P/00-3E
- Min. operating voltage
20 V AC
- Max. operating voltage
250 V AC
- Operating voltage
20 - 250 V AC
- Switching frequency
15
- Enclosure material
Polyester
- Model
Capacitive
- Connector
M12
- Min. temperature
-35 °C
- Max. temperature
+85 °C
IP67
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2273243 MD Micro Detectors Sensor Capacitive C12P/00-3E C12P/00-3E
User & Safety Instructions
User & Safety Instructions 2273243 MD Micro Detectors Sensor Capacitive C12P/00-3E C12P/00-3E
Description
Scope of delivery
- 2 x M12 fixing nut
