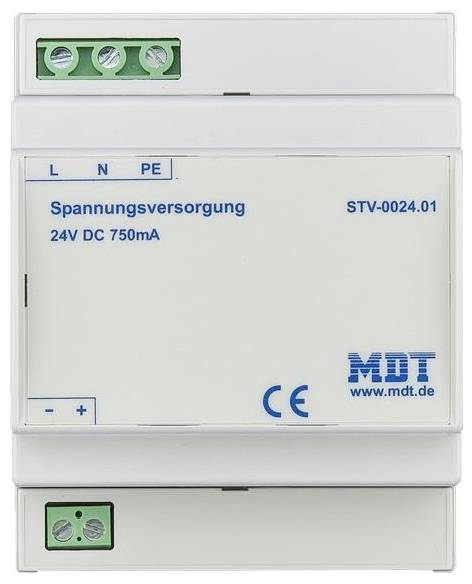

MDT STV-0024.01 Rail mounted PSU (DIN) 24 V 0.75 A 18 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type
Short-circuit-proof, output voltage regulated
- Nominal input voltage
230 V/AC
- Product type
Rail mounted PSU (DIN)
- Max. output current
0.75 A
- Output current (max.) - rounded
750 mA
18 W
- Output voltage (nominal)
24 V
- Connection
Screws
- Manufacturer part #
STV-0024.01
- Content
1 pc(s)
- PSU features
Regulated
IP20
- Type
STV-0024.01
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3819090 MDT STV-0024.01 Rail mounted PSU (DIN) 24 V 0.75 A 18 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3819090 MDT STV-0024.01 Rail mounted PSU (DIN) 24 V 0.75 A 18 W Content 1 pc(s)
Description
Continuous current 750mA, voltage supply 24Vdc for universal applications, suitable for VisuControl touch panel, supply voltage 230VAC, short-circuit proof, mounting unit for 35mm top hat rail
