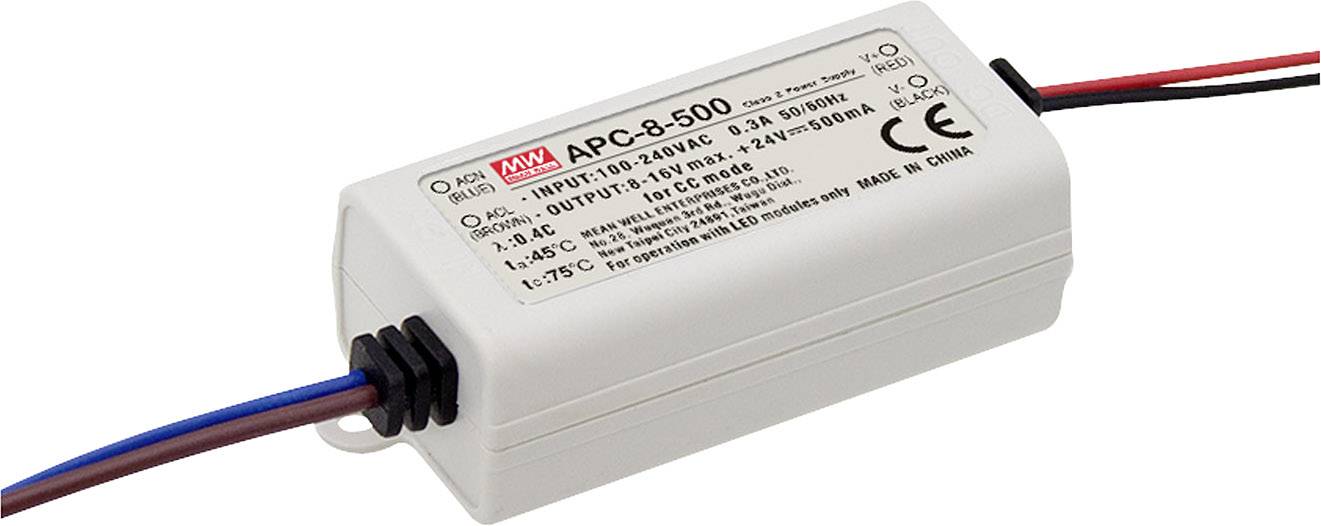

MEAN WELL APC-8-500 LED driver Constant current 8 W not dimmable, Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Only 2 Piece(s) available
Highlights & Details
LED switching power supply
- Constant current
Technical specifications
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 100 x 40 x 25 mm
- Operating voltage
115 V AC
230 V AC
- Protection class
II
- LED driver features
not dimmable
Surge protection
IP42
- Connection
Open end cable
- Max. power
8 W
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- Weight
48 g
- Power range
8 W (max)
- Type
Synchronised
- Width
40 mm
- Height
25 mm
- Length
100 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1439425 MEAN WELL APC-8-500 LED driver Constant current 8 W not dimmable, Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1439425 MEAN WELL APC-8-500 LED driver Constant current 8 W not dimmable, Surge protection 1 pc(s)
Information
Information 1439425 MEAN WELL APC-8-500 LED driver Constant current 8 W not dimmable, Surge protection 1 pc(s)
Warranty Terms
Warranty Terms 1439425 MEAN WELL APC-8-500 LED driver Constant current 8 W not dimmable, Surge protection 1 pc(s)
Description
The LED switching power supply in IP30 plastic housing can be used for LED and lighting applications. This version has an overload protection, current limiting.
Features
- universal input
- plastic enclosure IP30
- overload protection, current limiting
- protections: short circuit/over load/over voltage
- suitable for LED lighting and moving sign applications
- Constant current
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
