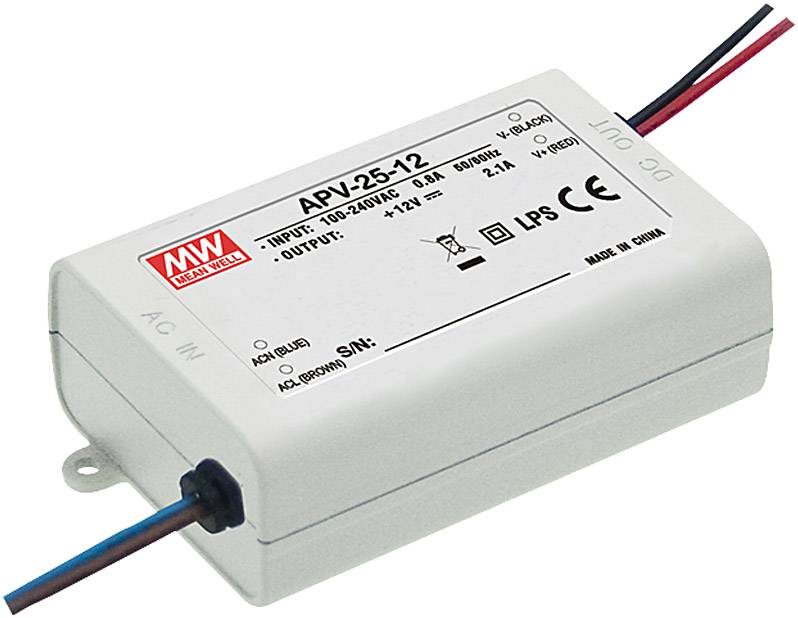

Image similar
Image similar
MEAN WELL APV-25-36 LED transformer Constant voltage 25 W 0 - 0.7 A 36 V DC not dimmable, Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Switching power supply
- Constant voltage
- 36 V DC
- 0 - 0.7 A
Technical specifications
- protection class: IP30
- Product type
LED transformer
- Type
Constant voltage
- Operating current
0.7 A
- Dim
(L x W x H) 84 x 57 x 29.5 mm
- Output voltage (max.)
36 V DC
- Output voltage (min.)
36 V DC
- Max. output current
0.7 A
- Output current (max.) - rounded
700 mA
- Operating voltage
115 V AC
230 V AC
- Protection class
II
- LED driver features
not dimmable
Surge protection
IP30
- Connection
Open end cable
- Max. power
25 W
- No. of outputs
1 x
- No. of inputs
1 x
- Type
constant voltage
- Output current (min.)
0 A
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- Weight
130 g
- Power (min.)
25 W
- Power range
25 up to 25 W
- Type
Synchronised
- Width
57 mm
- Height
29.5 mm
- Length
84 mm
- Output voltage
5 V
- Output current (details)
3.5 A
- Type
switched-mode
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1371677 MEAN WELL APV-25-36 LED transformer Constant voltage 25 W 0 - 0.7 A 36 V DC not dimmable, Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1371677 MEAN WELL APV-25-36 LED transformer Constant voltage 25 W 0 - 0.7 A 36 V DC not dimmable, Surge protection 1 pc(s)
Information
Information 1371677 MEAN WELL APV-25-36 LED transformer Constant voltage 25 W 0 - 0.7 A 36 V DC not dimmable, Surge protection 1 pc(s)
Warranty Terms
Warranty Terms 1371677 MEAN WELL APV-25-36 LED transformer Constant voltage 25 W 0 - 0.7 A 36 V DC not dimmable, Surge protection 1 pc(s)
Description
Constant voltage-switching power supply suitable for LED lighting and moving sign applications in IP30 plastic enclosure with an input voltage range of 90-264 V/AC.
Features
- universal input
- plastic enclosure IP30
- APV-25: overload protection, pulsing hiccup shutdown, auto recovery
- APC-25: overload protection, current limiting
- protections: short circuit/over load/over voltage
- suitable for LED lighting and moving sign applications
- APV-25: constant voltage
- APC-25: constant current
Hints
Devices only for use in equipment with another primary purpose such as photocopiers, overhead projectors and slide projectors or for scale illumination or indication purposes.
Suitable for indoor use.
