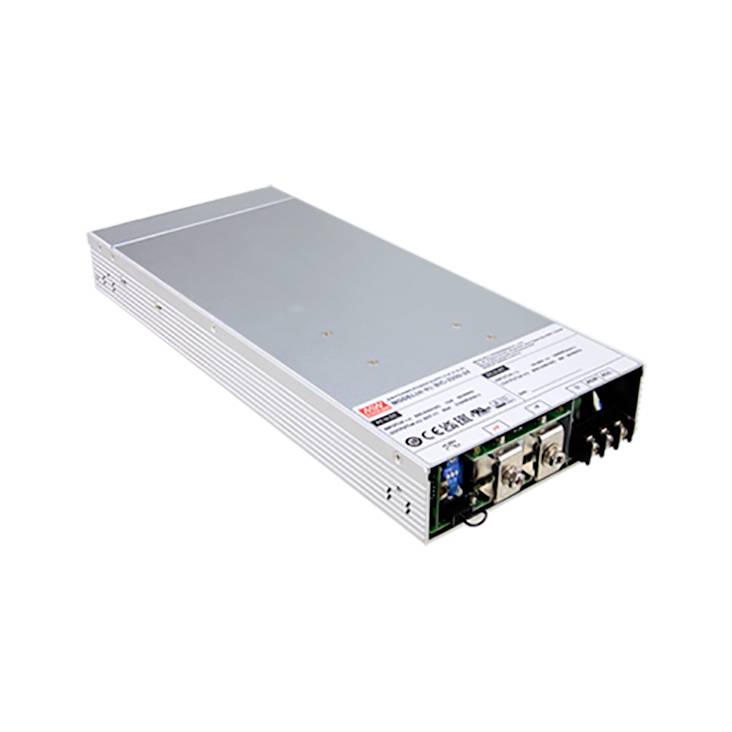

MEAN WELL BIC-2200-24 Industrial PSU 24 V 90 A 2160 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well AC/DC-industrial power supply cast metal 2,160 W 24 V 90 a
- Output 24 V / 90 A
- Power 2160 W
Technical specifications
- Connector type, input: Screw terminalInput current 11 AConnector type, output: Screw terminalProtection class: IEfficiency 93 %Leakage current, max. 2 mASwitch-on current, max. 35 A
- Product type
Industrial PSU
- Input voltage (max.)
264 V AC
- Max. output current
90 A
- Output current (max.) - rounded
90 A
- Min. input voltage
180 V AC
- Dim
(L x W x H) 330 x 140 x 41 mm
- Output voltage (max.)
24 V
2160 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-30 °C
- Weight
2900 g
- PSU features
Adjustable voltage output
- Width
140 mm
- Height
41 mm
- Length
330 mm
- Type
BIC-2200-24
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749211 MEAN WELL BIC-2200-24 Industrial PSU 24 V 90 A 2160 W
User & Safety Instructions
User & Safety Instructions 2749211 MEAN WELL BIC-2200-24 Industrial PSU 24 V 90 A 2160 W
Warranty Terms
Warranty Terms 2749211 MEAN WELL BIC-2200-24 Industrial PSU 24 V 90 A 2160 W
Description
Features
- Application: ITE, IndustryHousing: Closed metal
- This text is machine translated.
