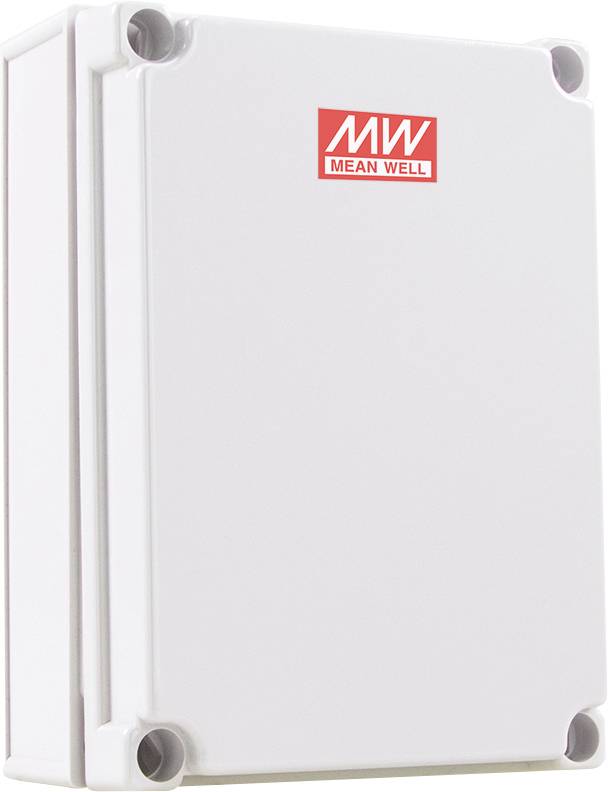

MEAN WELL Casing, Industrial-grade casing, Outdoor casing 125 x 175 x 75 PC, Polycarbonate (PC), Plastic Grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
PC
Polycarbonate (PC)
Plastic
IP rating
IP66
Width
175 mm
Height
75 mm
Highlights & Details
Mean Well TJ-AG plastic housing PC (polycarbonate) 125mmx175mmx75mm gray IP66
- IP66 dust-proof and water-proof as well as IK 9 impact-resistant
- Made of high-quality PC material with UL 94 5VA certification as a high-performance flame-retardant material
- Suitable for outdoor use
- Can be used at ambient temperatures from -40 °C to +80 °C.
- This text is machine translated.
Our service for you
Technical specifications
- Product type
Casing
- Material
PC
Polycarbonate (PC)
Plastic
IP66
- Factory colour
Grey
- Length
125 mm
- Width
175 mm
- Height
75 mm
- Content
1 pc(s)
- Dim
(L x W x H) 125 x 175 x 75 mm
- RoHS-compliant
Yes
- Type
TJ-AG-1217
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3557760 MEAN WELL Casing, Industrial-grade casing, Outdoor casing 125 x 175 x 75 PC, Polycarbonate (PC), Plastic Grey 1 pc(s)
Description
Scope of delivery
- Plastic mounting plate
- Wall bracket
- Plastic mounting screw
