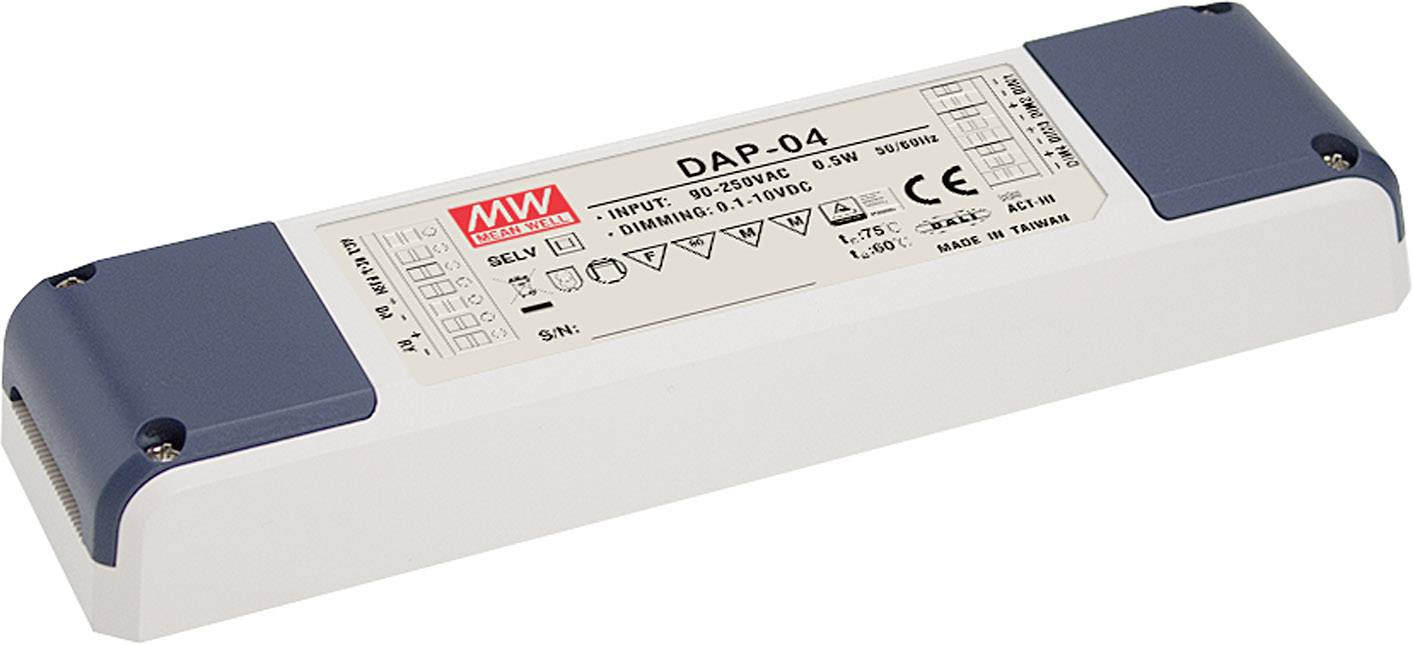

MEAN WELL DAP-04-S01 LED driver DALI, Suitable for flammable surfaces, Approved for use on furniture 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Sets the input fitting DALI-signal in a PWM signal.
- Suited to MeanWell LED switched-mode power supplies with a 3 in 1-dimming function via DALI signals to be able to operate.
- Product type
LED driver
- Dim
(L x W x H) 165 x 46 x 23 mm
- Factory colour
White
Blue
- Test mark
MM, SELV, TÜV
- Operating voltage
230 V AC
115 V AC
- Protection class
II
- LED driver features
DALI
Suitable for flammable surfaces
Approved for use on furniture
IP20
- Connection
Clamp
- No. of outputs
1 x
4 x
- No. of inputs
1 x
- Input voltage (max.)
305 V AC
127 V DC
- Min. input voltage
90 V AC
127 V DC
- Inputs
1
- Weight
160 g
- Width
46 mm
- Height
23 mm
- Length
165 mm
- Max. temperature
+60 °C
- Min. temperature
-30 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1838184 MEAN WELL DAP-04-S01 LED driver DALI, Suitable for flammable surfaces, Approved for use on furniture 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1838184 MEAN WELL DAP-04-S01 LED driver DALI, Suitable for flammable surfaces, Approved for use on furniture 1 pc(s)
Warranty Terms
Warranty Terms 1838184 MEAN WELL DAP-04-S01 LED driver DALI, Suitable for flammable surfaces, Approved for use on furniture 1 pc(s)
Description
Features
- Universal input
- Converts DALI-in PWM signals
- One or four DALI-addressable output channels
- Push dimming function
- Corresponds to the DALI-Standard (IEC 62386-101, 102, 207)
- PMW "active high" or "active low" via the jumper selectable
- Linear and logarithmic dimming curve can be selected (according to IEC 62386-207)
- Dimming Range: 1 to 100%
- Built-in relay for on/Aus-Steuerung the LED power supplies
- Low idle power consumption less than 0.5W
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
