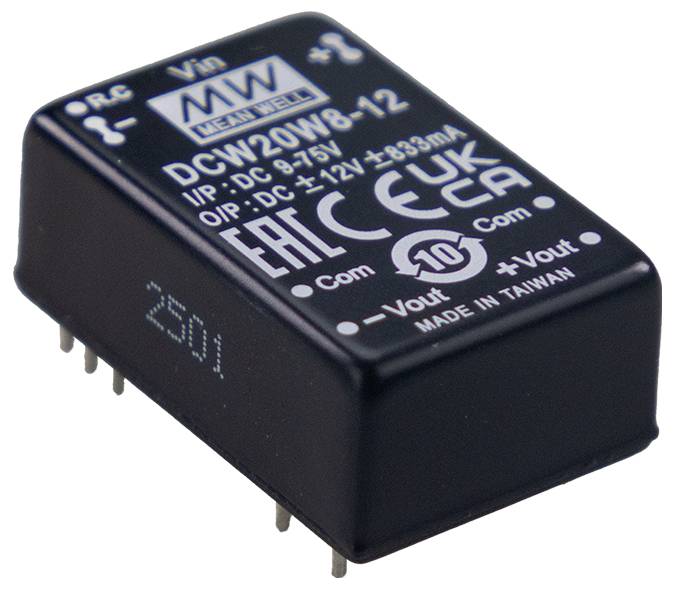

MEAN WELL DCW20W8-12 DC/DC converter 24 V -12 V -12.000 A 20 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- REMOTE Function
- Product type
DC/DC converter
- Type
DCW20W8-12
- Nominal voltage
24 V
- Min. input voltage
9 V
- Input voltage (max.)
75 V
- Output voltages
-12 V
- Max. output current
-12.000 A
20 W
- Enclosure
DIP 24
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
95 °C
- Dim
(L x W x H) 31.8 x 20.3 x 12.2 mm
- Height
12.2 mm
- Length
31.8 mm
- Width
20.3 mm
- RoHS-compliant
Yes
- Weight
20 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3556728 MEAN WELL DCW20W8-12 DC/DC converter 24 V -12 V -12.000 A 20 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3556728 MEAN WELL DCW20W8-12 DC/DC converter 24 V -12 V -12.000 A 20 W Content 1 pc(s)
Description
The DCW20W8 series is an isolated and regulated 20W DC/DC converter in the DIP24 package. They are characterized by international standard pinning, a high degree of efficiency of up to 88%, a wide operating temperature range of -40 to +95 °C, an insulation voltage of 3 kVdc IP-O/P, compliance with BS EN/EN55022 class A standard without additional components, short-circuit protection in continuous operation, a 8:1 (9-75 V) Ultra-wide input range and various +-12 V/+-15 V output voltages suitable for all types of systems, such as industrial controls, telecommunications, distributed power supply architectures, etc.
