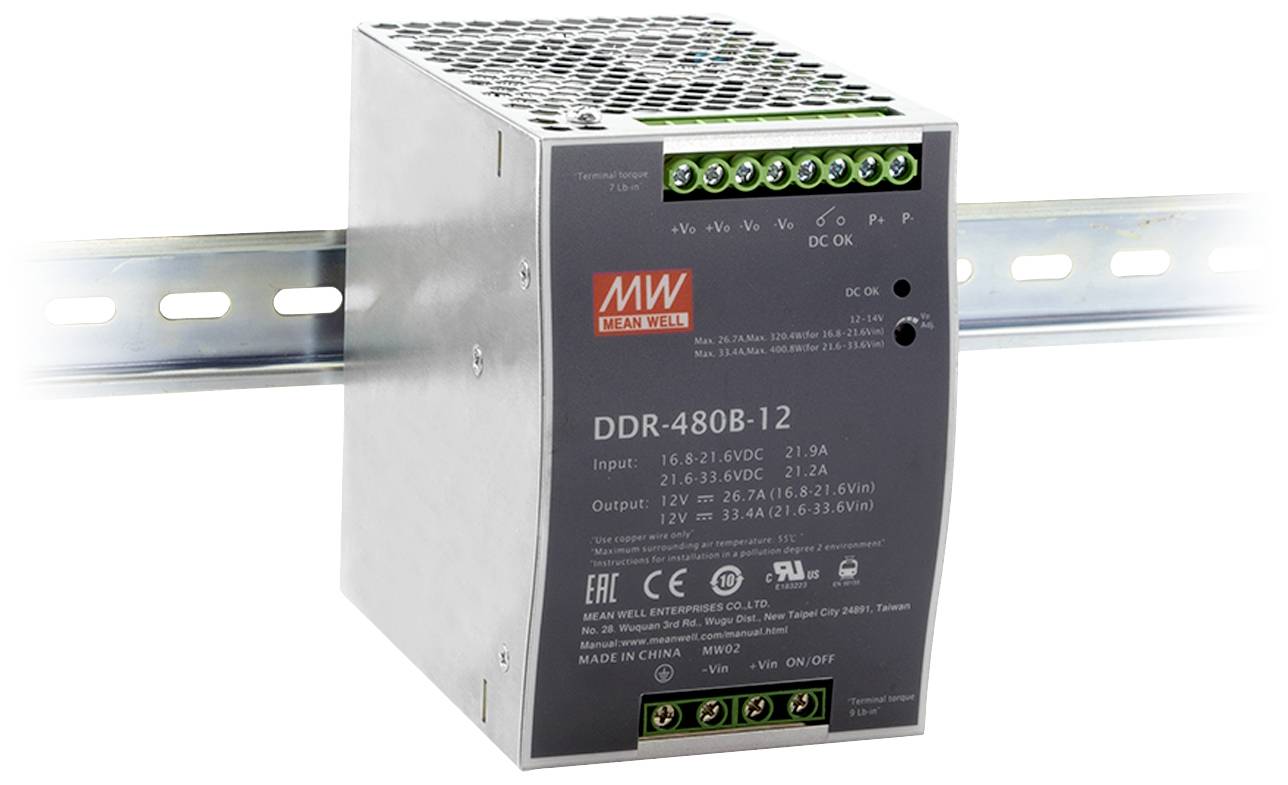

MEAN WELL DDR-480B-12 DC/DC converter 12 V 33.4 A 400.8 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well DC/DC-converter regulated 12 V 33.4 A rail mount 4,000 V
- Application: ITE, industry, railway technologyHousing: Top hat rail
- This text is machine translated.
Technical specifications
- Connector type, input: Screw terminalConnector type, output: Screw terminalOperation maintenance 30,000 h
- Product type
DC/DC converter
- Type
DDR-480B-12
- Min. input voltage
16.8 V DC
- Input voltage (max.)
33.6 V DC
- No. of outputs
1 x
- Output voltages
12 V
- Max. output current
33.4 A
- Output current (max.) - rounded
33.4 A
- Efficiency (max.)
90 %
400.8 W
- Insulation voltage
4.000 V
- PSU features
Adjustable voltage output
- Dim
(L x W x H) 128.50 x 85.50 x 125.20 mm
- Height
125.20 mm
- Length
128.50 mm
- Width
85.50 mm
- Output voltage (max.)
14 V
- Output voltage (min.)
12 V
- Weight
1375 g
- Content
1 pc(s)
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
