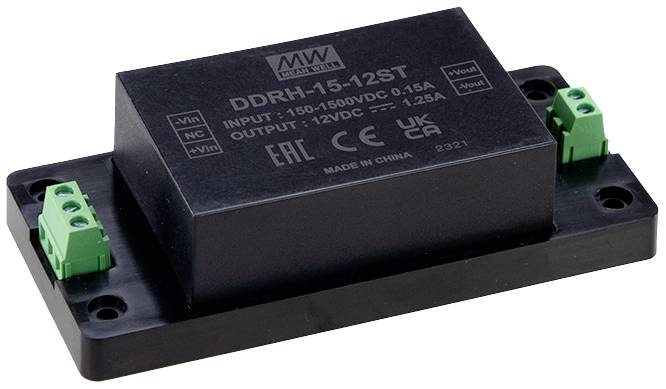

MEAN WELL DDRH-15-12ST DC/DC converter (component) 12 V DC No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter (component)
- Min. input voltage
150 V DC
- Input voltage (max.)
1500 V DC
- Output type (power supply units)
Fixed voltage
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 122.3 x 57.3 x 32.00 mm
- Weight
210 g
- Output voltage (max.)
12 V DC
- Operating temperature (max.)
80 °C
- Operating temperature (min.)
-40 °C
- Manufacturer part #
DDRH-15-12ST
- Content
1 pc(s)
- MTBF
388000 h
- PSU features
DC-to-DC converter
- Width
57.3 mm
- Height
32.00 mm
- Length
122.3 mm
- Type
DDRH-15-12ST
- Max. power
10.00 W
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3018496 MEAN WELL DDRH-15-12ST DC/DC converter (component) 12 V DC No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3018496 MEAN WELL DDRH-15-12ST DC/DC converter (component) 12 V DC No. of outputs:1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3018496 MEAN WELL DDRH-15-12ST DC/DC converter (component) 12 V DC No. of outputs:1 x Content 1 pc(s)
Description
Single-phase primary-switched power supply for rail mounting in SLIM metal casing, input voltage: 88-264VAC, peak load function 150%
