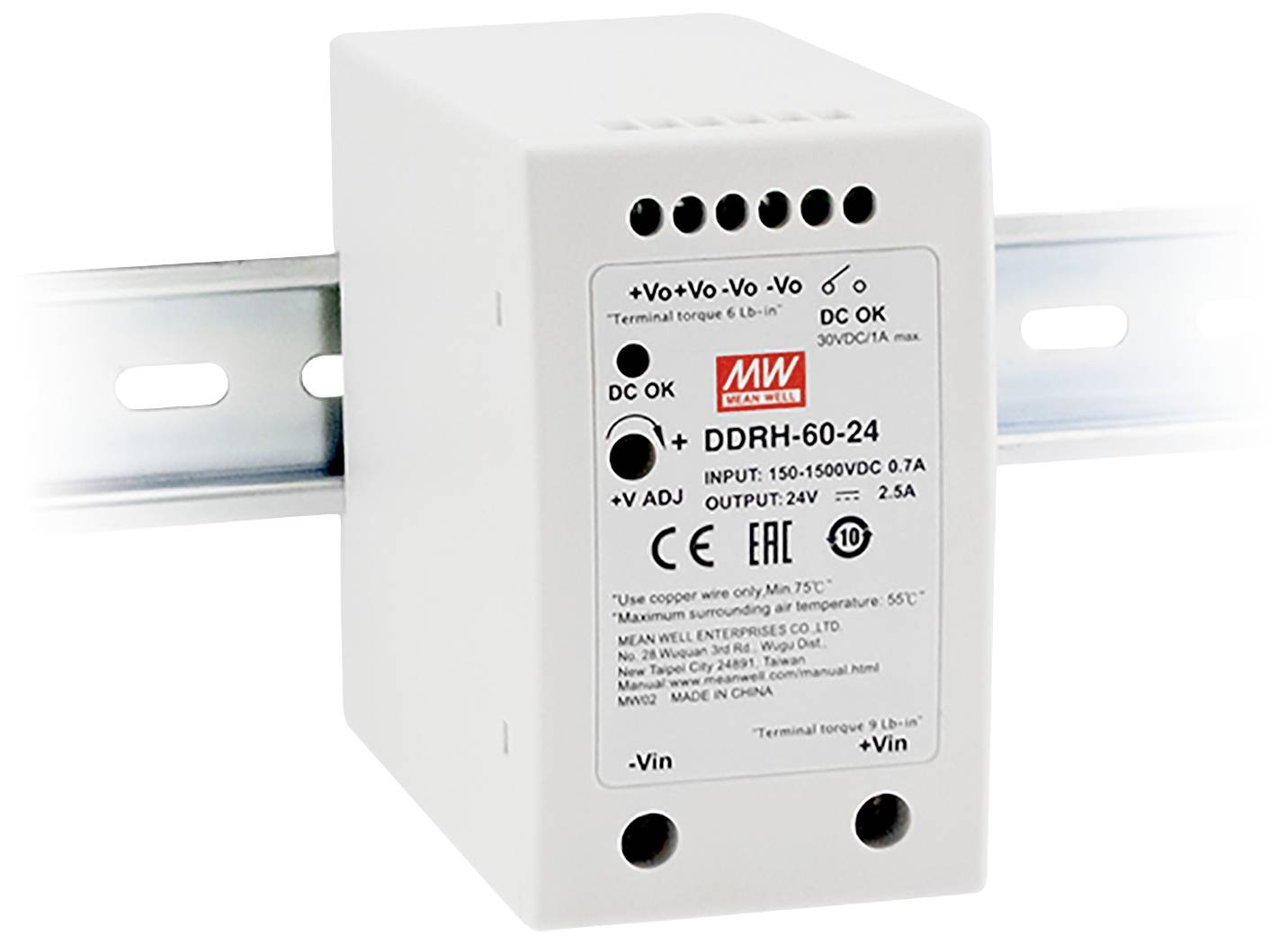

MEAN WELL DDRH-60-24 DC/DC converter 24 V 2.5 A 60 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well DC/DC-converter regulated 24 V 2.5 A rail mount 4,000 V
- Application: ITE, IndustryHousing: Top hat rail
- This text is machine translated.
Technical specifications
- Connector type, input: Screw terminalConnector type, output: Screw terminalOperation maintenance 30,000 hCapacitive load, max. 2500 µF
- Product type
DC/DC converter
- Type
DDRH-60-24
- Min. input voltage
150 V DC
- Input voltage (max.)
1500 V DC
- No. of outputs
1 x
- Output voltages
24 V
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Efficiency (max.)
84 %
60 W
- Insulation voltage
4.000 V
- PSU features
Adjustable voltage output
- Dim
(L x W x H) 105 x 57 x 93.50 mm
- Height
93.50 mm
- Length
105 mm
- Width
57 mm
- Output voltage (max.)
29 V
- Output voltage (min.)
24 V
- Weight
800 g
- Content
1 pc(s)
- Max. temperature
+80 °C
- Min. temperature
-30 °C
- UKCA
yes
