Buy MEAN WELL DLC03C-12 DC/DC converter (module) 15 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

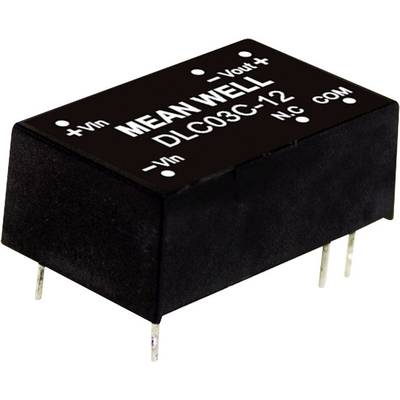

Black electrical component with 'Mean Well DLC03C-12' label, four connections on the underside, used for voltage regulation.

Datasheet (PDF)

11 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 10.08 / piece)

€

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules DLC series 03 DIP/DIL 16 Case Dual Output Input voltage ratio: 2:1 Power 3 W regulated

In DIP16/DIL 16 casing
2:1 input voltage range
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload, input voltage
According to EN 55032 Class B transmitted without additional components
Efficiency up to 82%

Technical specifications

Product type: DC/DC converter (module)

Type: DLC03C-12

Min. input voltage: 9 V DC

Input voltage (max.): 36 V DC

No. of outputs: 2 x

Output voltages: 15 V DC

Max. output current: 125 mA

Output current (max.) - rounded: 125 mA

Efficiency (max.): 80 %

: 3 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 22.1 x 13.8 x 8.55 mm

Height: 8.55 mm

Length: 22.1 mm

Width: 13.8 mm

Output voltage (max.): 12 V DC
-12 V DC

Weight: 4.5 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2143565 MEAN WELL DLC03C-12 DC/DC converter (module) 15 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143565 MEAN WELL DLC03C-12 DC/DC converter (module) 15 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143565 MEAN WELL DLC03C-12 DC/DC converter (module) 15 V DC 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Description

MEAN CORRUGATED expands its range of 3 W DC/DC converters with dual output to the DLC series 03 in the DIP16 casing. In addition to a wide input range of 2:1 and an extremely wide operating temperature range from -40 to +90 °C, it is with 1500 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.

This text is machine translated.
