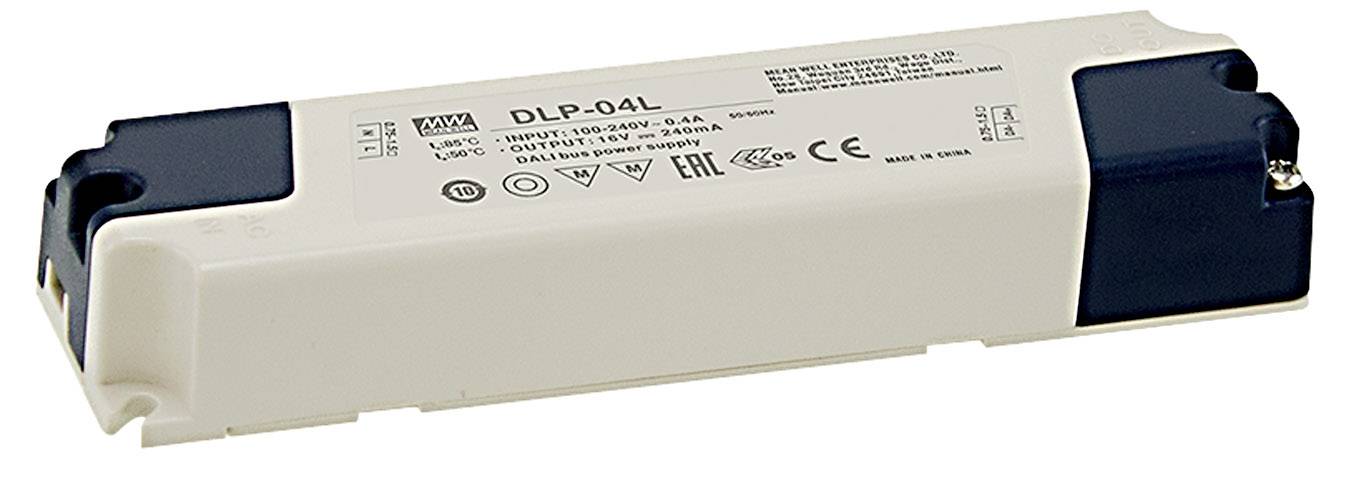

MEAN WELL DLP-04L SMPSU 18.7 V DC 0.24 A 3.84 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
14-day return policy included
Highlights & Details
MEANWELL power supply for the DALI bus series DLP-04L power: 3,84 W
- Output 18.7 V DC / 0.24 A
- Power 3.84 W
- Screw terminal
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
0.24 A
- Output current (max.) - rounded
240 mA
- Min. input voltage
90 V AC
120 V DC
- Dim
(L x W x H) 145 x 38 x 22 mm
- Output voltage (max.)
18.7 V DC
- Connection
Screw terminal
3.84 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+60 °C
- Operating temperature (min.)
-20 °C
- Weight
84 g
- Width
38 mm
- Height
22 mm
- Length
145 mm
- Type
DLP-04L
- MTBF
625500 h
- Output voltage (min.)
15.3 V DC
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2142571 MEAN WELL DLP-04L SMPSU 18.7 V DC 0.24 A 3.84 W
User & Safety Instructions
User & Safety Instructions 2142571 MEAN WELL DLP-04L SMPSU 18.7 V DC 0.24 A 3.84 W
Warranty Terms
Warranty Terms 2142571 MEAN WELL DLP-04L SMPSU 18.7 V DC 0.24 A 3.84 W
Description
Features
- Power supply for the DALI bus
- Closed design
- Universal input
- Surge protection 300V AC/5s
- Insulation category II
- Overload protection through current limitation, auto recovery
- Protected against short-circuit, over-voltage
