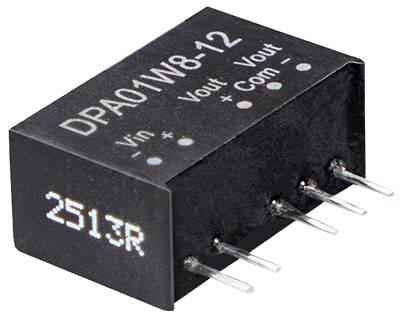

MEAN WELL DPA01W8-12 DC/DC converter 0.042 A 1 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
DPA01W8-12
- Max. output current
0.042 A
- Output current (max.) - rounded
42 mA
1 W
- Enclosure
SIP 6
- Dim
(L x W x H) 17.4 x 7.75 x 11.1 mm
- Height
11.1 mm
- Length
17.4 mm
- Width
7.75 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V
- Output voltage (min.)
-12 V
- Output current (min.)
-0.042 A
- Weight
3 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3556655 MEAN WELL DPA01W8-12 DC/DC converter 0.042 A 1 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3556655 MEAN WELL DPA01W8-12 DC/DC converter 0.042 A 1 W Content 1 pc(s)
Description
The series DPA01W8 is a 1W insulated and regulated module DC-DC-converter with SIP6-casing. It has international standard pinning, high efficiency of up to 80%, a wide operating temperature range from -40 to 95°C, an insulation voltage of 1.5 kV DC between input and output sides, compliance with BS EN/EN55022 standard for class A radiated EMC disturbances without additional components, Overload and short-circuit protection in continuous operation, etc. The models cover an input voltage of 9-75 VDC with an input voltage ratio of 8:1 and offer various +-5 V/+-12 V/+-15 V dual outputs suitable for all types of systems, such as industrial control, telecommunications, distributed energy architecture and so on.
