Buy MEAN WELL DPBW03G-12 DC/DC converter (module) 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

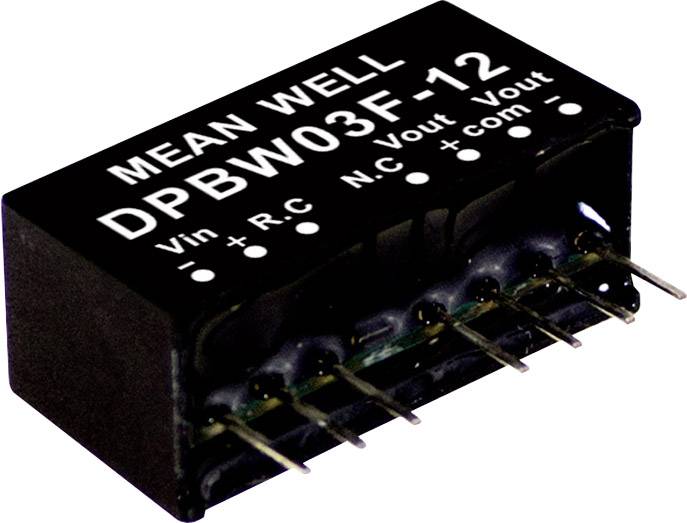

An electronic component with the inscription 'MEAN WELL DPBW03F-12', featuring multiple metal pins for connection.

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 9.24 / piece)

€ 9.24

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules series DPBW03 SIP/SIL 8 Case Dual Output Input voltage ratio: 4:1 Power 3 W regulated

SIP/SIL8-casing
For direct PCB mounting
Input voltage ratio: 4:1
No minimum load required
Input/output insulation 1500 V
Regulated output voltage
According to EN 55032 Class A transmitted without additional components
Efficiency up to 83%
Remote control

Technical specifications

Product type: DC/DC converter (module)

Type: DPBW03G-12

Min. input voltage: 18 V DC

Input voltage (max.): 75 V DC

No. of outputs: 2 x

Max. output current: 125 mA

Output current (max.) - rounded: 125 mA

Efficiency (max.): 83 %

: 3 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 21.8 x 9.2 x 11.1 mm

Height: 11.1 mm

Length: 21.8 mm

Width: 9.2 mm

RoHS-compliant: Yes

Output voltage (max.): 12 V DC
-12 V DC

Weight: 4.8 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2143542 MEAN WELL DPBW03G-12 DC/DC converter (module) 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143542 MEAN WELL DPBW03G-12 DC/DC converter (module) 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143542 MEAN WELL DPBW03G-12 DC/DC converter (module) 125 mA 3 W No. of outputs: 2 x Content 1 pc(s)

Description

With the introduction of regulated DC/DC converters DPBW03 (Dual Output) offers mean well with standard SIP Pin assignment. In addition to a wide input range 4:1 and a wide operating temperature range from -40 up to +90 °C, all with 1500 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.

This text is machine translated.
