Buy MEAN WELL DPBW06G-12 DC/DC converter (module) 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)

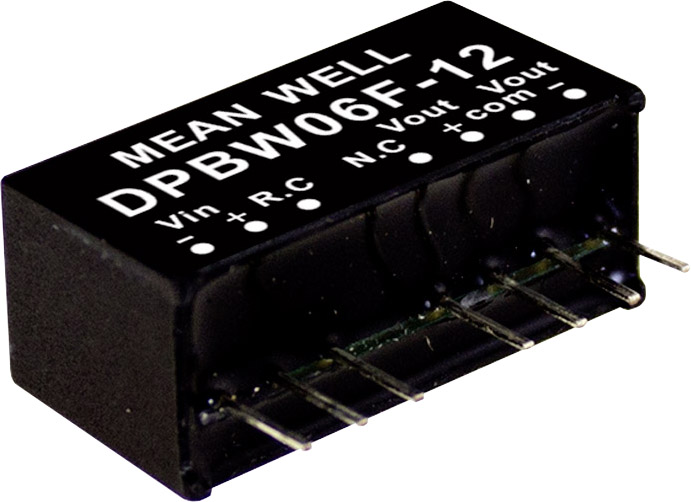

Small black electronic voltage converter with six metal pins, inscribed with 'MEAN WELL DPBW06F-12 Vin Vout'.

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 9.24 / piece)

€ 9.24

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules series DPBW06 SIP/SIL 8 Case Dual Output Input voltage ratio: 4:1 Power: 6 W regulated

In the SIP8/SIL8-casing
Input voltage range 4:1
No minimum load required
Input/output insulation 1500 V DC
Protection: short circuit (continuously), overload
Remote control
Efficiency up to 89%

Technical specifications

Product type: DC/DC converter (module)

Type: DPBW06G-12

Min. input voltage: 18 V DC

Input voltage (max.): 75 V DC

No. of outputs: 2 x

Max. output current: 250 mA

Output current (max.) - rounded: 250 mA

Efficiency (max.): 89 %

: 6 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +85 °C

Dim: (L x W x H) 21.8 x 9.2 x 11.1 mm

Height: 11.1 mm

Length: 21.8 mm

Width: 9.2 mm

Output voltage (max.): 12 V DC
-12 V DC

Weight: 4.8 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2143668 MEAN WELL DPBW06G-12 DC/DC converter (module) 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143668 MEAN WELL DPBW06G-12 DC/DC converter (module) 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143668 MEAN WELL DPBW06G-12 DC/DC converter (module) 250 mA 6 W No. of outputs: 2 x Content 1 pc(s)

Description

Mean corrugated offers in the area up to 6 W now a power supply solution. The DPBW06 series is designed so that a standard SIP Pin assignment. In addition to a wide input range of 4:1 and a wide operating temperature range from -40 up to +90 °C, all with 1500 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.
