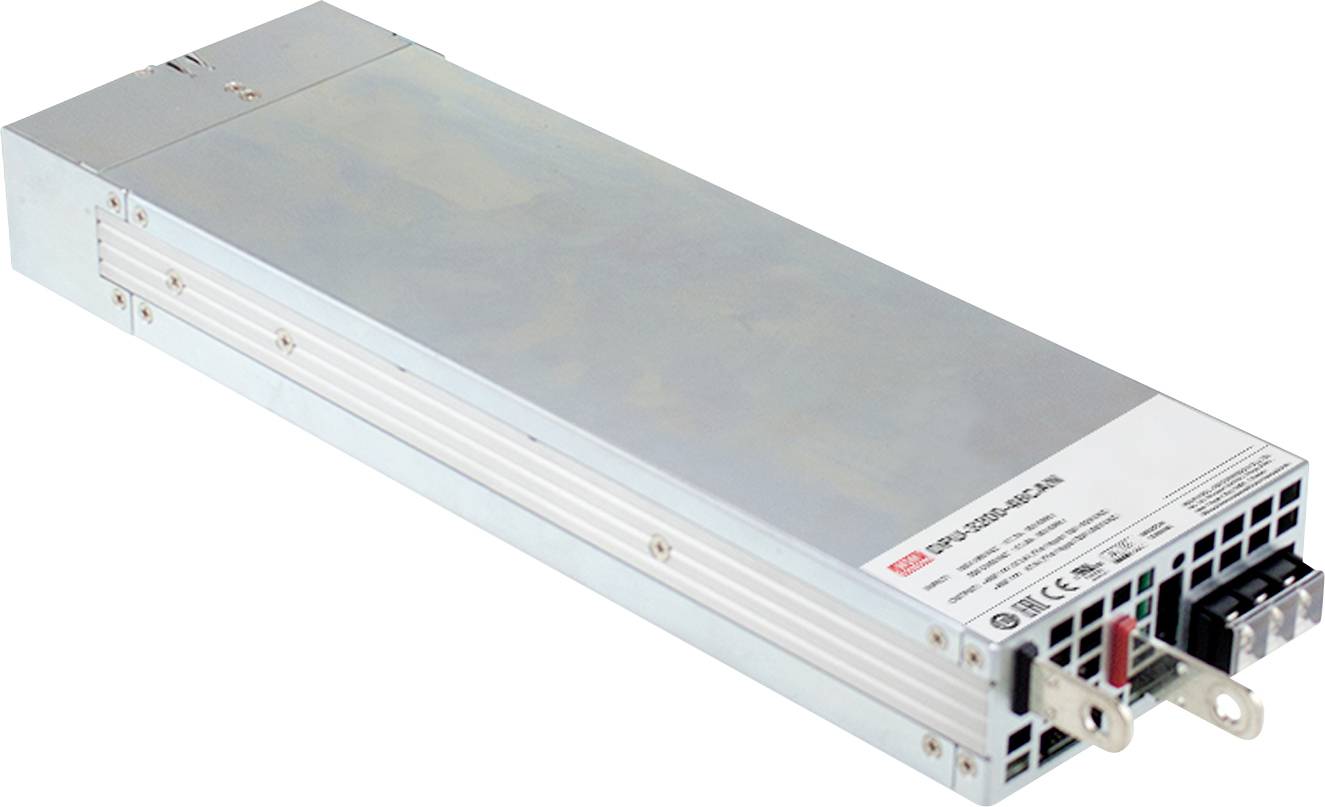

MEAN WELL DPU-3200-48CAN DC/DC converter 48 V 67 A 3216 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MeanWell DPU-3200 case single output PRO
- Remote function, output voltage can be programmed, output current can be programmed, output voltage can be set, parallel function, AUX-power supply, DC-OK-signal, remote sense, DC compatible
Technical specifications
- Min. Input voltage 90 V/AC
- Max. input voltage 264 V/AC
- Min. Input voltage 127 V/DC
- Max. input voltage 370 V/DC
- Input current 17 A
- Product type
DC/DC converter
- Type
DPU-3200-48CAN
- Min. input voltage
90 V
- Input voltage (max.)
264 V
- Output voltages
48 V
- Max. output current
67 A
- Output current (max.) - rounded
67 A
- Efficiency (max.)
94 %
3216 W
- Connection
Screw terminal
- Operating temperature (min.)
-30 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 325.8 x 107 x 41 mm
- Height
41 mm
- Length
325.8 mm
- Width
107 mm
- Output voltage (max.)
48 V
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3435572 MEAN WELL DPU-3200-48CAN DC/DC converter 48 V 67 A 3216 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435572 MEAN WELL DPU-3200-48CAN DC/DC converter 48 V 67 A 3216 W Content 1 pc(s)
Description
DPU-3200 is an enclosed AC/DC power supply with an output of 3.2KW, a low height of 1U and a high power density of up to 37W/inch®. This series operates with an input voltage of 90-264VAC and offers the most industry-requested DC output models. Each model is cooled by a thermostatically controlled fan. In addition, the DPU-3200 offers great design flexibility through various integrated functions such as output programming, active current distribution, ON-OFF remote control, auxiliary power supply, etc.
