Buy MEAN WELL DRA-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

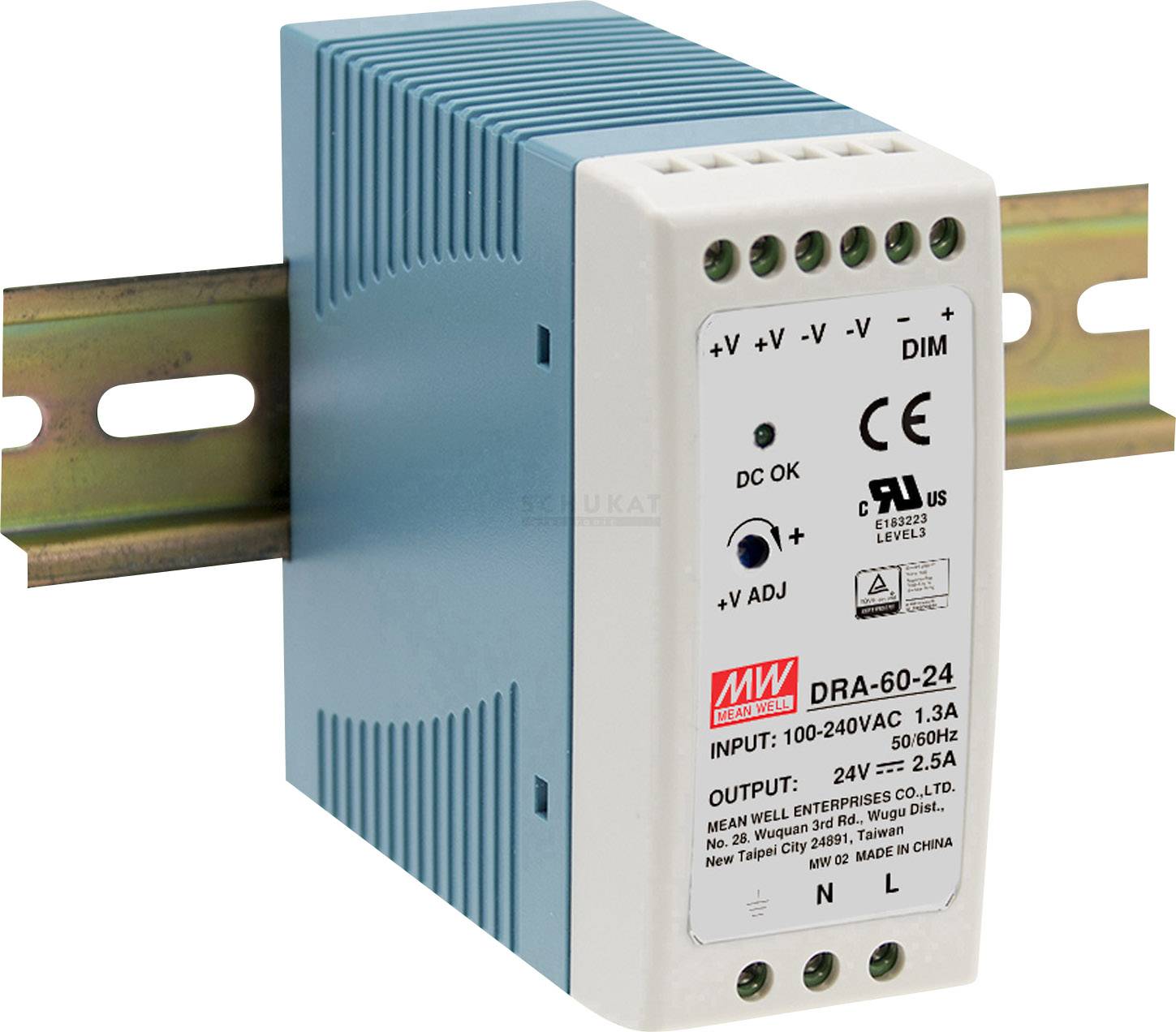

A blue and white Mean Well switch-mode power supply mounted on a DIN rail. It provides a 24V output with 2.5A. CE and UL approved.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

DIN-Rail Mounting Single Output 1-phase power: 60 W

Directly on the DIN-rail mountable
Closed design, touch-proof screw terminals
Universal input
Output voltage can be set via built-in potentiometer
Output current adjustable via external 1...10 VDC, PWM signal of the resistance.
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, over voltage
LED display for power-on

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC

Type: Pulsed

Product type: Rail mounted PSU (DIN)

Min. input voltage: 90 V AC

Output voltage: 24 V DC

Input voltage: 90-264 V/AC, 47-63Hz

Input voltage (max.): 264 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 60 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 100 x 90 x 40 mm

Weight: 300 g

Output voltage (max.): 30 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 70 °C

Max. operating temperature (derating): +70 °C

Min. operating temperature (derating): -30 °C

Operating temperature (min.): -30 °C

Manufacturer part #: DRA-60-24

Content: 1 pc(s)

MTBF: 436400 h

PSU features: Adjustable voltage output

Width: 90 mm

Height: 40 mm

Length: 100 mm

Max. temperature: 70 °C

Min. temperature: -30 °C

Type: DRA-60-24

Efficiency: 87 %

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Variants(All information is without VAT, plus shipping costs)

Power

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

No. of outputs

Output current (max.) - rounded

Product type

Min. input voltage

MEAN WELL DRA-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:1837893

This article

60 W

264 V AC

24 V DC

Adjustable

115 V/AC230 V/AC

1 x

2.5 A

Rail mounted PSU (DIN)

90 V AC

MEAN WELL DRA-60-12 Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:1837938

60 W

264 V AC

12 V DC

Adjustable

115 V/AC230 V/AC

1 x

5 A

Rail mounted PSU (DIN)

90 V AC

MEAN WELL DRA-40-12 Rail mounted PSU (DIN) 12 V DC 3.34 A 40.08 W No. of outputs:1 x Content 1 pc(s)

Item no:1837978

40.08 W

264 V AC370 V DC

12 V DC

Adjustable

115 V/AC230 V/AC

1 x

3.34 A

Rail mounted PSU (DIN)

90 V AC127 V DC

MEAN WELL DRA-40-24 Rail mounted PSU (DIN) 24 V DC 1.7 A 40.8 W No. of outputs:1 x Content 1 pc(s)

Item no:1838057

40.8 W

264 V AC370 V DC

24 V DC

Adjustable

115 V/AC230 V/AC

1 x

1.7 A

Rail mounted PSU (DIN)

90 V AC127 V DC

MEAN WELL HDR-30-5 Rail mounted PSU (DIN) 5 V DC 3 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:1894082

15 W

264 V AC

5 V DC

Adjustable

230 V/AC115 V/AC

1 x

3 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-48 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V DC 0.75 A 36 W No. of outputs:1 x Content 1 pc(s)

Item no:1894083

36 W

264 V AC

48 V DC

Adjustable

230 V/AC115 V/AC

1 x

750 mA

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-24 Rail mounted PSU (DIN) 24 V DC 1.5 A 36 W No. of outputs:1 x Content 1 pc(s)

Item no:1894084

36 W

264 V AC

24 V DC

Adjustable

230 V/AC115 V/AC

1 x

1.5 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-15 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 15 V DC 2 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:1894085

30 W

264 V AC

15 V DC

Adjustable

230 V/AC115 V/AC

1 x

2 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-30-12 Rail mounted PSU (DIN) 12 V DC 2 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:1894086

24 W

264 V AC

12 V DC

Adjustable

230 V/AC115 V/AC

1 x

2 A

Rail mounted PSU (DIN)

85 V AC

MEAN WELL HDR-100-48 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V DC 1.92 A 92.2 W No. of outputs:1 x Content 1 pc(s)

Item no:1894087

92.2 W

264 V AC

48 V DC

Adjustable

230 V/AC115 V/AC

1 x

1.92 A

Rail mounted PSU (DIN)

85 V AC

Documents & Downloads

Datasheet

Datasheet 1837893 MEAN WELL DRA-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1837893 MEAN WELL DRA-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Conformity certificate

Conformity certificate 1837893 MEAN WELL DRA-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1837893 MEAN WELL DRA-60-24 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Description

In addition to the usual functions of DIN rail power supplies, such as the output voltage adjustment, the series DRA-40 also has an output power adjustment. Thus, the output current can be adjusted through external voltage 1-10 V DC, PWM signal or resistance and offers the user to provide flexibility.
You can on TS-35/7.5 or TS-35/15 DIN rail mounted, have a 90-264 V AC input voltage range and 12 or 24 V DC output voltage. Thanks to its high efficiency of up to 87%, the power supplies also in ambient temperatures from -30°C to +70°C with simple air convection.
Other features are short-circuit, overload and overvoltage protection and an LED display for power on.
The power supply units are certified in accordance with UL/CUL/CB/TÜV/CE and meet the requirements of IEC 60950-1 limited power source (LPS). Suitable applications are machine test systems and plant cultivation systems with LED light source.

This text is machine translated.

Features

Directly on the DIN-rail mountable
Closed design, touch-proof screw terminals
Universal input
Output voltage can be set via built-in potentiometer
Output current adjustable via external 1...10 VDC, PWM signal of the resistance.
Overload protection through current limitation, auto recovery
Protected against short circuit, overload, over voltage
LED display for power-on
