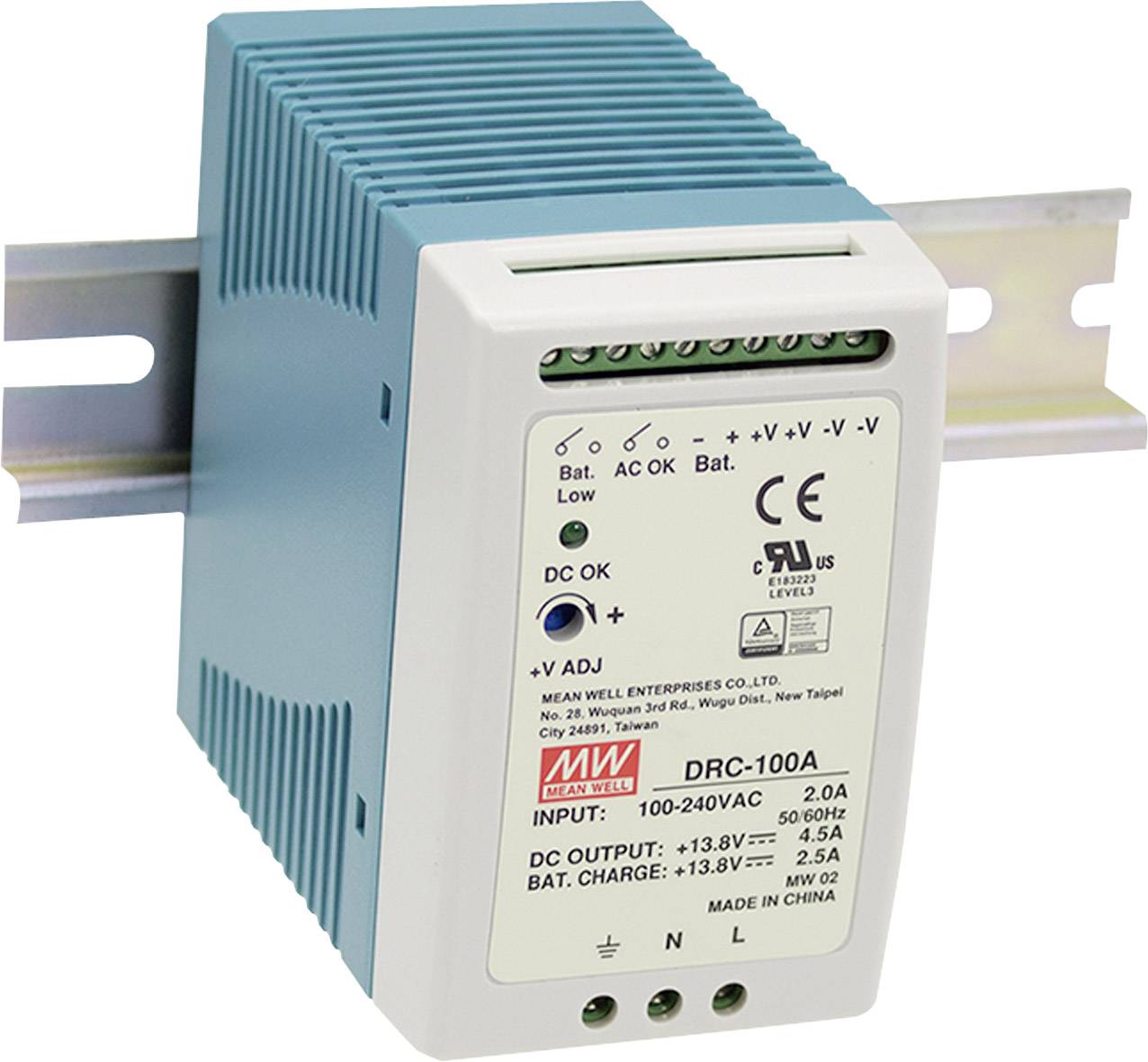

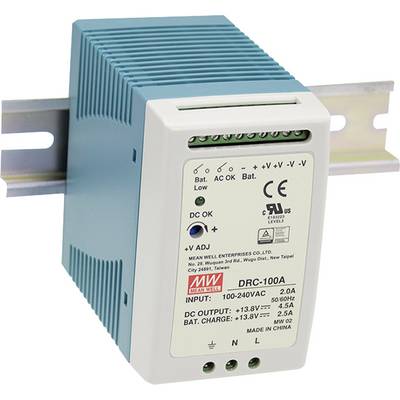

MEAN WELL DRC-100A Rail mounted PSU (DIN) 13.8 V DC 4.5 A 96 W No. of outputs:2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Switching power supply DIN-rail
Technical specifications
- Type
Synchronised
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
90 V AC
- Output voltage
27.6/27.6 V
- Input voltage (max.)
264 V AC
- Max. output current
4.5 A
- Output current (max.) - rounded
4.5 A
96 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
13.8 V DC
- No. of outputs
2 x
- Connection
Screw terminal
- Dim
(L x W x H) 55 x 90 x 100 mm
- Weight
370 g
- Output voltage (max.)
13.8 V DC
- Output voltage (min.)
12 V DC
- Manufacturer part #
DRC-100A
- Content
1 pc(s)
- PSU features
Surge protection
incl. UPS function
- Width
90 mm
- Height
100 mm
- Length
55 mm
- Type
DRC-100A
- Efficiency
87 %
- No. of inputs
1 x
- Output current (details)
2.25/1.25 A
- Type
switched-mode
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1371684 MEAN WELL DRC-100A Rail mounted PSU (DIN) 13.8 V DC 4.5 A 96 W No. of outputs:2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1371684 MEAN WELL DRC-100A Rail mounted PSU (DIN) 13.8 V DC 4.5 A 96 W No. of outputs:2 x Content 1 pc(s)
Information
Information 1371684 MEAN WELL DRC-100A Rail mounted PSU (DIN) 13.8 V DC 4.5 A 96 W No. of outputs:2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1371684 MEAN WELL DRC-100A Rail mounted PSU (DIN) 13.8 V DC 4.5 A 96 W No. of outputs:2 x Content 1 pc(s)
Description
Switching power supply in case enclosure, direct assembly on DIN rail with battery charger (UPS function) and an input voltage range of 90-264 V/AC.
Features
- direct assembly on DIN rail
- case, touch-guard screw terminals
- universal input
- overload protection, pulsing hiccup shutdown, auto recovery
- protections: short circuit/over load/over voltage
- battery low protection
- battery polarity protection by fuse
- Power fail signal
- battery low signal
