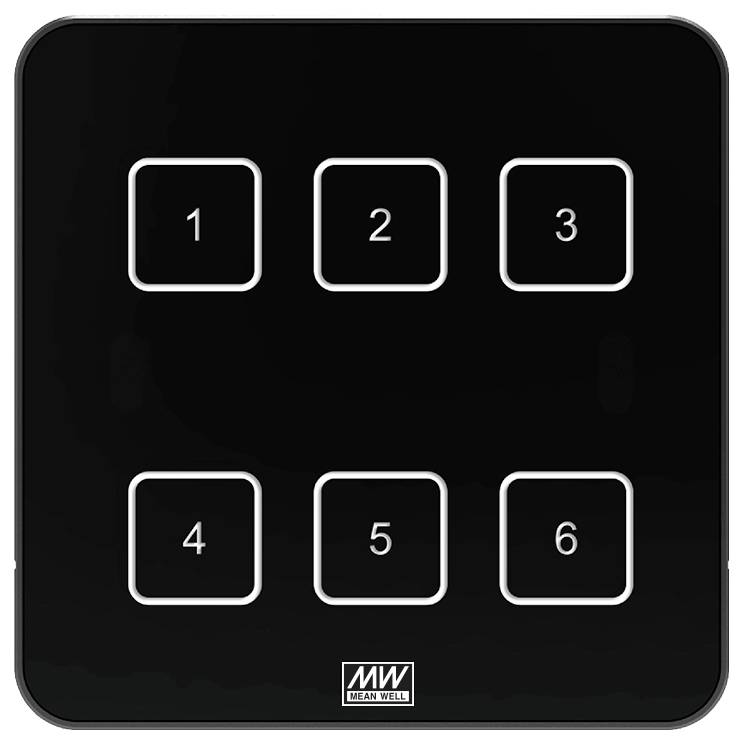

MEAN WELL DTP-206-E PLC touch panel
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Min. Input voltage DC 9.5 V.
- Max. Input voltage DC 22.5 V.
- Connector type, input: Plug-in terminal
- Product type
PLC touch panel
- Type
DTP-206-E
- Manufacturer part #
DTP-206-E
- Height
26.5 mm
- Length
120 mm
- Width
70 mm
- Dim
(L x W x H) 120 x 70 x 26.5 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3557748 MEAN WELL DTP-206-E PLC touch panel
User & Safety Instructions
User & Safety Instructions 3557748 MEAN WELL DTP-206-E PLC touch panel
Description
The DTP-2XX series complies with the DALI 1EC62386 standard as a DALI-2 input device, is powered via the DALI bus and has a variety of buttons. It is equipped with hardened glass and a sliding cover. The cover is easy to install and can also be provided with individually laser-engraved symbols. An integrated toggle switch enables the setting of the key illumination and the volume, so that the users can adjust the settings according to their needs. This touch panel can be used with the Mean Well DLC-02 DALI controller, an LED power supply and various DALI sensors to form a DALI-2 digital lighting system that can be used to turn on/off, color temperature, color, brightness, scenes, Control groupings, schedules, and various event adjustments to meet most lighting control requirements. If you need a digital DALI lighting solution, please contact a Mean Well sales representative.
This text is machine translated.
This text is machine translated.
Hints
Compatible with DALI-2 controllers - power supply via DALI bus - compatible with the Mean Well DLC-02 DALI controller and programmable via the Mean Well DLC software.
