MEAN WELL EPP-200-12 SMPSU 12.6 V DC 16.7 A 200.4 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

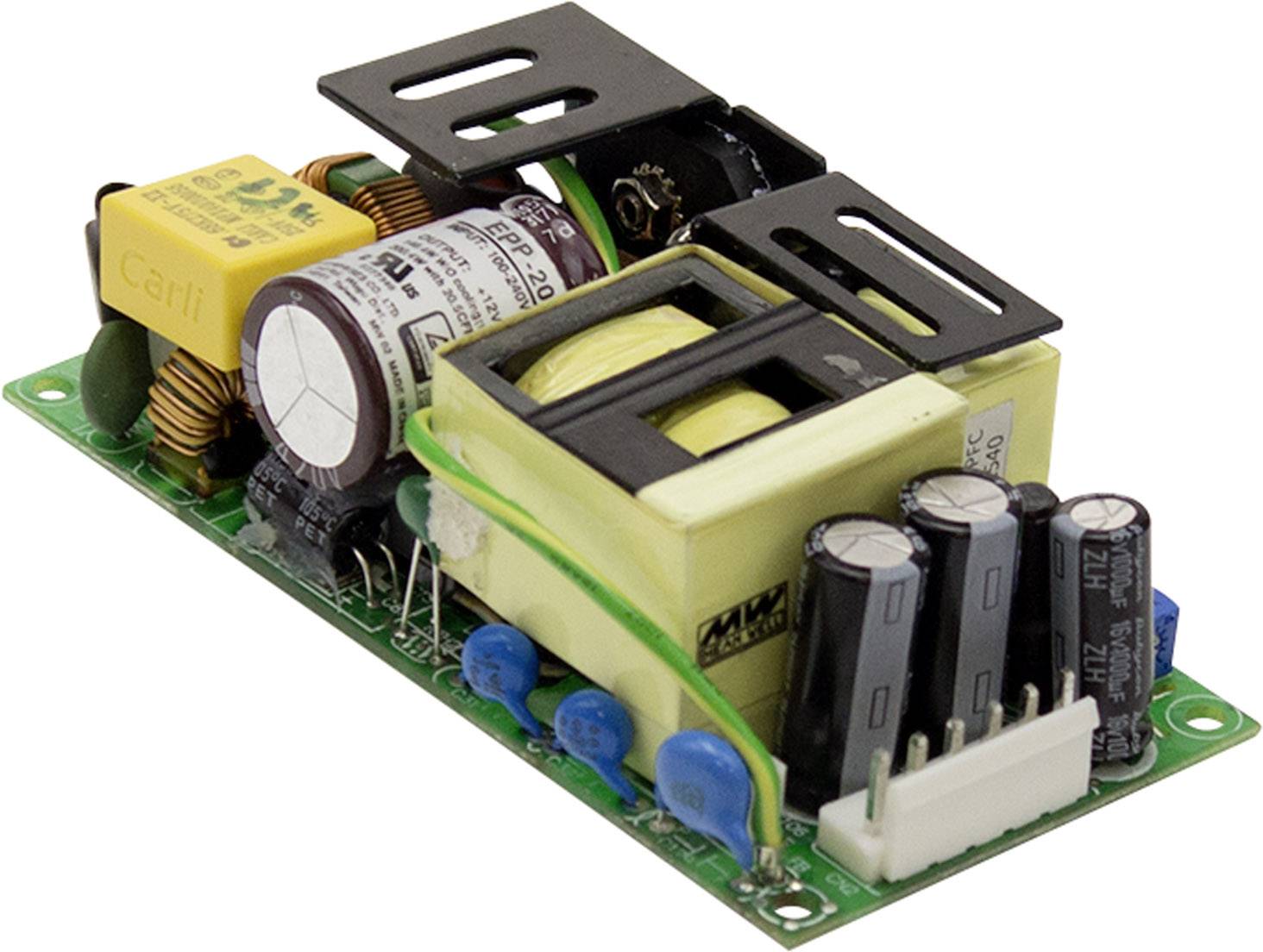

MEANWELL power supply series EPP-200 open-frame Single Output Power: 200 W
- Output 12.6 V DC / 16.7 A
- Power 200.4 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
16.7 A
- Output current (max.) - rounded
16.7 A
- Min. input voltage
80 V AC
113 V DC
- Dim
(L x W x H) 101.6 x 50.8 x 29 mm
- Output voltage (max.)
12.6 V DC
- Connection
Pin strip for nylon crimp connectors
200.4 W
- No. of outputs
1 x
- Type
open
- Weight
190 g
- PSU features
Adjustable voltage output
- Type
Pulsed
- Width
50.8 mm
- Height
29 mm
- Length
101.6 mm
- Type
EPP-200-12
- MTBF
500200 h
- Output voltage (min.)
11.4 V DC
- No. of inputs
1 x
- PFC
Yes (built-in)
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1838009 MEAN WELL EPP-200-12 SMPSU 12.6 V DC 16.7 A 200.4 W
User & Safety Instructions
User & Safety Instructions 1838009 MEAN WELL EPP-200-12 SMPSU 12.6 V DC 16.7 A 200.4 W
Warranty Terms
Warranty Terms 1838009 MEAN WELL EPP-200-12 SMPSU 12.6 V DC 16.7 A 200.4 W
Description
Features
- Open design (open frame)
- Compact design, 4'' x 2''
- Pin strip connections for nylon crimp connectors
- Universal input
- 140 W with free air convection, 200W with 10 CFM forced ventilation
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Built-in PFC circuit
- Low idle power
- Internal auxiliary voltage 12 V/0.5A
