Buy MEAN WELL EPP-400-48 SMPSU 50.4 V DC 8.4 A 403.2 W, 254.4 W

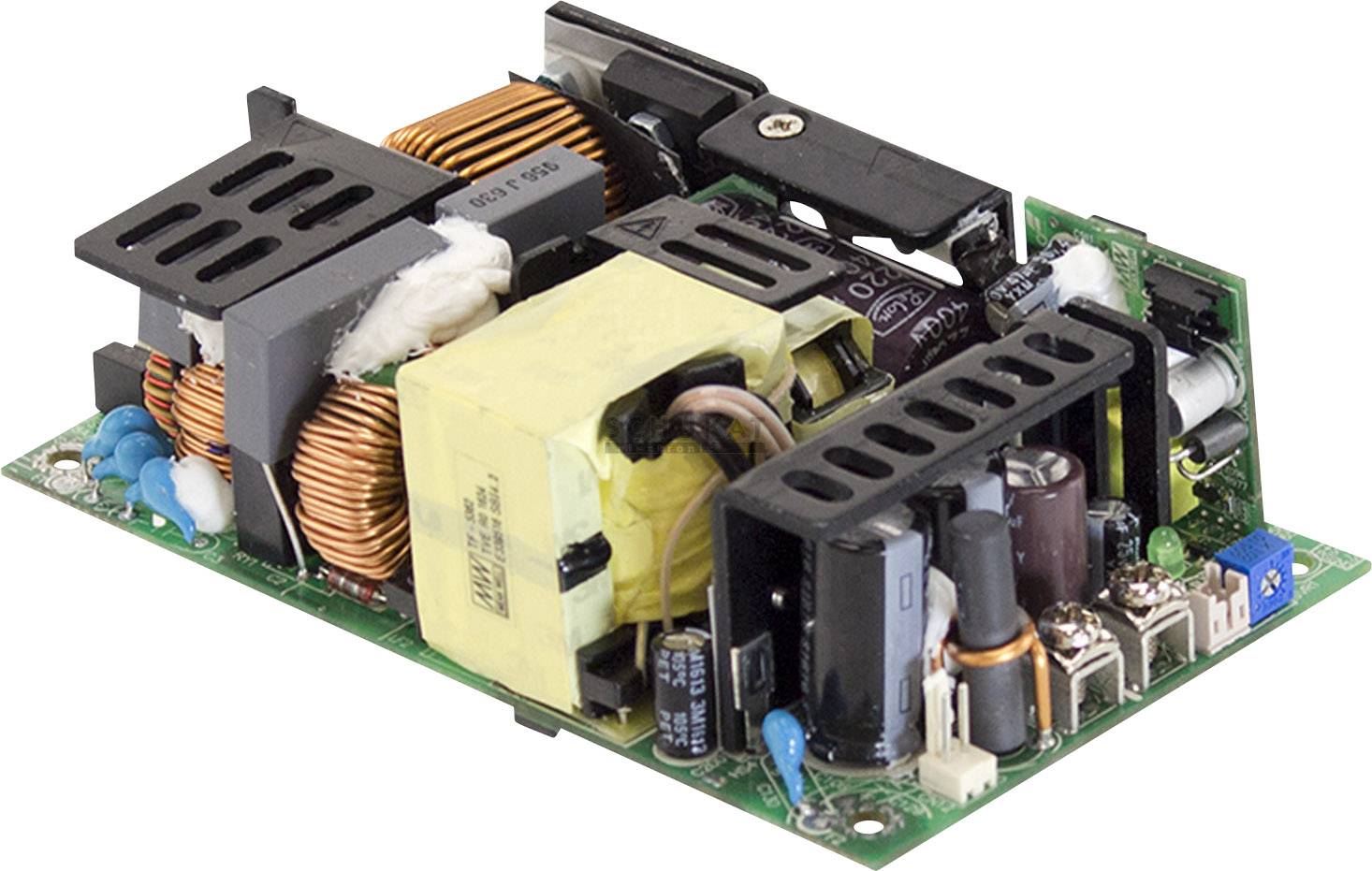

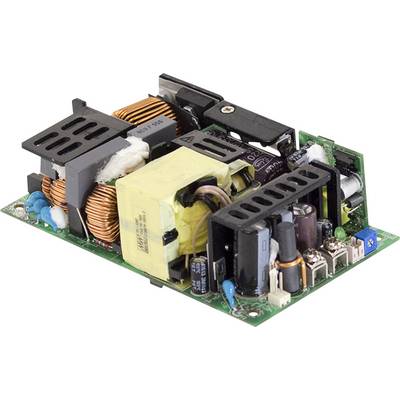

The image shows an electronic circuit with capacitors and inductors on a green printed circuit board.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MEANWELL power supply series EPP-400 open-frame Single Output Power: 400 W

Output 50.4 V DC / 8.4 A
Power 403.2 W, 254.4 W
Pin strip for nylon crimp connectors

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 8.4 A

Output current (max.) - rounded: 8.4 A

Min. input voltage: 80 V AC
113 V DC

Dim: (L x W x H) 127 x 76.2 x 35 mm

Output voltage (max.): 50.4 V DC

Connection: Pin strip for nylon crimp connectors

: 403.2 W
254.4 W

No. of outputs: 1 x

Type: open

Weight: 390 g

PSU features: Adjustable voltage output

Type: Pulsed

Width: 76.2 mm

Height: 35 mm

Length: 127 mm

Type: EPP-400-48

MTBF: 194100 h

Output current (min.): 5.3 A

Output voltage (min.): 45.6 V DC

No. of inputs: 1 x

PFC: Yes (built-in)

Max. temperature: +70 °C

Min. temperature: -30 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1838013 MEAN WELL EPP-400-48 SMPSU 50.4 V DC 8.4 A 403.2 W, 254.4 W

User & Safety Instructions

User & Safety Instructions 1838013 MEAN WELL EPP-400-48 SMPSU 50.4 V DC 8.4 A 403.2 W, 254.4 W

Warranty Terms

Warranty Terms 1838013 MEAN WELL EPP-400-48 SMPSU 50.4 V DC 8.4 A 403.2 W, 254.4 W

Description

Mean corrugated has the EPP family with the power supplies EPP-400 (400 W).
The power supplies have a compact open frame design of only 4'' x 2' or 5'' x 3''. The switched-mode power supplies of the series EPP-400 have a low idle power of 0.5W, a high efficiency of up to 94% and a built-in PFC circuit.
Suitable applications are industrial electrical equipment, electro-mechanical instruments, factory automation systems or electronic devices that require low idle power.
