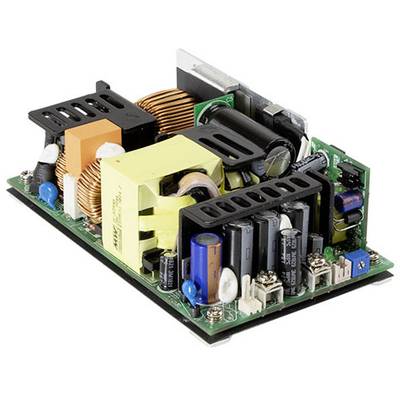

MEAN WELL EPP-500-48 SMPSU 48 V DC 10.4 A 499.2 W
EAN:
Part number:
Item no:
Datasheet (PDF)
10 Piece(s)
Sales and shipping:
Number
Total (€ 88.23 / piece)
€
Only 10 Piece(s) available
Highlights & Details
MEAN CORRUGATED switched-mode power supply series EPP-500 open-frame Single Output Power: 500 W
- Output 48 V DC / 10.4 A
- Power 499.2 W
- Pin strip for nylon crimp connectors
Technical specifications
- Max. output current
10.4 A
- Output current (max.) - rounded
10.4 A
- Dim
(L x W x H) 127 x 76.2 x 40 mm
- Height
40 mm
- Length
127 mm
- Width
76.2 mm
- Connection
Pin strip for nylon crimp connectors
- Type
open
- PSU features
Adjustable voltage output
- Type
EPP-500-48
- MTBF
194100 h
- Input voltage (max.)
264 V AC
370 V DC
- Min. input voltage
80 V AC
113 V DC
- Output voltage (max.)
48 V DC
- Output voltage (min.)
48 V DC
- No. of inputs
1 x
- No. of outputs
1 x
499.2 W
- Type
Pulsed
- PFC
Yes
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- Weight
460 g
- Product type
SMPSU
Documents & Downloads
Datasheet
Datasheet 2142574 MEAN WELL EPP-500-48 SMPSU 48 V DC 10.4 A 499.2 W
User & Safety Instructions
User & Safety Instructions 2142574 MEAN WELL EPP-500-48 SMPSU 48 V DC 10.4 A 499.2 W
Warranty Terms
Warranty Terms 2142574 MEAN WELL EPP-500-48 SMPSU 48 V DC 10.4 A 499.2 W
Description
Features
- Compact design, 5'' x 3''
- Pin strip connections for nylon crimp connectors
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Built-in PFC circuit
- Low idle power
- Internal auxiliary voltage 12 V/0.5A
- LED display for the switching on
Hints
These power supplies are designed for installation in devices.
