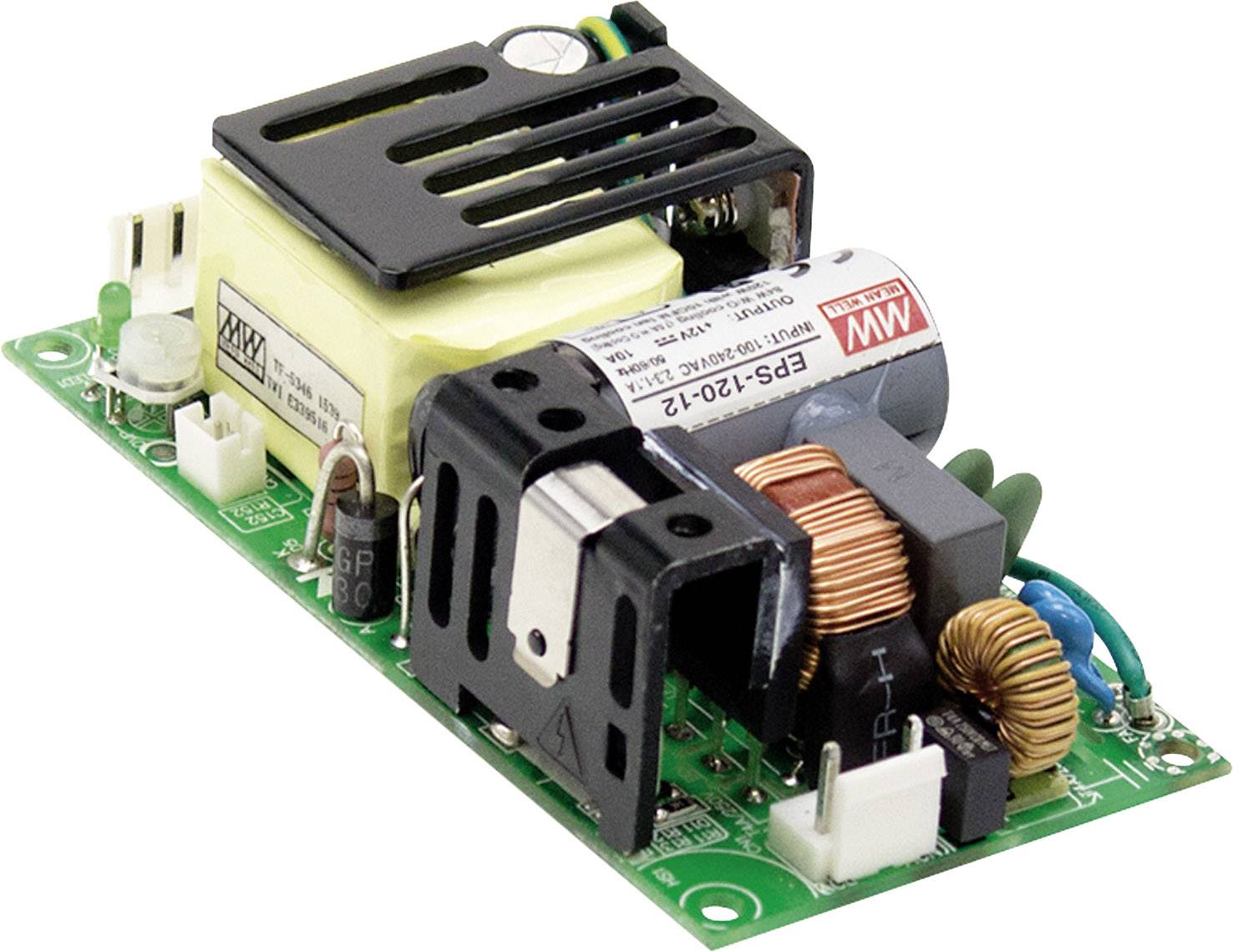

MEAN WELL EPS-120-12 SMPSU 12.6 V DC 10 A 120 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL power supply series EPS-120 open-frame Single Output Power: 120 W
- Output 12.6 V DC / 10 A
- Power 120 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
- Min. input voltage
80 V AC
113 V DC
- Dim
(L x W x H) 101.6 x 50.8 x 29 mm
- Output voltage (max.)
12.6 V DC
- Connection
Pin strip for nylon crimp connectors
120 W
- No. of outputs
1 x
- Type
open
- Weight
150 g
- PSU features
Adjustable voltage output
- Type
Pulsed
- Width
50.8 mm
- Height
29 mm
- Length
101.6 mm
- Type
EPS-120-12
- MTBF
653500 h
- Output current (min.)
0 A
- Output voltage (min.)
11.4 V DC
- No. of inputs
1 x
- PFC
No
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1838120 MEAN WELL EPS-120-12 SMPSU 12.6 V DC 10 A 120 W
User & Safety Instructions
User & Safety Instructions 1838120 MEAN WELL EPS-120-12 SMPSU 12.6 V DC 10 A 120 W
Warranty Terms
Warranty Terms 1838120 MEAN WELL EPS-120-12 SMPSU 12.6 V DC 10 A 120 W
Description
In order to meet the requirements of the industrial and control market for ever-smaller and energy-saving power supplies for installation in electronics products, has mean corrugated the series EPS-120 (120 W) in 4 x 2 inch size was introduced. The series EPS-120 offers a very low power consumption of less than 0,3W and a 1 HE, low-profile design (only 29 mm high). The efficiency is 91%, with 84 W with free air circulation and 120 W with 10 CFM forced ventilation. The series is protected against short circuit, overload, over voltage and over temperature.
Suitable applications of the series EPS-120 from mean corrugated are switching cabinet systems, industrial electronic devices, electro-mechanical instruments, factory automation systems and electronic devices which have a low idle power demand.
This text is machine translated.
Suitable applications of the series EPS-120 from mean corrugated are switching cabinet systems, industrial electronic devices, electro-mechanical instruments, factory automation systems and electronic devices which have a low idle power demand.
This text is machine translated.
Features
- Open design (open frame)
- Compact design, 4'' x 2''
- Pin strip connections for nylon crimp connectors
- Universal input
- 84 W with free air convection, 120W with 10 CFM forced ventilation
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Low idle power
